AIR CLEANER ('80-'81 A1/A2)
KZ550A4 1983 USA CANADA

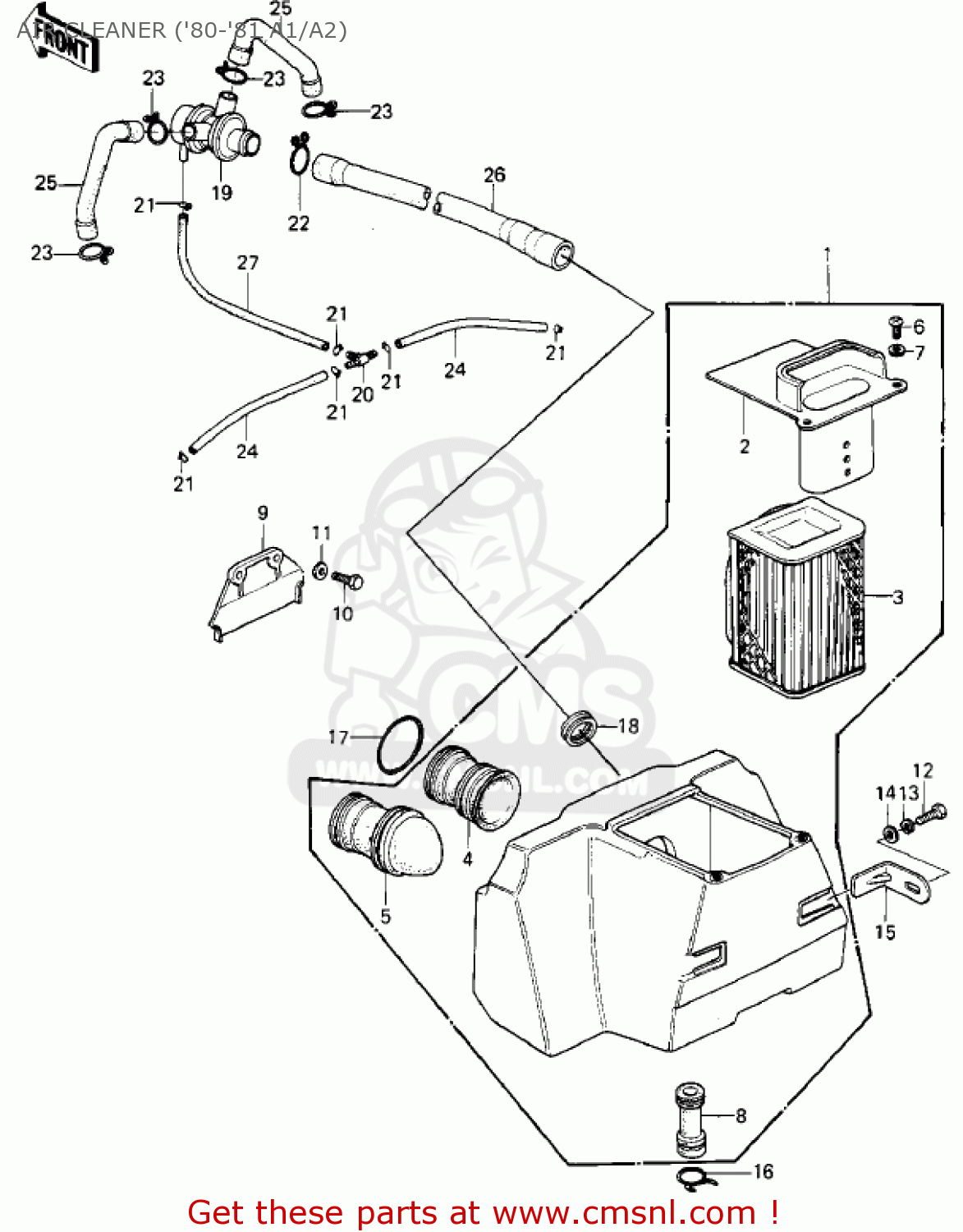

Air cleaner ('80-'81 a1/a2) diagram KZ550A4 1983 USA CANADA
AIR CLEANER ('80-'81 A1/A2) KZ550A4 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110101103
ref: 1
AIR FILTER ASSEMBLY
€ 164.00
1
110101054
ref: 1
USE FOR CANADA MARKE
AIR CLEANER ASSY
€ 257.50
2
110121183
ref: 2
CAP,AIR FILTER
€ 13.00
3
110131013
ref: 3
ELEMENT-AIR FILTER
€ 17.50
4
11015057
ref: 4
DUCT,AIR FILTER,#2&3
€ 14.00
5
11015063
ref: 5
DUCT,AIR FILTER,#1&4
€ 21.00
6
220B0612
ref: 6
SCREW-PAN HEAD,6X12
€ 1.00
7
410B0600
ref: 7
WASHER-PLAIN-SMALL,6M
€ 0.50
8
920591200
ref: 8
TUBE,BREATHER,10X63L
€ 8.50
9
11019003
ref: 9
BAFFLE PLATE,AIR FILT
€ 8.50
10
112G0618
ref: 10
BOLT-UPSET
€ 0.50
11
411B0600
ref: 11
WASHER-PLAIN,6MM
€ 0.50
12
112G0612
ref: 12
BOLT-UPSET
€ 2.50
13
461F0600
ref: 13
WASHER-SPRING,6MM
€ 0.50
14
411B0600
ref: 14
WASHER-PLAIN,6MM
€ 0.50
15
32070038
ref: 15
BRACKET,AIR FILTER
€ 3.50
16
92037028
ref: 16
CLAMP,TUBE
€ 2.50
17
92081047
ref: 17
SPRING,COIL
€ 7.50
18
920711013
ref: 18
USE FOR 11010-1022
GROMMET,AIR CLEANER
€ 4.00
19
161261017
ref: 19
VALVE,AIR SWITCH
€ 183.00
20
920051017
ref: 20
FITTING,TUBE
€ 6.50
21
92037072
ref: 21
CLAMP,TUBE
€ 4.00
22
920371076
ref: 22
CLAMP,TUBE
€ 4.00
23
92037213
ref: 23
USE FOR U.S.A. MARKE
CLAMP, BREATHER TUBE
€ 2.50
24
920591162
ref: 24
TUBE, VACUUM, LONG
€ 12.50
25
920591034
ref: 25
TUBE
€ 11.50
26
920591039
ref: 26
TUBE,19X21X340L
€ 16.00
27
920591040
ref: 27
TUBE,4X9X220L
€ 7.00
