STARTER MOTOR/STARTER CLUTCH ('8
KZ550A4 1983 USA CANADA

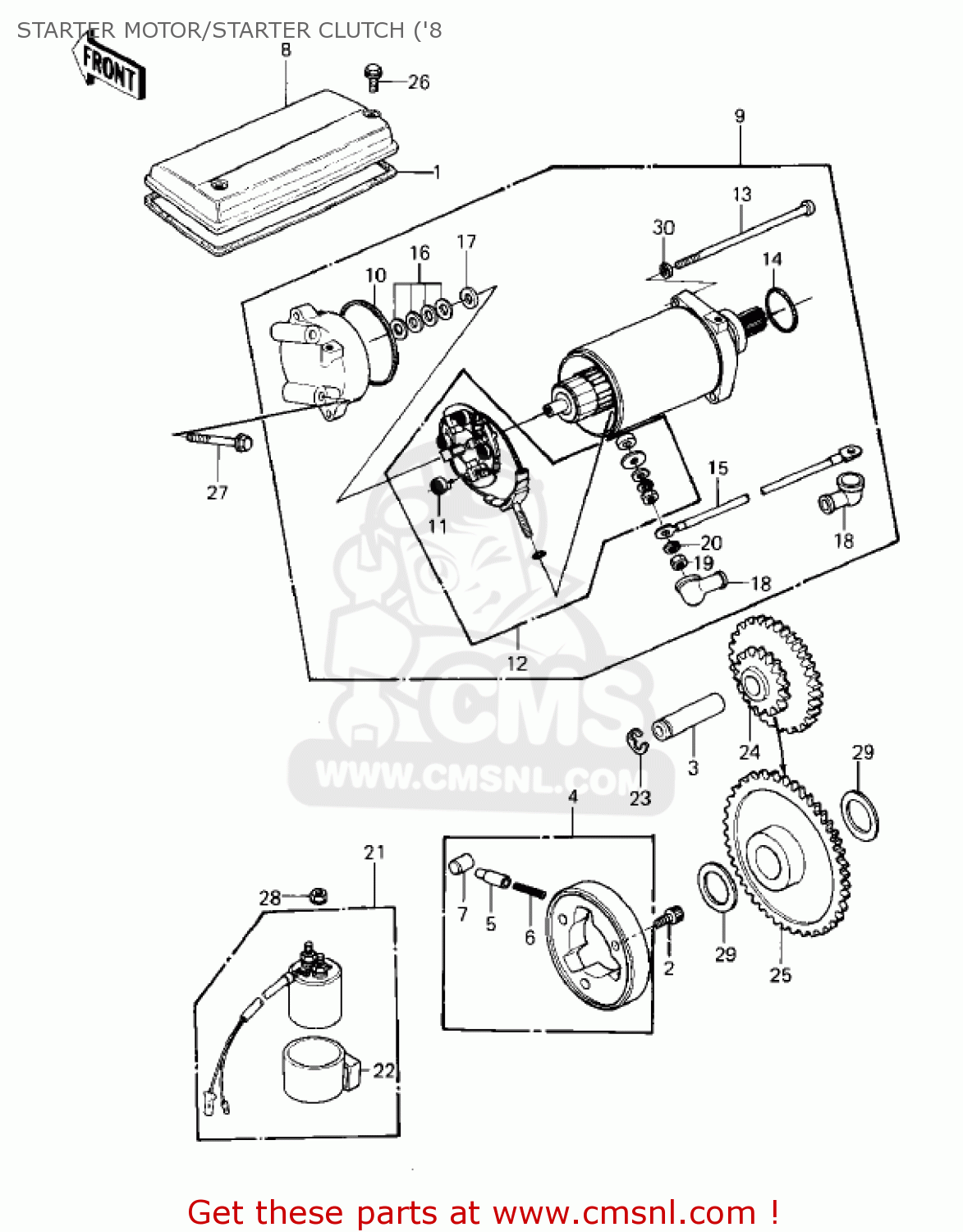

Starter motor/starter clutch ('8 diagram KZ550A4 1983 USA CANADA
STARTER MOTOR/STARTER CLUTCH ('8 KZ550A4 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110091069
ref: 1
GASKET,STARTER MOTOR (MCA)
€ 8.00
2
920011424
ref: 2
BOLT,SOCKET,8X10
€ 3.00
3
131071006
ref: 3
SHAFT,STARTER IDLE
€ 7.00
4
131931002
ref: 4
CLUTCH-ASSY-ONEWAY
€ 96.00
5
92043132
ref: 5
PIN
€ 4.00
6
92081159
ref: 6
SPRING, COIL
€ 2.50
7
92122006
ref: 7
ROLLER
€ 4.00
8
140251050
ref: 8
COVER,STARTER MOTOR
€ 16.00
9
211631031
ref: 9
STARTER-ELECTRIC
€ 427.50
10
920551086
ref: 10
O RING,64MM
€ 6.50
11
210401002
ref: 11
SPRING-BRUSH
€ 5.50
12
210391005
ref: 12
BRUSH,CARBON
€ 112.50
13
21015005
ref: 13
SCREW-PAN HEAD,6X110
€ 5.50
14
21027004
ref: 14
ORING-STARTING MOTR
€ 6.50
15
260111073
ref: 15
WIRE-LEAD,STARTER MOT
€ 41.00
16
21025011
ref: 16
WASHER, THRUST, 0.2T
€ 4.00
17
920221132
ref: 17
WASHER,9.1X18X0.8
€ 4.00
18
21017017
ref: 18
GROMMET-CORD
€ 6.50
19
312B0600
ref: 19
NUT,6MM
€ 0.50
20
461F0600
ref: 20
WASHER-SPRING,6MM
€ 0.50
21
21164005
ref: 21
SWITCH ASSY,MAGNETIC
€ 99.00
22
21064002
ref: 22
DAMPER,MAGNETIC SWITC
€ 13.50
23
482K0200
ref: 23
CIRCLIP-TYPE-E,12MM
€ 0.50
24
590511011
ref: 24
GEAR-SPUR,STARTER IDL
€ 102.50
25
160851030
ref: 25
GEAR,ONEWAY CLUTCH
€ 97.50
26
920011151
ref: 26
BOLT,6X10
€ 3.00
27
92003110
ref: 27
BOLT-HEX HEAD,6X54
€ 1.50
28
920151078
ref: 28
NUT,6M/M
€ 1.50
29
920261025
ref: 29
SPACER,25X36X3.2
€ 3.50
30
461F0500
ref: 30
WASHER-SPRING,5MM
€ 0.50
