AIR CLEANER ('82-'83 A3/A4)
KZ550A4 1983 USA CANADA

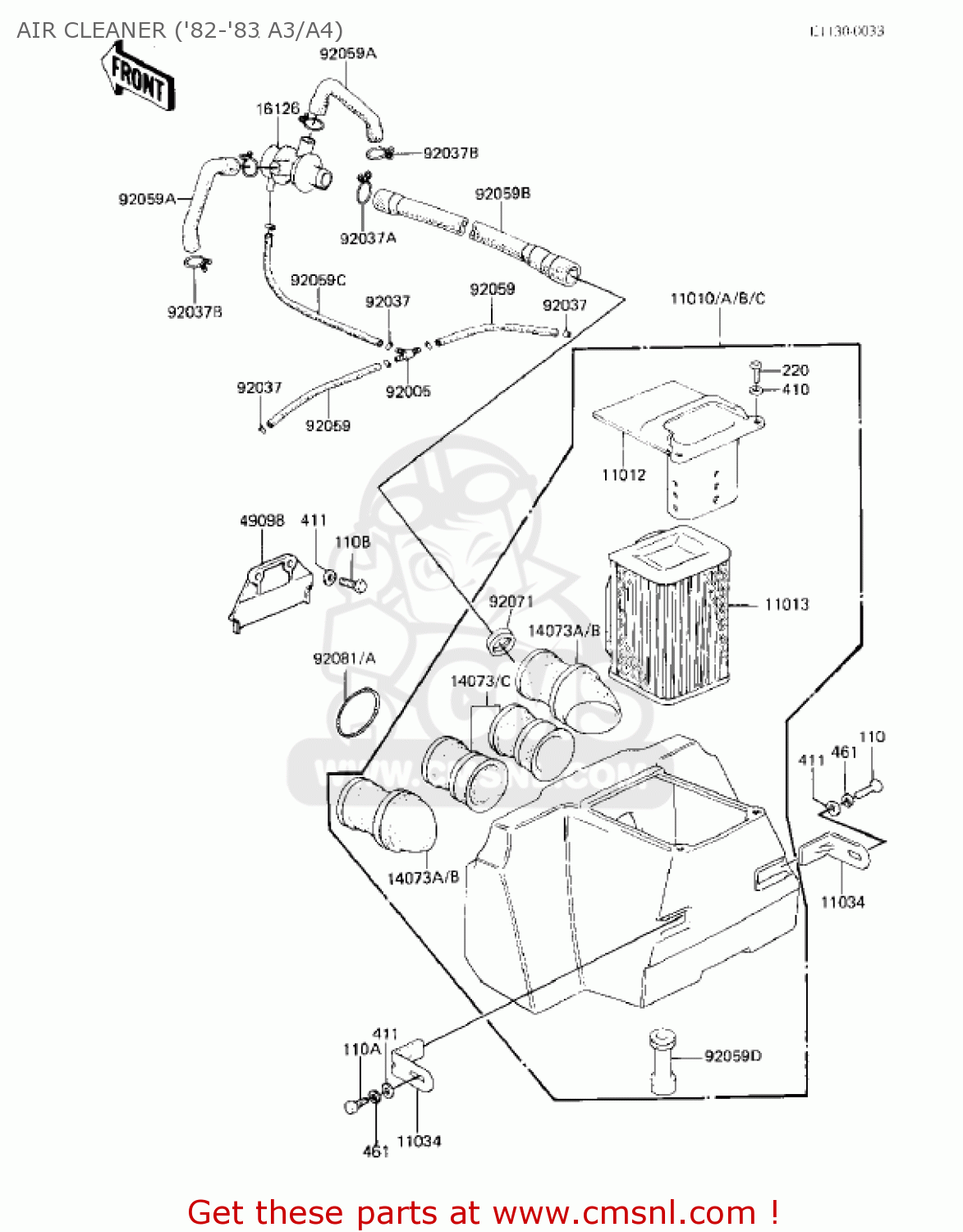

Air cleaner ('82-'83 a3/a4) diagram KZ550A4 1983 USA CANADA
AIR CLEANER ('82-'83 A3/A4) KZ550A4 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11010
110101103
ref: 11010
US
AIR FILTER ASSEMBLY
€ 164.00
11010A
110101104
ref: 11010A
CN
FILTER-ASSY-AIR
€ 257.50
11010B
110101160
ref: 11010B
US
AIR FILTER ASSEMBLY,AP
€ 119.50
11010C
110101161
ref: 11010C
CN
FILTER-ASSY-AIR,NO-AP (Canada)
€ 0.00
11012
110121183
ref: 11012
CAP,AIR FILTER
€ 13.00
11013
110131013
ref: 11013
ELEMENT-AIR FILTER
€ 17.50
11034
32070038
ref: 11034
BRACKET,AIR FILTER
€ 3.50
14073
11015057
ref: 14073
DUCT,AIR FILTER,#2&3
€ 14.00
14073A
11015063
ref: 14073A
DUCT,AIR FILTER,#1&4
€ 21.00
14073B
140731073
ref: 14073B
DUCT,AIR FILTER,#1&4
€ 20.50
14073C
140731095
ref: 14073C
AIR FILTER DUCT,#2 & #3
€ 9.50
16126
161261017
ref: 16126
US
VALVE,AIR SWITCH
€ 183.00
49098
11019003
ref: 49098
BAFFLE PLATE,AIR FILT
€ 8.50
92005
920051017
ref: 92005
US
FITTING,TUBE
€ 6.50
92037
92037072
ref: 92037
US
CLAMP,TUBE
€ 4.00
92037A
920371076
ref: 92037A
US
CLAMP,TUBE
€ 4.00
92037B
92037213
ref: 92037B
US
CLAMP, BREATHER TUBE
€ 2.50
92059
920591162
ref: 92059
US
TUBE, VACUUM, LONG
€ 12.50
92059A
920591034
ref: 92059A
US
TUBE
€ 11.50
92059B
920591039
ref: 92059B
US
TUBE,19X21X340L
€ 16.00
920590
920591040
ref: 920590
US
TUBE,4X9X220L
€ 7.00
92059D
920591200
ref: 92059D
TUBE,BREATHER,10X63L
€ 8.50
92071
920711013
ref: 92071
US
GROMMET,AIR CLEANER
€ 4.00
92081
92081047
ref: 92081
SPRING,COIL
€ 7.50
92081A
921441771
ref: 92081A
SPRING,AIR FILTER DUC
€ 8.00
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
110A
112B0614
ref: 110A
BOLT-UPSET 6X14
€ 2.50
110B
112G0618
ref: 110B
BOLT-UPSET
€ 0.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
