CARBURETOR PARTS ('80-'81 A1/A2)
KZ550A4 1983 USA CANADA

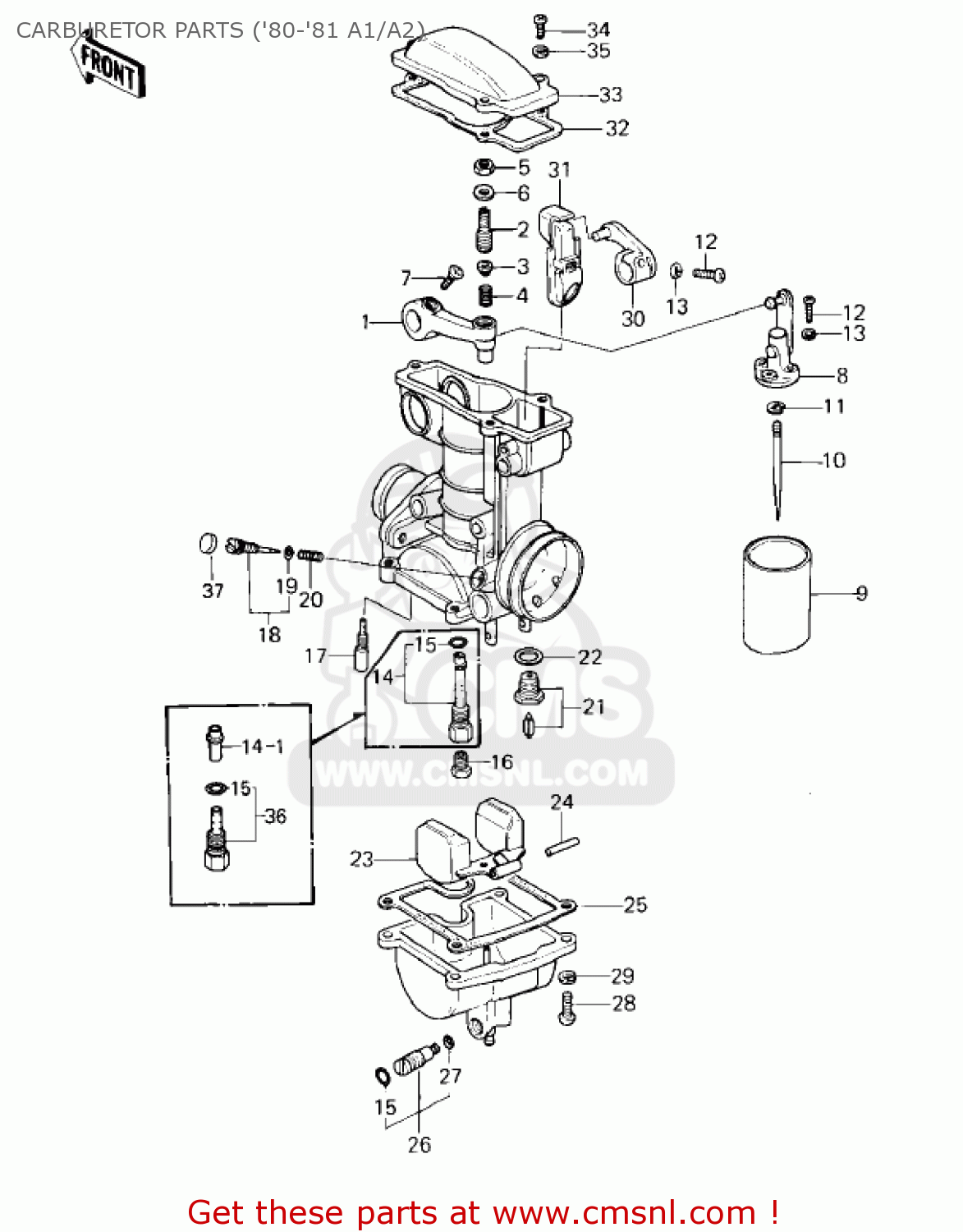

Carburetor parts ('80-'81 a1/a2) diagram KZ550A4 1983 USA CANADA
CARBURETOR PARTS ('80-'81 A1/A2) KZ550A4 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
210831006
ref: 1
ARM,THROTTLE
€ 16.50
2
920091079
ref: 2
SCREW,ADJUST,THROTTLE
€ 6.00
3
920431065
ref: 3
PIN,SPRING,THROTTLE
€ 6.50
4
920811189
ref: 4
SPRING,THROTTLE ARM
€ 3.50
5
312B0500
ref: 5
NUT-HEX,5MM
€ 0.50
6
920221167
ref: 6
WASHER,PLAIN,5.1X1.5T
€ 2.50
7
920091080
ref: 7
SCREW,COUNTERSUNK HD
€ 2.50
8
110341587
ref: 8
BRACKET ASSY,THROTTLE
€ 45.00
9
160251038
ref: 9
VALVE,THROTTLE,CA2.5
€ 41.00
10
160091060
ref: 10
USE FOR 16001-1210
JET,NEEDLE,#4D92
€ 23.50
10
160091061
ref: 10
USE FOR 16001-1285
JET NEEDLE,#4D93
€ 24.00
11
920371157
ref: 11
CIRCLIP,JET NEEDLE
€ 2.50
12
220B0312
ref: 12
SCREW-PAN CROS,3X12
€ 2.00
13
461F0300
ref: 13
WASHER-SPRING,3MM
€ 0.50
14
160171044
ref: 14
USE FOR 16001-1285
JET-NEEDLE,#V95
€ 33.50
14-1
160171057
ref: 14-1
USE FOR 16001-1210
JET,NEEDLE,#V95
€ 30.00
15
920551069
ref: 15
RING-O
€ 1.00
16
920631055
ref: 16
JET-MAIN,#92
€ 11.50
17
920641028
ref: 17
JET-PILOT,#32
€ 13.00
18
160141024
ref: 18
USE FOR 16001-1210
AIR ADJUSTING SCREW
€ 5.50
18
160141019
ref: 18
USE FOR 16001-1285
SCREW,AIR ADJUSTING
€ 6.00
19
920551070
ref: 19
ORING,AIR SCREW
€ 3.00
20
920811190
ref: 20
SPRING,AIR SCREW
€ 3.50
21
160301009
ref: 21
VALVE-FLOAT,#1.6
€ 71.50
22
110091160
ref: 22
GASKET,FLOAT VALVE (NAS)
€ 4.00
23
160311009
ref: 23
FLOAT
€ 61.00
24
920431066
ref: 24
PIN,FLOAT
€ 2.50
25
110091161
ref: 25
GASKET,FLOAT CHAMBER (NAS)
€ 11.50
26
920661065
ref: 26
SCREW,DRAIN
€ 9.50
27
920551071
ref: 27
RING-O,OVERFLOW
€ 4.50
28
220B0416
ref: 28
SCREW-PAN-CROS
€ 2.00
29
461F0400
ref: 29
WASHER-SPRING,4MM
€ 0.50
30
210831007
ref: 30
ARM,CHOKE
€ 19.50
31
161261024
ref: 31
VALVE,CHOKE
€ 65.00
32
110091162
ref: 32
GASKET,MIXING CHAMP (NAS)
€ 12.00
33
160051008
ref: 33
TOP,MIXING CHAMBER
€ 25.50
34
220B0414
ref: 34
SCREW-PAN-CROS
€ 2.00
35
461F0400
ref: 35
WASHER-SPRING,4MM
€ 0.50
36
491221010
ref: 36
USE FOR 16001-1210
BLEED PIPE
€ 18.50
37
920661051
ref: 37
USE FOR 16001-1210
PLUG,PILOT AIR SCREW,
€ 3.00
