ENGINE COVERS ('80-'81 A1/A2)
KZ550A4 1983 USA CANADA

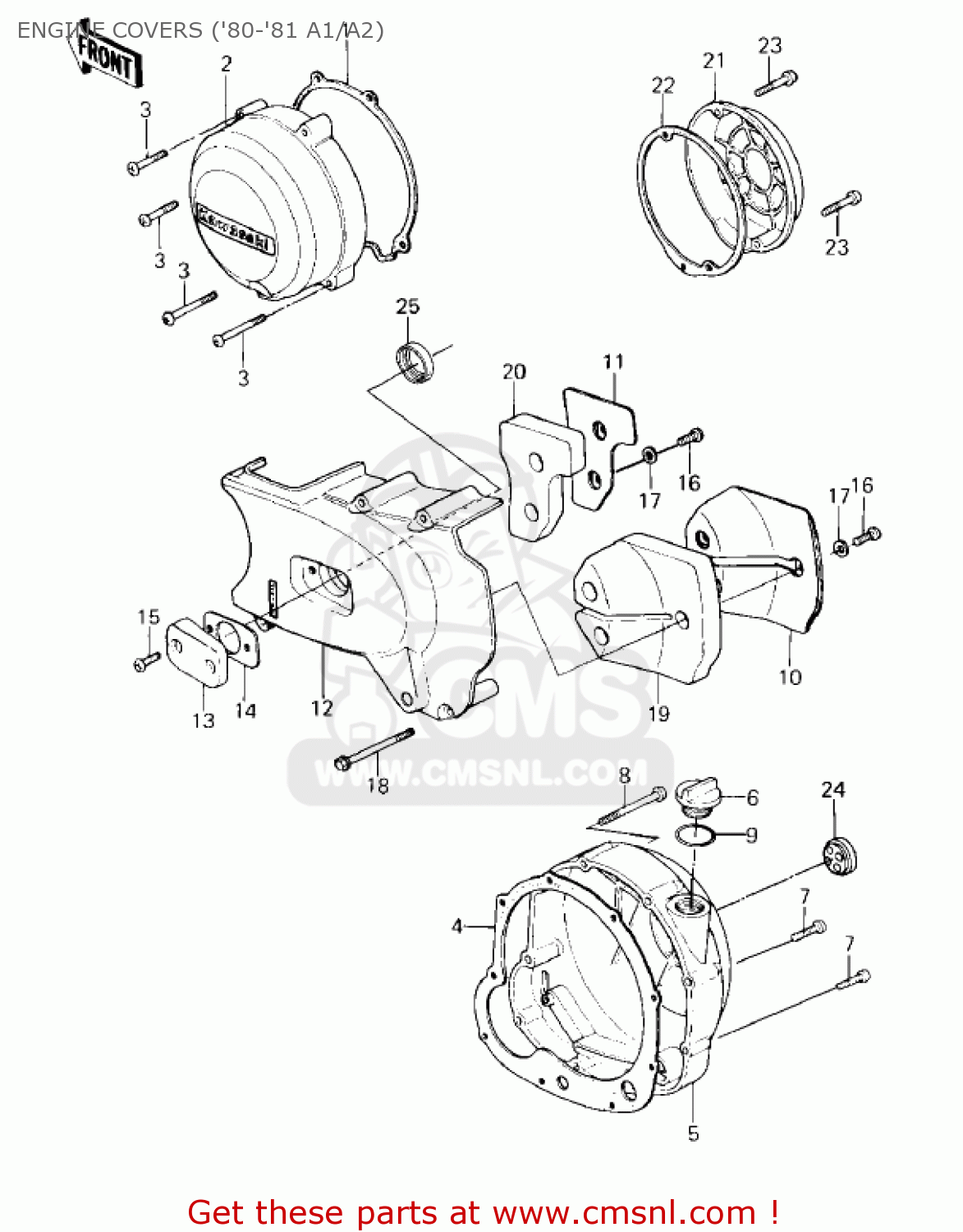

Engine covers ('80-'81 a1/a2) diagram KZ550A4 1983 USA CANADA
ENGINE COVERS ('80-'81 A1/A2) KZ550A4 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110601055
ref: 1
GASKET,GENERATOR COVE (NAS)
€ 7.00
2
140311014
ref: 2
COVER-GENERATOR
€ 214.50
3
220B0640
ref: 3
SCREW-PAN HEAD,6X40
€ 2.00
4
110601054
ref: 4
GASKET,CLUTCH COVER (NAS)
€ 16.00
5
140325004
ref: 5
COVER,CLUTCH,BUFF
€ 80.00
6
16115013
ref: 6
PLUG-OIL FILLER
€ 13.50
7
220B0630
ref: 7
SCREW-PAN HEAD,6X30
€ 2.50
8
220B0660
ref: 8
SCREW-PAN HEAD,6X60
€ 2.50
9
92055049
ref: 9
'0'RING,31MM
€ 2.50
10
140251115
ref: 10
COVER,SOUND ARRESTER
€ 23.50
11
140251116
ref: 11
COVER,SOUND ARRESTER
€ 16.50
12
140261015
ref: 12
USE FOR 13231-020
COVER,CHAIN
€ 95.50
12
140261047
ref: 12
USE FOR 13102-1008
COVER,CHAIN
€ 69.50
13
1402800680
ref: 13
CAP,CLUTCH ADJUSTING
€ 18.00
14
14049004
ref: 14
GASKET,CLUTCH ADJUST (MCA)
€ 4.00
15
220B0618
ref: 15
SCREW-PAN HEAD,6X18
€ 2.50
16
220B0612
ref: 16
SCREW-PAN HEAD,6X12
€ 1.00
17
410B0600
ref: 17
WASHER-PLAIN-SMALL,6M
€ 0.50
18
130G0670
ref: 18
BOLT-FLANGED,6X70
€ 0.50
19
920751158
ref: 19
DAMPER,CHAIN COVER
€ 18.50
20
920751159
ref: 20
DAMPER,CHAIN COVER
€ 13.00
21
110121098
ref: 21
CAP,PULSING COIL
€ 62.00
22
110601053
ref: 22
GASKET,PULSING COIL C (NAS)
€ 4.50
23
220B0630
ref: 23
SCREW-PAN HEAD,6X30
€ 2.50
24
520051009
ref: 24
GAUGE,OIL LEVEL
€ 12.00
25
920491003
ref: 25
USE FOR 14026-1041
OIL SEAL,CLUTCH
€ 8.00
