SEAT/SEAT COVERS ('80-'81 A1/A2)
KZ550A4 1983 USA CANADA

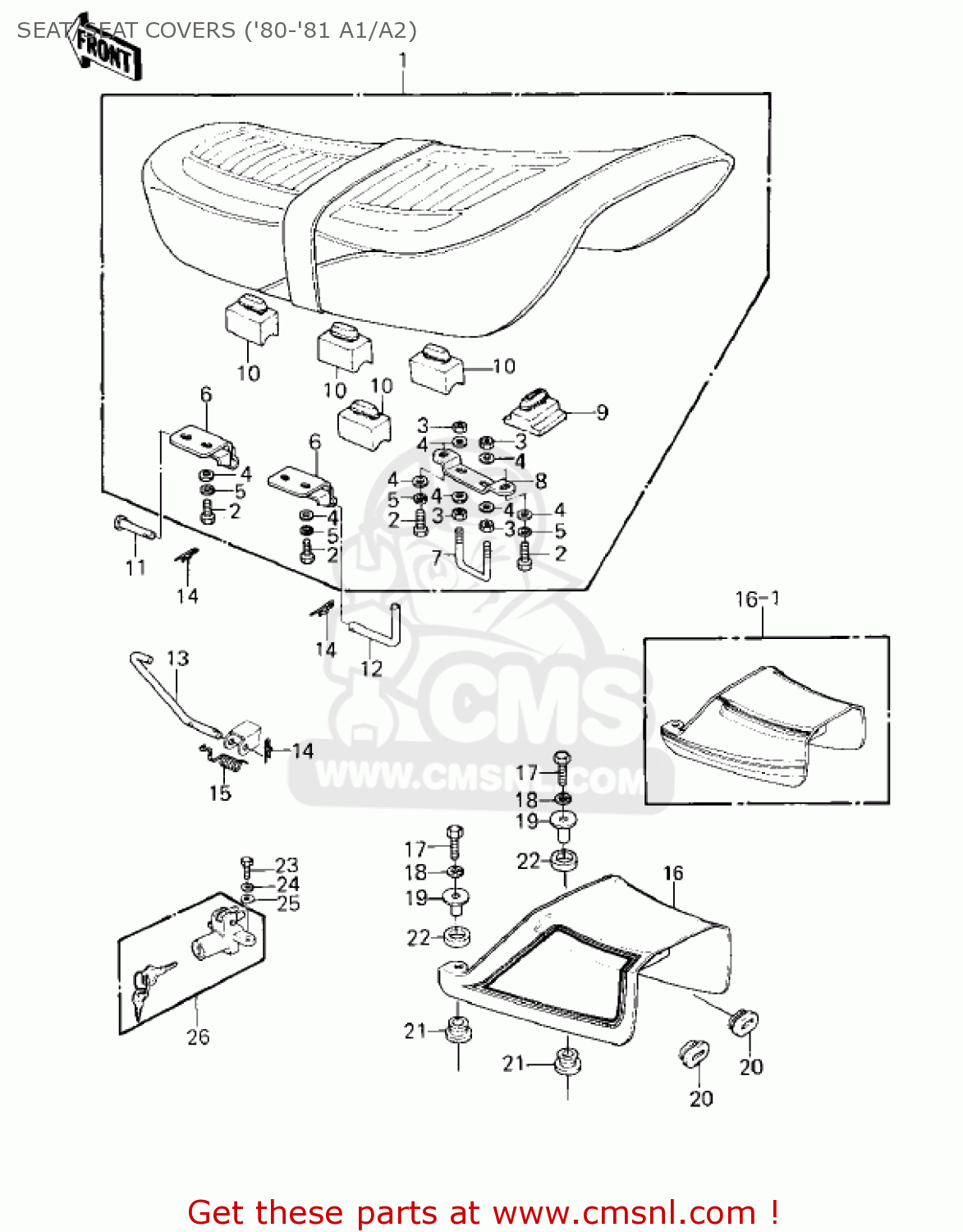

Seat/seat covers ('80-'81 a1/a2) diagram KZ550A4 1983 USA CANADA
SEAT/SEAT COVERS ('80-'81 A1/A2) KZ550A4 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
530011133
ref: 1
KZ550-A1
SEAT ASSY,DUAL
€ 635.50
1
530011133
ref: 1
KZ550-A2
SEAT ASSY,DUAL
€ 635.50
2
112B0614
ref: 2
BOLT-UPSET 6X14
€ 2.50
3
311B0600
ref: 3
NUT,6MM
€ 0.50
4
411B0600
ref: 4
WASHER-PLAIN,6MM
€ 0.50
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
530091010
ref: 6
HINGE,SEAT
€ 9.50
7
53056002
ref: 7
HOOK,SEAT
€ 11.50
8
53058001
ref: 8
BRACKET,SEAT CATCH
€ 6.00
9
920751061
ref: 9
DAMPER,SEAT
€ 6.00
10
92075156
ref: 10
DAMPER,SEAT
€ 6.50
11
53011002
ref: 11
PIN,6X48
€ 3.50
12
53011008
ref: 12
PIN,SEAT PIVOT
€ 4.00
13
53054001
ref: 13
STAY,SEAT
€ 7.50
14
554A0600
ref: 14
PIN-SNAP,SIDE STAND
€ 0.50
15
920811053
ref: 15
SPRING,SEAT HOOK
€ 8.50
16
1402550238G
ref: 16
KZ550-A1
COVER,SEAT,EBONY
€ 144.50
16-1
140251046D9
ref: 16-1
KZ550-A2
COVER-SEAT,L.P.RED
€ 164.00
17
112B0622
ref: 17
BOLT, 6X22
€ 2.50
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
92027251
ref: 19
COLLAR,L=13.1
€ 1.00
20
92071072
ref: 20
GROMMET
€ 7.00
21
92075174
ref: 21
DAMPER,MALE
€ 3.00
22
92075175
ref: 22
DAMPER,FEMALE
€ 2.50
23
112B0614
ref: 23
BOLT-UPSET 6X14
€ 2.50
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
411B0600
ref: 25
WASHER-PLAIN,6MM
€ 0.50
26
270165010
ref: 26
LOCK-ASSY,SEAT
€ 72.50
