CYLINDER/PISTONS ('82-'83 A3/A4)
KZ550A4 1983 USA CANADA

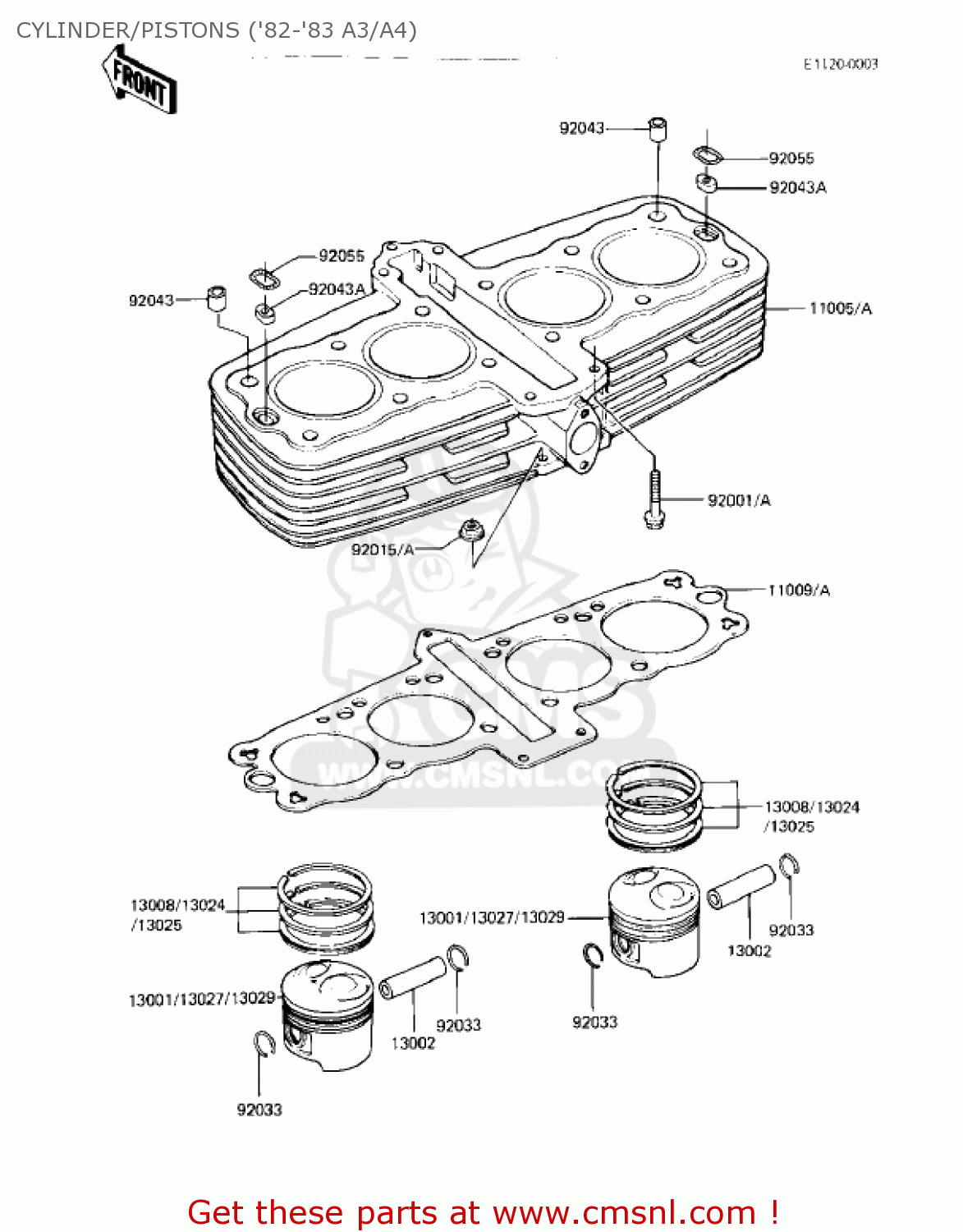

Cylinder/pistons ('82-'83 a3/a4) diagram KZ550A4 1983 USA CANADA
CYLINDER/PISTONS ('82-'83 A3/A4) KZ550A4 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11005
110051076
ref: 11005
CYLINDER-ENGINE,F.BLA
€ 1,193.00
11005A
110051313
ref: 11005A
CYLINDER-ENGINE
€ 971.00
11009
110091932
ref: 11009
GASKET,CYLINDER BASE (NAS)
€ 26.50
11009A
110091932
ref: 11009A
GASKET,CYLINDER BASE (NAS)
€ 26.50
13001
130011121
ref: 13001
PISTON-ENGINE,STD
€ 33.50
13002
130021012
ref: 13002
PIN-PISTON
€ 15.50
13008
130081009
ref: 13008
RING-SET-PISTON,STD
€ 54.50
13024
130241010
ref: 13024
RING-SET-PISTON LL,O/
€ 61.50
13025
130251010
ref: 13025
RING-SET-PISTON L,O/S
€ 64.50
13027
130271053
ref: 13027
PISTON-ENGINE LL,O/S
€ 31.50
13029
130291055
ref: 13029
PISTON-ENGINE L,O/S 0
€ 52.50
92001
920011531
ref: 92001
BOLT,BLACK,6X28
€ 3.50
92001A
92003202
ref: 92001A
BOLT
€ 4.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151170
ref: 92015A
NUT,CAP 6MM,BLACK
€ 0.50
92033
920331050
ref: 92033
RING-SNAP
€ 2.00
92043
92042031
ref: 92043
PIN,DOWEL,12X14
€ 4.50
92043A
920431210
ref: 92043A
PIN,OIL LINE
€ 4.50
92055
920551147
ref: 92055
RING-O,CYLINDER OIL L
€ 6.00
