CYLINDER PISTONS ('80-'81 A1/A2)
KZ550A4 1983 USA CANADA

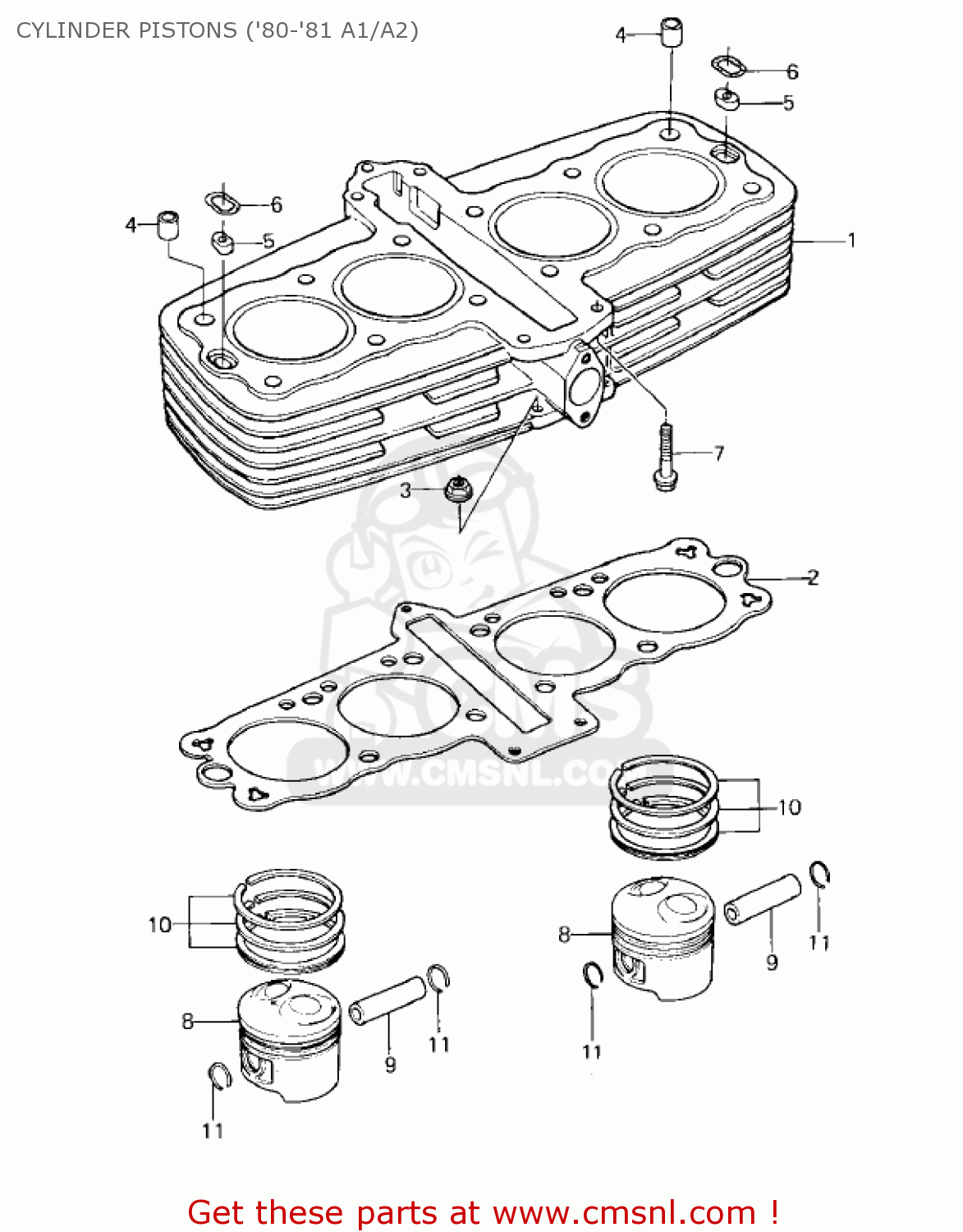

Cylinder pistons ('80-'81 a1/a2) diagram KZ550A4 1983 USA CANADA
CYLINDER PISTONS ('80-'81 A1/A2) KZ550A4 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
ref: 1
2
ref: 2
3
ref: 3
4
92042031
ref: 4
PIN,DOWEL,12X14
€ 4.50
5
920431210
ref: 5
PIN,OIL LINE
€ 4.50
6
920551147
ref: 6
RING-O,CYLINDER OIL L
€ 6.00
7
92003202
ref: 7
BOLT
€ 4.00
8
130011121
ref: 8
PISTON-ENGINE,STD
€ 33.50
8
130271053
ref: 8
PISTON-ENGINE LL,O/S
€ 31.50
8
130291055
ref: 8
PISTON-ENGINE L,O/S 0
€ 52.50
13002
130021012
ref: 13002
PIN-PISTON
€ 15.50
10
130081009
ref: 10
RING-SET-PISTON,STD
€ 54.50
10
130241010
ref: 10
RING-SET-PISTON LL,O/
€ 61.50
10
130251010
ref: 10
RING-SET-PISTON L,O/S
€ 64.50
11
920331050
ref: 11
RING-SNAP
€ 2.00
