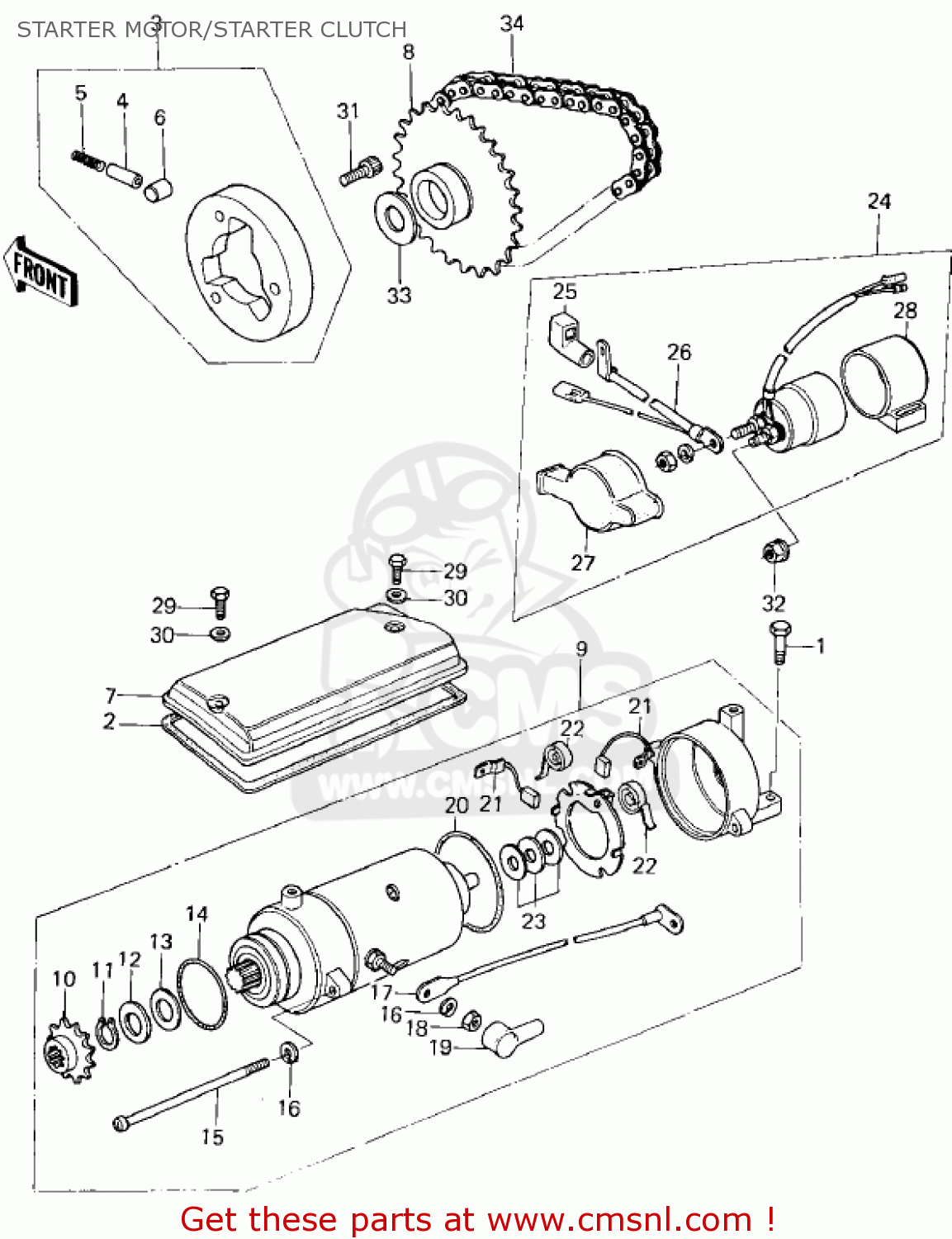

STARTER MOTOR/STARTER CLUTCH

ref

part #

description

quantity

1

112G0625
ref: 1

BOLT-UPSET,6X25

€ 4.00

2

110091006
ref: 2

GASKET,STARTER COVER (NAS)

€ 8.00

3

131931001
ref: 3

CLUTCH-ASSY-ONEWAY

€ 141.50

4

92043087
ref: 4

PIN

€ 8.00

5

92081110
ref: 5

SPRING

€ 3.00

6

92122004
ref: 6

ROLLER,15X13

€ 7.00

7

140251284
ref: 7

COVER,STARTER

€ 16.00

8

120461030
ref: 8

SPROCKET,ONWAY CLUTCH

€ 99.00

9

211631011
ref: 9

MOTOR ASSY,STARTER

€ 595.00

10

21053002
ref: 10

SPROCKET,STARTNG MOT

€ 24.50

11

480J1400
ref: 11

CIRCLIP-TYPE-C,14MM

€ 3.00

12

21025008
ref: 12

WASHER,PLAIN,14MM

€ 3.50

13

21025009
ref: 13

WASHER,PLAIN,14MM

€ 3.50

14

21027005
ref: 14

'O' RING,42.8MM

€ 5.50

15

220B06110
ref: 15

SCREW-PAN HEAD,6X110

€ 2.50

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

26010035
ref: 17

WIRE,STARTER LEAD

€ 33.50

18

312B0600
ref: 18

NUT,6MM

€ 0.50

19

21017020
ref: 19

CAP,STARTING MOTOR

€ 6.00

20

21027006
ref: 20

RING-O,62MM

€ 8.00

21

21039004
ref: 21

BRUSH,CARBON

€ 23.00

22

21040004
ref: 22

SPRING-BRUSH

€ 5.50

23

21025007
ref: 23

WASHER,PLAIN,9MM

€ 2.50

24

270101040
ref: 24

SWITCH,MAGNETO

€ 104.50

25

21017021
ref: 25

CAP,MAG SWITCH TEMNL

€ 8.50

26

260111107
ref: 26

WIRE LEAD,MAGNETIC SW

€ 20.00

27

21141004
ref: 27

COVER,MAG SWITCH

€ 8.50

28

21064002
ref: 28

DAMPER,MAGNETIC SWITC

€ 13.50

29

110R0610
ref: 29

BOLT,6X10

€ 5.00

30

410D0600
ref: 30

WASHER-PLAIN-SMALL,6M

€ 0.50

31

120P0816
ref: 31

BOLT-SOCKET

€ 2.50

32

92017014
ref: 32

NUT,LOCK,6MM

€ 4.00

33

920261004
ref: 33

SPACER,25X40X1

€ 4.50

34

920571009
ref: 34

CHAIN,DYNAMO

€ 12.50
