CARBURETOR ASSY
KZ400H1 1979 USA CANADA / MPH KPH

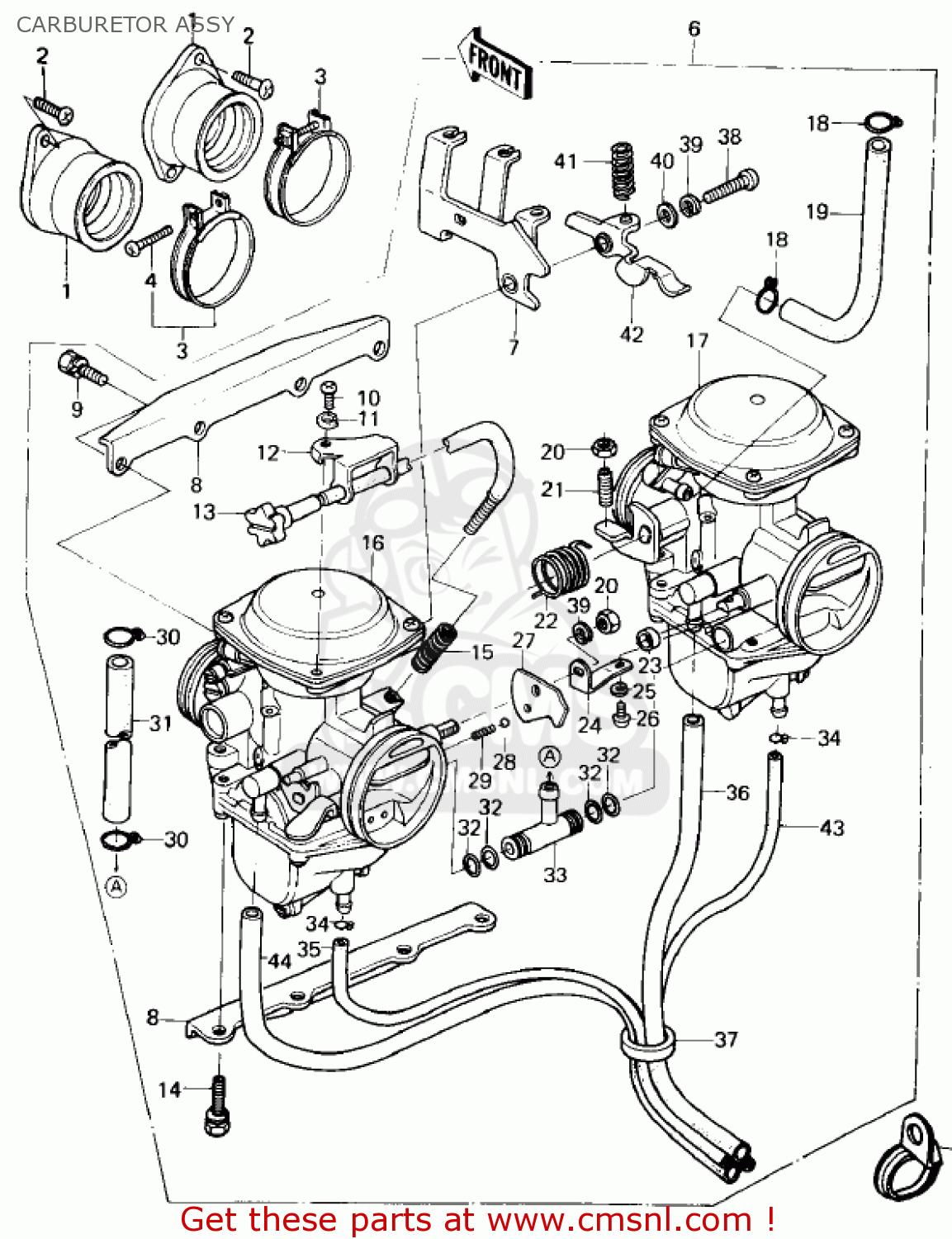

Carburetor assy diagram KZ400H1 1979 USA CANADA / MPH KPH
CARBURETOR ASSY KZ400H1 1979 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
160651002
ref: 1
HOLDER-CARBURETOR
€ 25.50
2
220B0618
ref: 2
SCREW-PAN HEAD,6X18
€ 2.50
3
920371021
ref: 3
CLAMP,CARBURETOR
€ 2.00
4
220B0530
ref: 4
SCREW-PAN-CROS
€ 2.00
5
920371153
ref: 5
CLAMP,TUBE
€ 1.50
6
160011173
ref: 6
CARBURETOR ASSEMBLY
€ 562.50
7
110341008
ref: 7
BRACKET,THR.CBL PULLY
€ 50.00
8
160651012
ref: 8
PLATE,STAY
€ 23.00
9
920091129
ref: 9
SCREW,6X16
€ 3.00
10
220B0410
ref: 10
SCREW-PAN-CROS
€ 2.00
11
461F0400
ref: 11
WASHER-SPRING,4MM
€ 0.50
12
110341202
ref: 12
BRACKET,STOP SCREW
€ 17.50
13
160211007
ref: 13
SCREW-THROTTLE STOP
€ 18.50
14
920091006
ref: 14
BOLT, HEX HEAD, 6X22
€ 3.00
15
920811062
ref: 15
SPRING,STOP SCREW
€ 4.50
16
160011174
ref: 16
CARBURETOR,LH
€ 249.00
17
160011175
ref: 17
CARBURETOR,RH
€ 249.00
18
920371040
ref: 18
CLAMP,FUEL HOSE
€ 2.00
19
920591001
ref: 19
HOSE, FUEL INLET
€ 13.50
20
311B0500
ref: 20
NUT-HEX
€ 0.50
21
160211002
ref: 21
SCREW, SLOTTED
€ 1.50
22
920811063
ref: 22
SPRING
€ 8.50
23
160731001
ref: 23
COLLAR, CHOKE LEVER
€ 1.50
24
110341203
ref: 24
BRACKET,CHOKE LEVER
€ 6.00
25
461F0300
ref: 25
WASHER-SPRING,3MM
€ 0.50
26
220B0306
ref: 26
SCREW-PAN-CROS
€ 0.50
27
131691151
ref: 27
PLATE,CHOKE LINK
€ 4.50
28
600A0400
ref: 28
BALL-STEEL,1/8
€ 2.00
29
920811004
ref: 29
SPRING
€ 3.00
30
920371075
ref: 30
CLAMP,FUEL INLET TUBE
€ 2.50
31
920591029
ref: 31
TUBE,FUEL,7.3X12.5X20
€ 18.50
32
920551004
ref: 32
O RING
€ 2.50
33
920051033
ref: 33
FITTING,FUEL TUBE
€ 30.00
34
920371142
ref: 34
CLAMP,TUBE
€ 2.50
35
92059111
ref: 35
HOSE,FUEL OVERFLOW
€ 17.50
36
92059110
ref: 36
HOSE
€ 11.50
37
920591114
ref: 37
TUBE,CLAMP
€ 7.50
38
220B0525
ref: 38
SCREW-PAN-CROS,5X25
€ 2.50
39
461F0500
ref: 39
WASHER-SPRING,5MM
€ 0.50
40
16039027
ref: 40
WASHER,PLAIN
€ 1.00
41
920811003
ref: 41
SPRING
€ 7.50
42
110341009
ref: 42
ROCKER ARM
€ 7.00
43
92059111
ref: 43
HOSE,FUEL OVERFLOW
€ 17.50
44
920591106
ref: 44
HOSE,AIR,4.5X8X450
€ 11.50
