CYLINDER/PISTONS

KZ400H1 1979 USA CANADA / MPH KPH

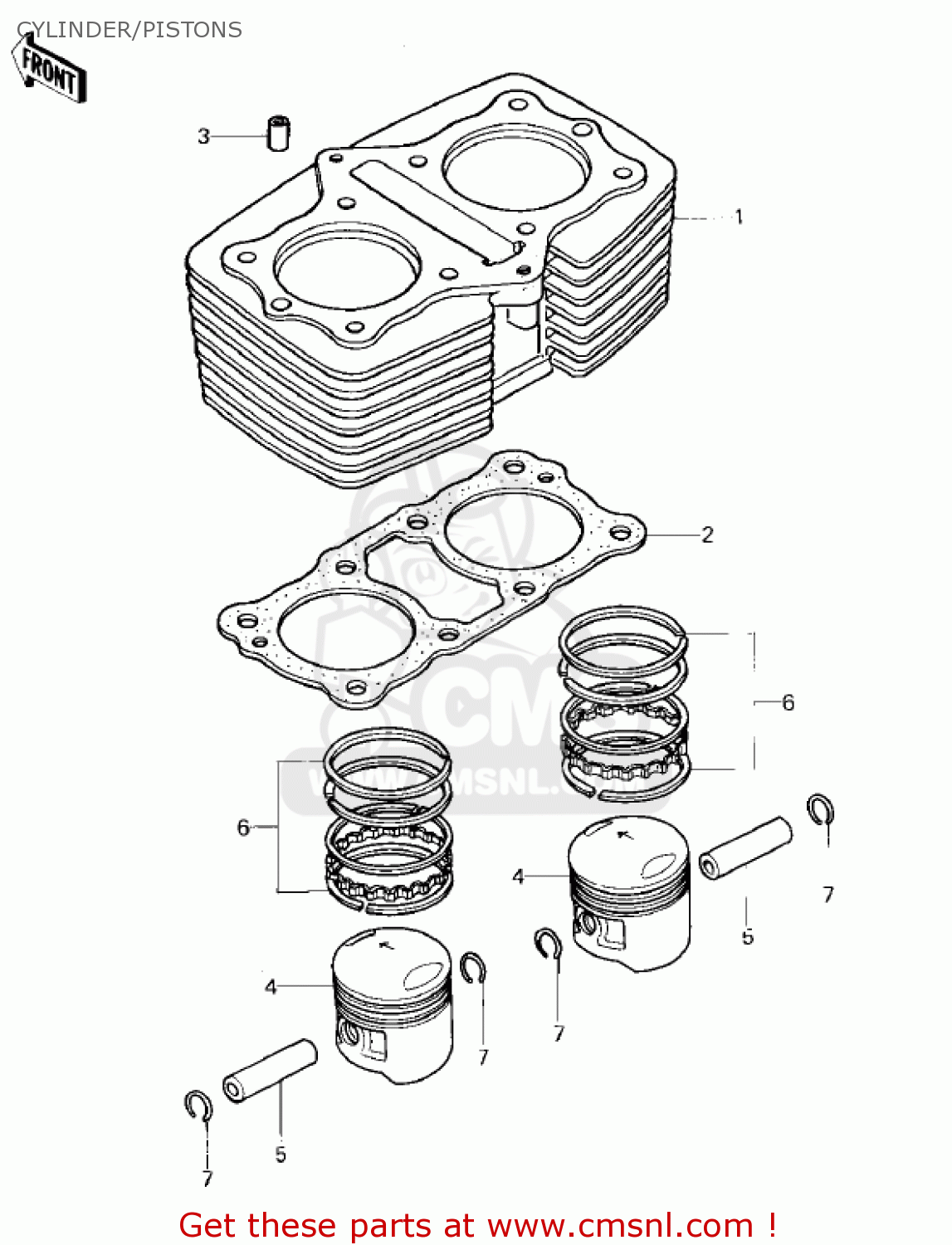

Cylinder/pistons diagram KZ400H1 1979 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

110051002
ref: 1

CYLINDER

€ 577.50

110091176
ref: 2

GASKET,CYLINDER BASE (MCA)

€ 14.00

920431037
ref: 3

PIN,DOWEL,10X8.2X14

€ 0.50

130011001
ref: 4

PISTON-ENGINE,STD

€ 53.50

130291006
ref: 4

PISTON-ENGINE-L,O/S 0

€ 67.50

130271008
ref: 4

PISTON-ENGINE-LL,O/S

€ 67.50

130021001
ref: 5

PIN-PISTON

€ 4.00

130085019
ref: 6

RING-SET-PISTON,STD

€ 56.00

130255010
ref: 6

RING-SET-PISTON L,O/S

€ 70.50

130245010
ref: 6

RING-SET-PISTON LL,O/

€ 28.00

92036005
ref: 7

CIRCLIP-PISTON PIN

€ 2.50

all assemblies
