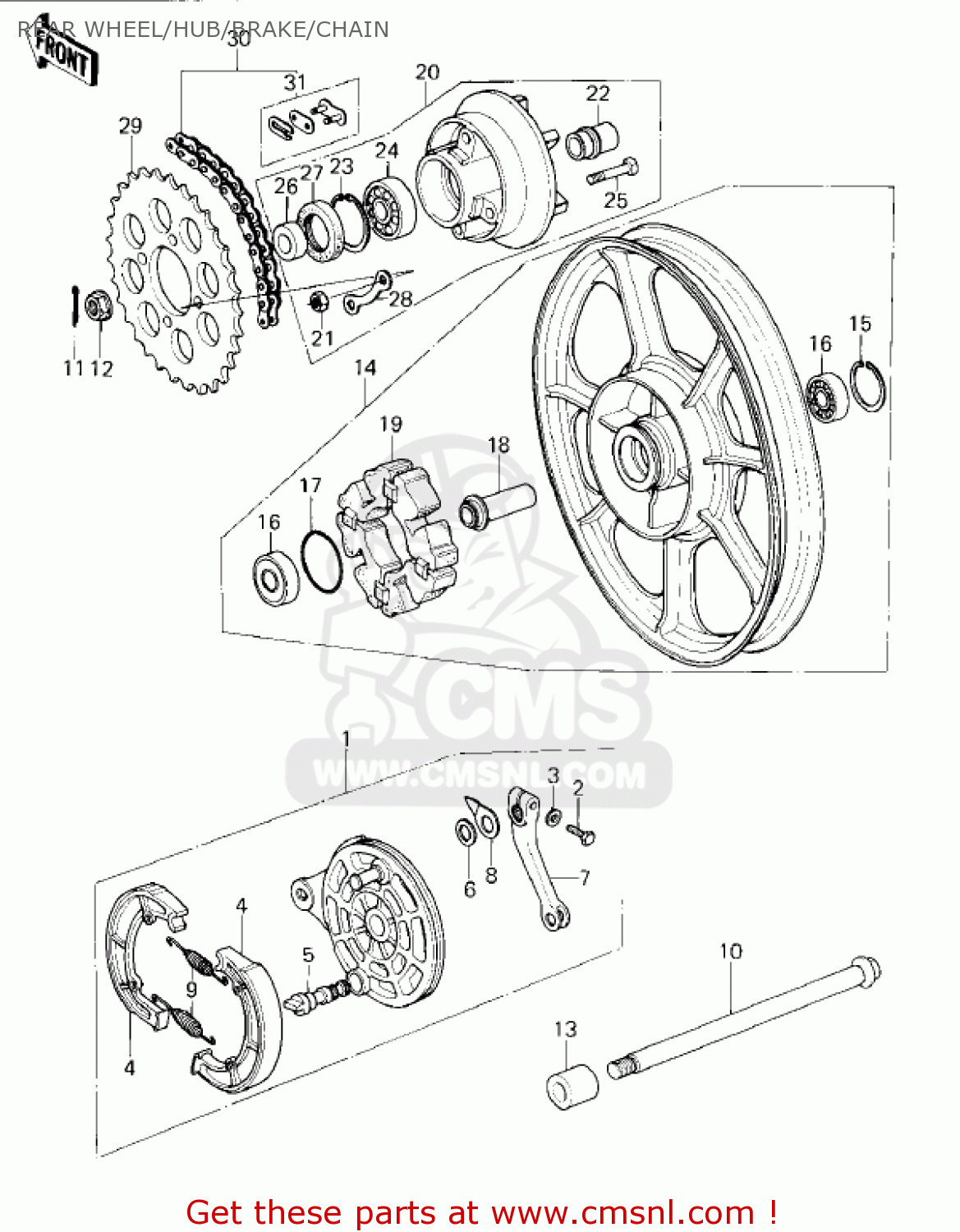

REAR WHEEL/HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

410351089
ref: 1

PANEL ASSY,REAR BRAKE

€ 239.50

2

114G0828
ref: 2

BOLT-SMALL,8X28

€ 2.50

3

410B0800
ref: 3

WASHER-PLAIN-SMALL,8M

€ 0.50

4

410481069
ref: 4

SHOE-BRAKE (NAS)

€ 26.00

5

410501001
ref: 5

CAM-BRAKE

€ 24.00

6

41051003
ref: 6

DUST SHIELD-BRAKE CAM

€ 2.50

7

410531001
ref: 7

LEVER,BRAKE CAM

€ 27.50

8

41085004
ref: 8

INDICATOR,BRAKE SHOE

€ 10.00

9

42020004
ref: 9

SPRING-BRAKE SHOE

€ 5.50

10

410681024
ref: 10

AXLE,REAR

€ 37.00

11

550D4025
ref: 11

PIN,COTTER,4X25

€ 0.50

12

920151041
ref: 12

NUT,16M/M

€ 8.50

13

920271198
ref: 13

COLLAR,RR AXLE,R.H.

€ 8.50

14

410731055
ref: 14

SOLIT WHEEL ASSY,RR

€ 358.00

15

920331042
ref: 15

CIRCLIP,47M/M

€ 4.00

16

601B6303Z
ref: 16

BEARING-BALL,#6303ZC3

€ 17.50

17

671B2560
ref: 17

O RING,60MM

€ 1.50

18

920271196
ref: 18

COLLAR,L=74

€ 10.00

19

920751008
ref: 19

DAMPER,REAR HUB SHOCK

€ 53.50

20

420331011
ref: 20

COUPLING ASSY,RR HUB

€ 113.00

21

314B1000
ref: 21

NUT,10MM

€ 0.50

22

420361002
ref: 22

SLEEVE,COUPLING

€ 27.50

23

920331043
ref: 23

RING,SNAP,56.2M/M

€ 6.00

24

601B6205
ref: 24

BEARING-BALL,#6205C3

€ 14.00

25

92003156
ref: 25

BOLT,RR SPROCKET FIT

€ 6.50

26

920271197
ref: 26

COLLAR,17X35X19.5

€ 16.50

27

92052006
ref: 27

OIL SEAL WTC35527

€ 6.50

28

92088005
ref: 28

WASHER,SPROCKET LOCK

€ 4.00

29

42041145
ref: 29

REAR SPROCKET,45T

€ 82.00

30

920571035
ref: 30

CHAIN ASSY,DRIVE,104L

€ 58.50

31

920581005
ref: 31

JOINT-CHAIN

€ 6.00
