GEAR CHANGE MECHANISM

KZ400H1 1979 USA CANADA / MPH KPH

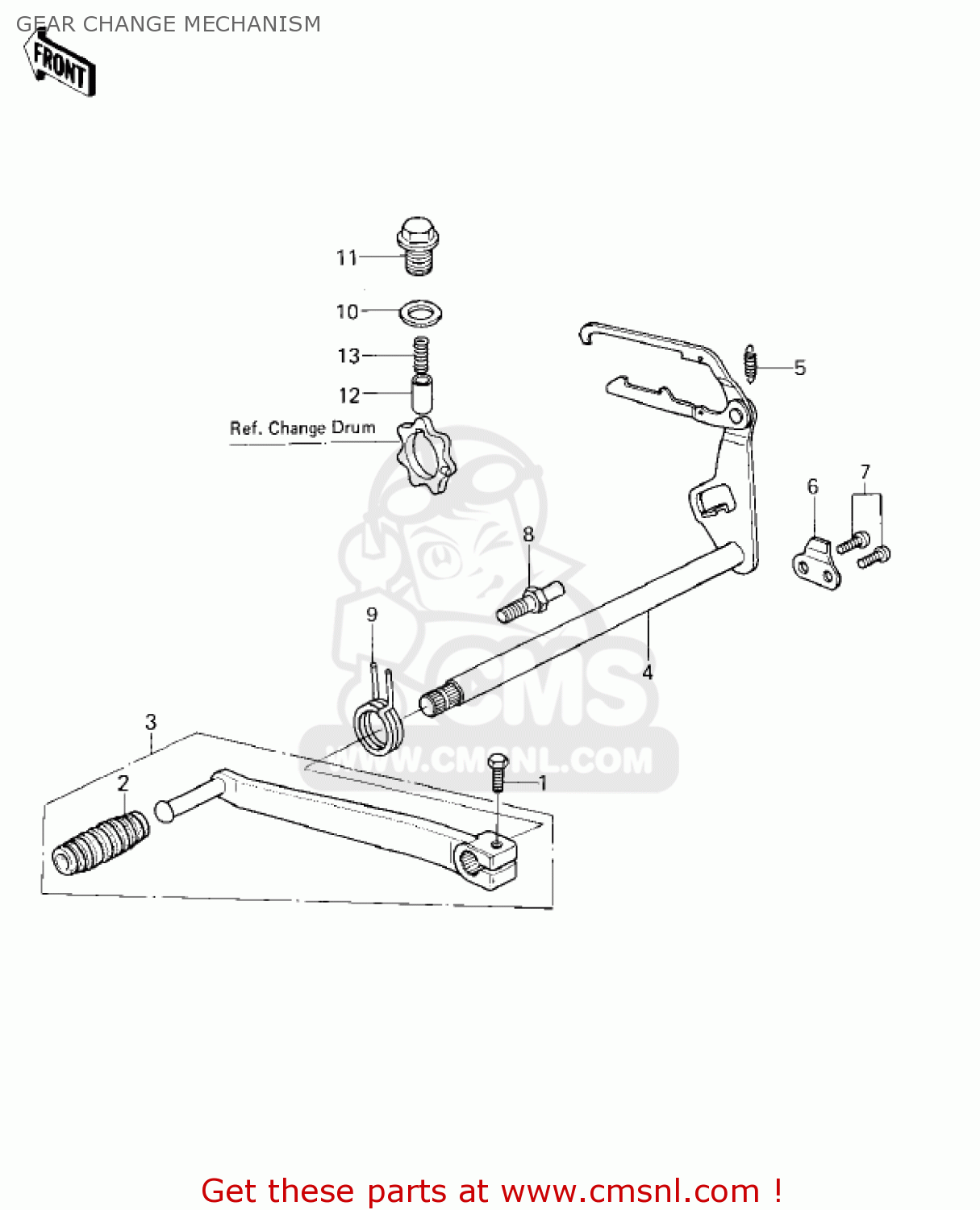

Gear change mechanism diagram KZ400H1 1979 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

112G0620
ref: 1

BOLT 6X20

€ 1.00

921601036
ref: 2

DAMPER,CHANGE PEDAL

€ 3.50

132421019
ref: 3

PEDAL ASSY,GEAR CHNG

€ 30.00

131611001
ref: 4

LEVER COMP,CHANGE

€ 71.00

92081076
ref: 5

SPRING-CHANG LEVER

€ 3.50

13169011
ref: 6

PLATE,SHIFT LEVER

€ 6.00

220B0616
ref: 7

SCREW-PAN HEAD,6X16

€ 2.50

920011401
ref: 8

BOLT,RETURN SPRING

€ 3.00

92083028
ref: 9

SPRING,CHG PEDL RTRN

€ 9.50

110091008
ref: 10

GASKET,15.5X22X1 (NAS)

€ 2.50

920011037
ref: 11

BOLT,NEUTAL POSITION

€ 9.50

92043076
ref: 12

PIN-NEUTRAL PISTON

€ 8.00

92081112
ref: 13

SPRING

€ 4.00
