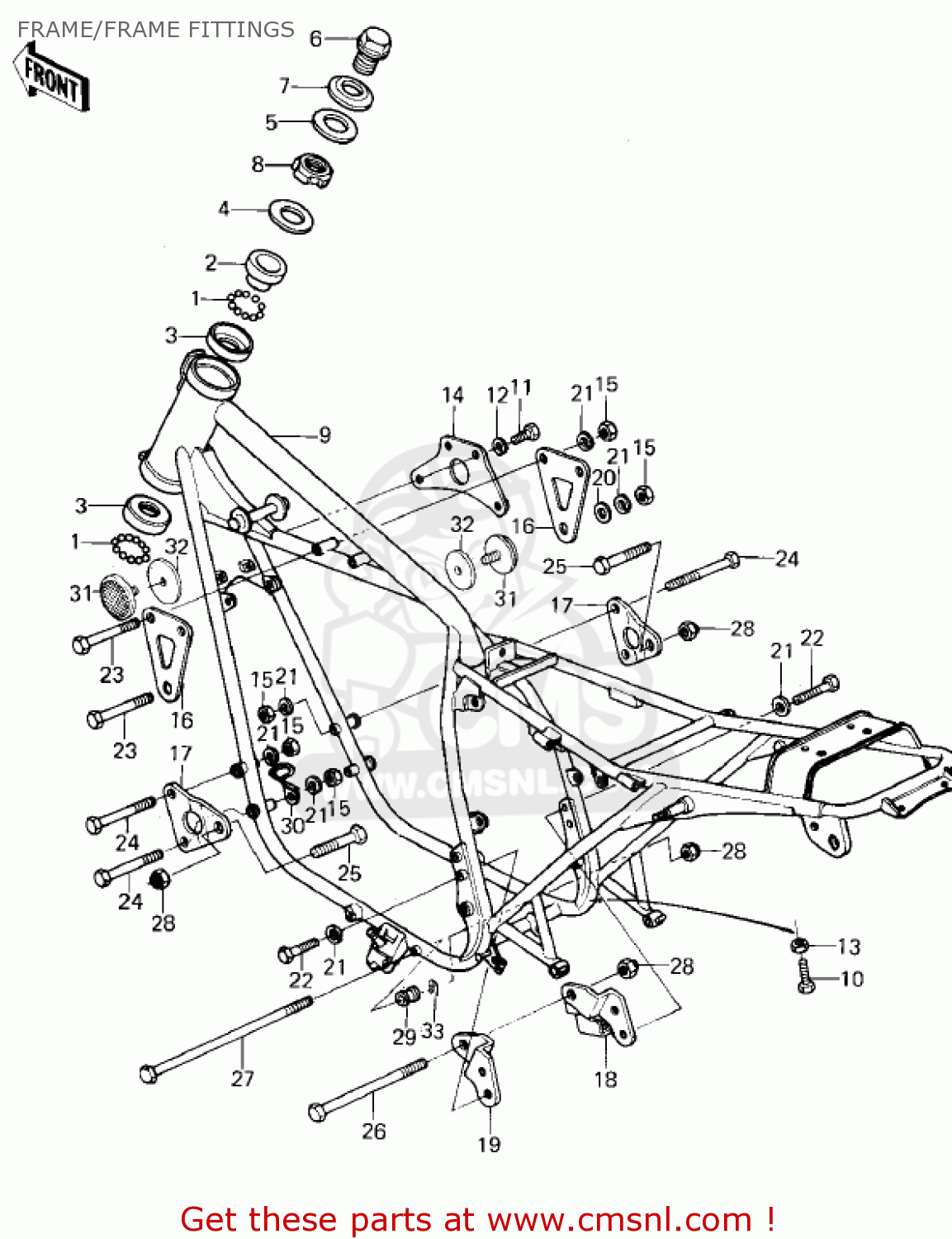

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

600A0800
ref: 1

BALL-STEEL,1/4

€ 0.50

2

92047006
ref: 2

CONE-STRNG STEM

€ 11.00

3

92048006
ref: 3

RACE-STRNG BEARIN-STE

€ 11.50

4

46098016
ref: 4

CAP,STEERING STEM

€ 4.00

5

46100003
ref: 5

WASHER,WAVE

€ 6.50

6

92007031
ref: 6

BOLT-STEERG STEM HEAD

€ 17.50

7

92022230
ref: 7

WASHER-STEERG STM HD

€ 7.50

8

92090007
ref: 8

NUT-STEERING STEM LCK

€ 8.00

9

320021248
ref: 9

FRAME

€ 830.50

10

112G0620
ref: 10

BOLT 6X20

€ 1.00

11

112B0614
ref: 11

BOLT-UPSET 6X14

€ 2.50

12

461F0600
ref: 12

WASHER-SPRING,6MM

€ 0.50

13

311B0600
ref: 13

NUT,6MM

€ 0.50

14

32058049
ref: 14

BRACKET,IGNITON COIL

€ 7.50

15

311B0800
ref: 15

NUT,8MM

€ 0.50

16

320291097
ref: 16

BRACKET-ENGINE,HEAD

€ 10.00

17

320291098
ref: 17

BRACKET,ENGINE,FRONT

€ 10.50

18

320291099
ref: 18

BRACKET,ENGINE,RR,R.H

€ 10.50

19

320291100
ref: 19

BRACKET,ENGINE,RR,L.H

€ 8.00

20

411B0800
ref: 20

WASHER-PLAIN,8MM

€ 0.50

21

461F0800
ref: 21

WASHER-SPRING,8MM

€ 0.50

22

920011577
ref: 22

BOLT,FLANGED,8X35

€ 2.50

23

920011581
ref: 23

BOLT,FLANGED,8X60

€ 3.50

24

920011236
ref: 24

BOLT,HEX HEAD,8X65

€ 1.00

25

920011254
ref: 25

BOLT,HEX HEAD,10X50

€ 2.50

26

920011260
ref: 26

BOLT,HEX HEAD ,10X200

€ 12.00

27

920011272
ref: 27

BOLT,10X300,RR LOWER

€ 15.00

28

92019021
ref: 28

NUT,LOCK,10M/M

€ 2.00

29

92027160
ref: 29

COLLAR,L=30.5

€ 7.00

29

92027250
ref: 29

COLLAR

€ 9.00

30

920371015
ref: 30

CLAMP,CABLE

€ 6.50

31

28012016
ref: 31

REFLECTOR REFLEX

€ 16.00

32

92094011
ref: 32

DAMPER,REFLECTOR

€ 3.00

33

92025053
ref: 33

SHIM,T=0.5

€ 3.00
