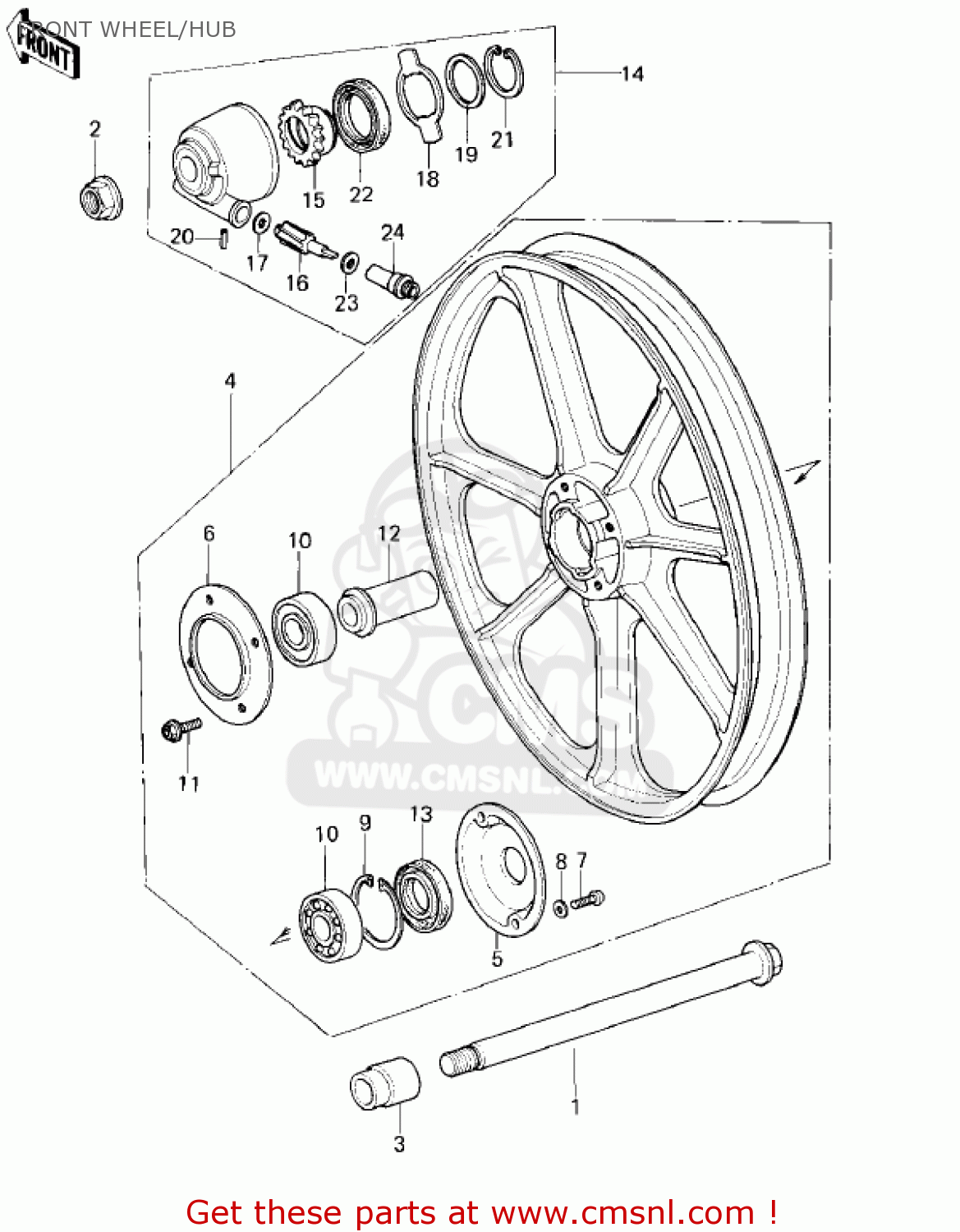

FRONT WHEEL/HUB

ref

part #

description

quantity

1

410681099
ref: 1

AXLE,FR,L=230

€ 37.50

2

920151407
ref: 2

NUT,14MM

€ 6.50

3

920271085
ref: 3

COLLAR,L=35

€ 11.50

4

410731041
ref: 4

SOLID WHEEL ASSY,FR

€ 606.50

5

140251042
ref: 5

COVER,DUST,RH

€ 6.00

6

140251043
ref: 6

COVER,DUST,LH

€ 19.50

7

220B0514
ref: 7

ACREW-PAN HEAD,5X14

€ 2.50

8

411B0500
ref: 8

WASHER-PLAIN,5MM

€ 0.50

9

920331041
ref: 9

CIRCLIP,42MM

€ 4.00

10

601B6302Z
ref: 10

BEARING-BALL,#6302ZC3

€ 22.50

11

920011095
ref: 11

BOLT,8X28

€ 4.50

12

920271171
ref: 12

COLLAR,FRONT WHEEL

€ 13.00

13

92052011
ref: 13

OIL SEAL,WTC22427

€ 14.00

14

410781005
ref: 14

CASE-ASSY-METER GEAR

€ 108.00

15

410601015
ref: 15

GEAR,SPEEDOMETER,26T

€ 21.00

16

410601016
ref: 16

PINION,SPEEDOMETER,9T

€ 21.50

17

41063001
ref: 17

WASHER-THRST SPD PINI

€ 3.00

18

410641005
ref: 18

RECEIVER,SPEEDOMETER

€ 9.50

19

41065006
ref: 19

WASHER, PLAIN

€ 2.00

20

41082001
ref: 20

PIN-SPRING

€ 2.50

21

480J2200
ref: 21

CIRCLIP-TYPE-C,22MM

€ 3.00

22

920491057
ref: 22

OIL SEAL,BJN30427-C3

€ 7.50

23

41063001
ref: 23

WASHER-THRST SPD PINI

€ 3.00

24

920871002
ref: 24

BUSHING-METER GEAR

€ 14.50
