WATER PUMP
KZ1300A4 1982 USA CANADA

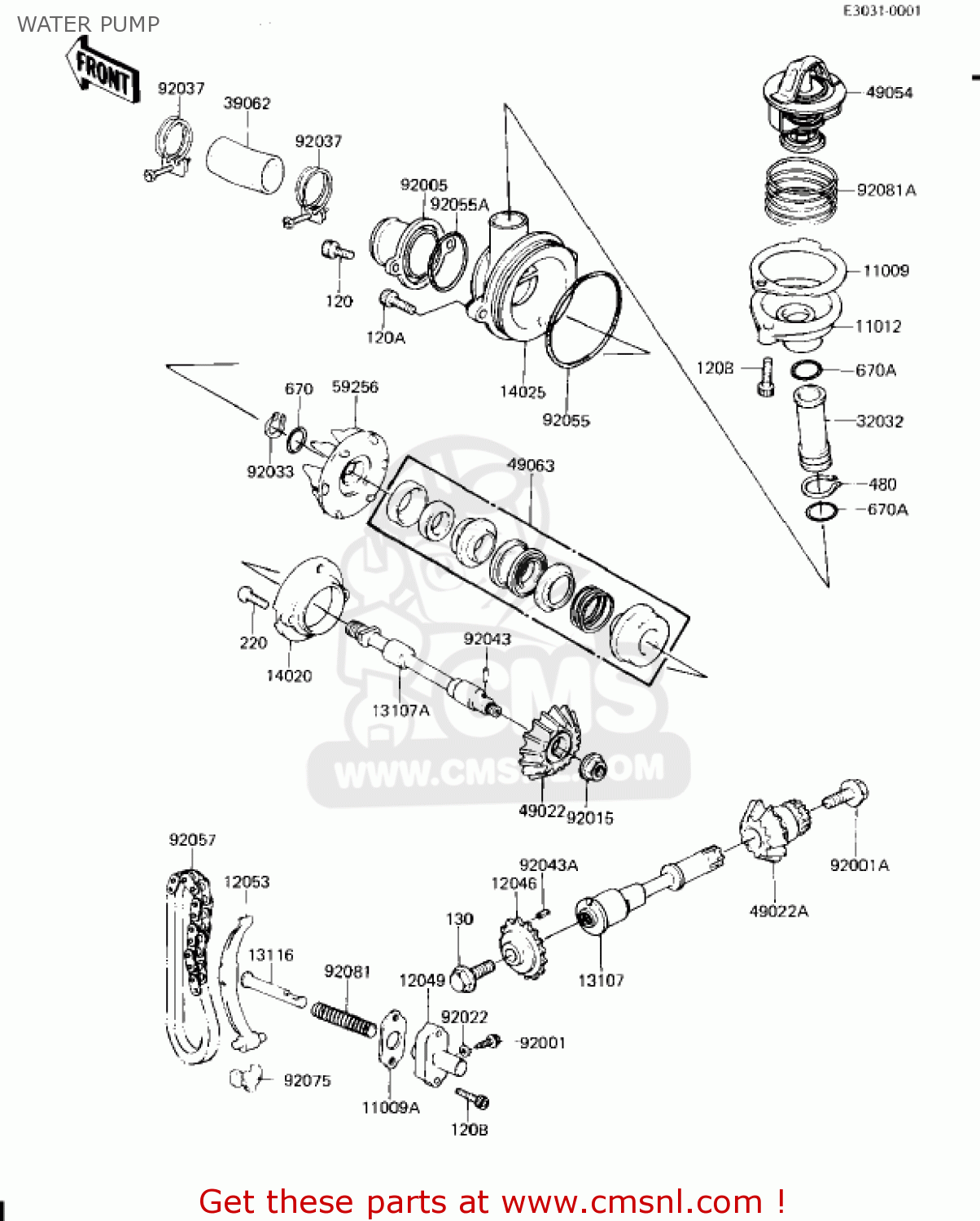

Water pump diagram KZ1300A4 1982 USA CANADA
WATER PUMP KZ1300A4 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091087
ref: 11009
GASKET,THERMOSTAT CAP (NAS)
€ 4.00
11009A
110091099
ref: 11009A
GASKET,TIMING CHAIN T (NAS)
€ 2.50
11012
110121054
ref: 11012
CAP,THERMOSTAT
€ 19.00
12046
120461015
ref: 12046
SPROCKET,TIMING CHAIN
€ 51.00
12049
120491007
ref: 12049
TENSIONER,TIMING CHAI
€ 25.50
12053
120531027
ref: 12053
GUIDE,CHAIN TIMING
€ 38.00
13107
131071009
ref: 13107
SHAFT,WATER PUMP DRIV
€ 71.50
13107A
131071011
ref: 13107A
SHAFT,WATER PUMP
€ 76.50
13116
131161014
ref: 13116
ROD-PUSH,TENSIONER
€ 10.00
14020
140201004
ref: 14020
RETAINER,MECHANICAL S
€ 16.00
14025
140251077
ref: 14025
COVER,WATER PUMP
€ 42.00
32032
320321184
ref: 32032
PIPE,WATER BYPASS
€ 18.00
39062
390621020
ref: 39062
HOSE-COOLING
€ 10.00
49022
490221006
ref: 49022
GEAR,BEVEL WATER PUMP
€ 96.00
49022A
490221015
ref: 49022A
GEAR-BEVEL,WATER PUMP
€ 61.00
49054
490541001
ref: 49054
THERMOSTAT
€ 44.50
49063
490631001
ref: 49063
SEAL,MECHANICAL
€ 59.00
59256
592561001
ref: 59256
IMPELLER,WATER PUMP
€ 32.50
92001
920011155
ref: 92001
BOLT,TENSIONER ADJUST
€ 3.50
92001A
920011371
ref: 92001A
BOLT,FLANGED,8X17
€ 4.50
92005
920051011
ref: 92005
FITTING,SUCTION
€ 16.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92033
920331024
ref: 92033
RING-SNAP,11MM
€ 2.50
92037
920371177
ref: 92037
CLAMP,HOSE
€ 6.00
92043
92042014
ref: 92043
PIN-GEAR CHANGE DRUM
€ 0.50
92043A
555A0408
ref: 92043A
PIN-SPRING,4X8
€ 2.50
92055
920551032
ref: 92055
RING-O,67MM
€ 7.50
92055A
920551033
ref: 92055A
RING-O,OR2037
€ 5.50
92057
920571019
ref: 92057
CHAIN,TIMING,72L
€ 6.50
92075
920751187
ref: 92075
DAMPER,TIMING CHAIN G
€ 3.50
92081
920811102
ref: 92081
SPRING,TENSIONER
€ 3.50
92081A
920811104
ref: 92081A
SPRING,THERMOSTAT
€ 9.50
120
120P0616
ref: 120
BOLT,SOCKET,6X16
€ 1.50
120A
120P0620
ref: 120A
BOLT-HEX HEAD,6X20
€ 0.50
120B
120P0625
ref: 120B
BOLT,6X25
€ 1.50
130
130G0820
ref: 130
BOLT,FLANGED,8X20
€ 0.50
220
220R0516
ref: 220
SCREW-PAN-CROS
€ 2.50
480
480J2000
ref: 480
CIRCLIP-TYPE-C,20MM
€ 1.00
670
670B1508
ref: 670
O RING,8MM
€ 1.00
670A
670B2016
ref: 670A
O RING,16MM
€ 1.00
