CARBURETOR PARTS
KZ1300A4 1982 USA CANADA

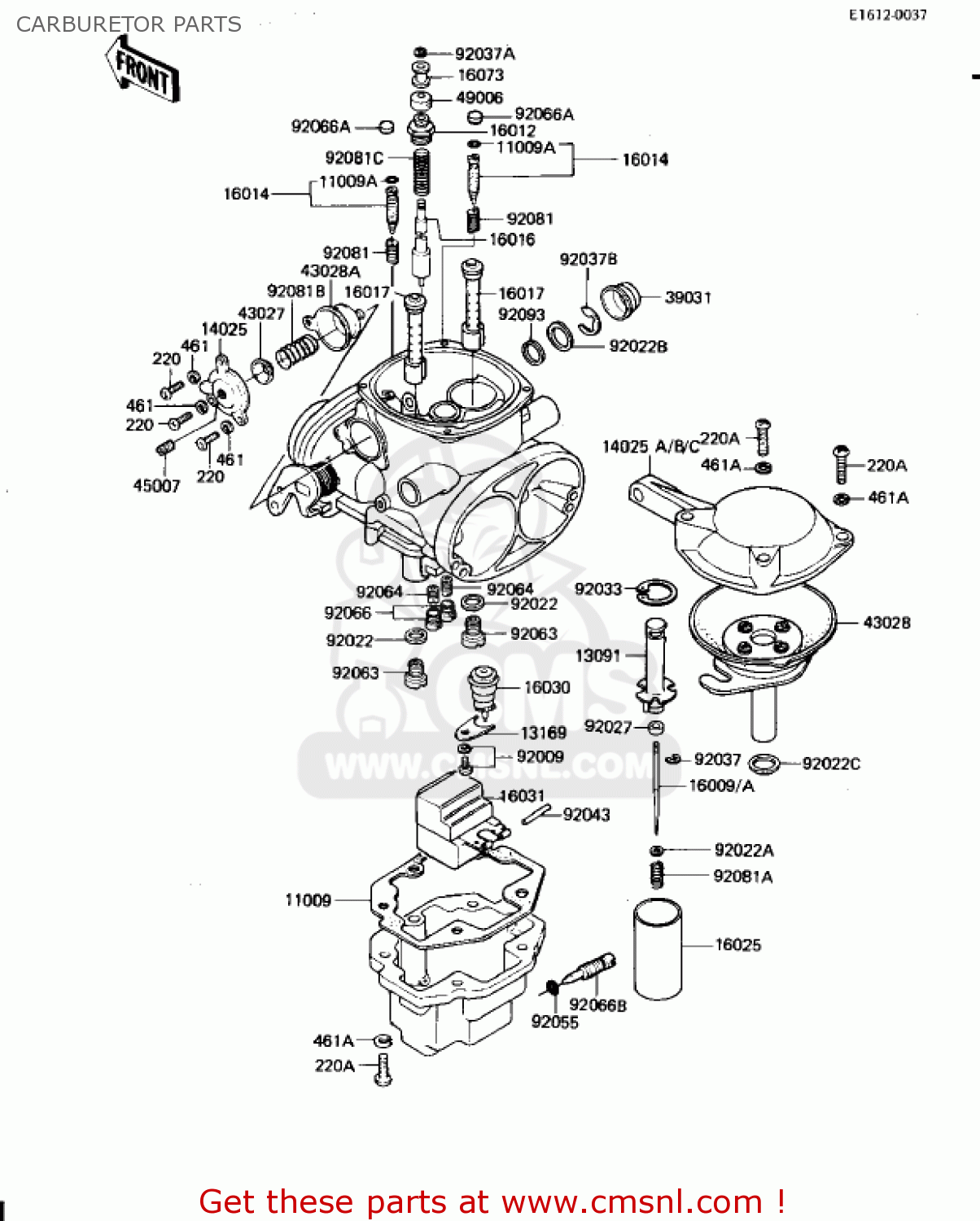

Carburetor parts diagram KZ1300A4 1982 USA CANADA
CARBURETOR PARTS KZ1300A4 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091148
ref: 11009
GASKET,FLOAT CHAMBER (MCA)
€ 24.50
11009A
16038022
ref: 11009A
GASKET,O-RING
€ 4.50
13091
130911056
ref: 13091
HOLDER,PISTON VALVE
€ 5.50
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
14025
140251158
ref: 14025
COVER,COASTING RICHER
€ 15.50
14025A
140251159
ref: 14025A
TOP,MIXING CHAMBR,L.H
€ 75.00
14025B
140251160
ref: 14025B
TOP,MIXING CHAMBER,C.
€ 72.50
14025C
140251161
ref: 14025C
TOP,MIXING CHAMBR,R.H
€ 77.00
16009
160091038
ref: 16009
CN
NEEDLE-JET,5P3
€ 23.00
16009A
160091050
ref: 16009A
US
JET,NEEDLE,5P4
€ 20.00
16012
160121005
ref: 16012
CAP-STARTER PLUNGER
€ 12.00
16014
160141016
ref: 16014
SCREW-PILOT AIR
€ 16.50
16016
160161005
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171038
ref: 16017
NEEDLE JET,Y-8
€ 38.00
16025
160251029
ref: 16025
VALVE,PISTON
€ 46.50
16030
160301005
ref: 16030
VALVE-FLOAT
€ 66.00
16031
160311006
ref: 16031
FLOAT
€ 58.00
16073
16073014
ref: 16073
COLLAR,STARTER PLUNGE
€ 5.50
39031
390311002
ref: 39031
CAP,STEEL
€ 4.00
43027
430271004
ref: 43027
PLATE-DIAPHRAGM
€ 6.50
43028
430281014
ref: 43028
DIAPHRAGM ASSY,VACUUM
€ 178.50
43028A
430281017
ref: 43028A
DIAPHRAGM,RICHER
€ 62.50
45007
450071001
ref: 45007
SCREW,SLOTTED
€ 3.00
49006
16036017
ref: 49006
BOOT,STARTER PLUNGER
€ 8.00
92009
16033014
ref: 92009
SCREW-CLAMP
€ 3.00
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92022A
920221123
ref: 92022A
WASHER,JET NEEDLE
€ 5.50
92022B
920221150
ref: 92022B
WASHER,PLAIN
€ 3.50
92022C
920221155
ref: 92022C
WASHER,PLAIN,DURACON
€ 3.50
92027
9202711
ref: 92027
UNAVAILABLE IN PRICE BOOK
€ 0.00
92033
920331009
ref: 92033
RING-SNAP
€ 4.50
92037
16008014
ref: 92037
CLAMP,E-TYPE
€ 5.50
92037A
16076003
ref: 92037A
CLAMP
€ 4.50
92037B
920371140
ref: 92037B
CIRCRIP
€ 2.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92063
920631038
ref: 92063
JET-MAIN,#A110
€ 10.50
92064
920641024
ref: 92064
JET-PILOT,#42.5
€ 12.50
92066
920661044
ref: 92066
SCREW,HOLE PLUG
€ 6.00
92066A
920661051
ref: 92066A
US
PLUG,PILOT AIR SCREW,
€ 3.00
92066B
920661064
ref: 92066B
SCREW,DRAIN
€ 8.50
92081
16022016
ref: 92081
SPRING, PILOT SCREW
€ 6.00
92081A
920811126
ref: 92081A
SPRING,JET NEEDLE
€ 4.00
92081B
920811156
ref: 92081B
SPRING,RICHR DIAPHRGM
€ 3.00
92081C
920811163
ref: 92081C
SPRING,STARTER PLNGER
€ 2.50
92093
920931027
ref: 92093
OIL SEAL
€ 3.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
214B0516A
ref: 220A
UNAVAILABLE IN PRICE BOOK
€ 0.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
€ 0.50
