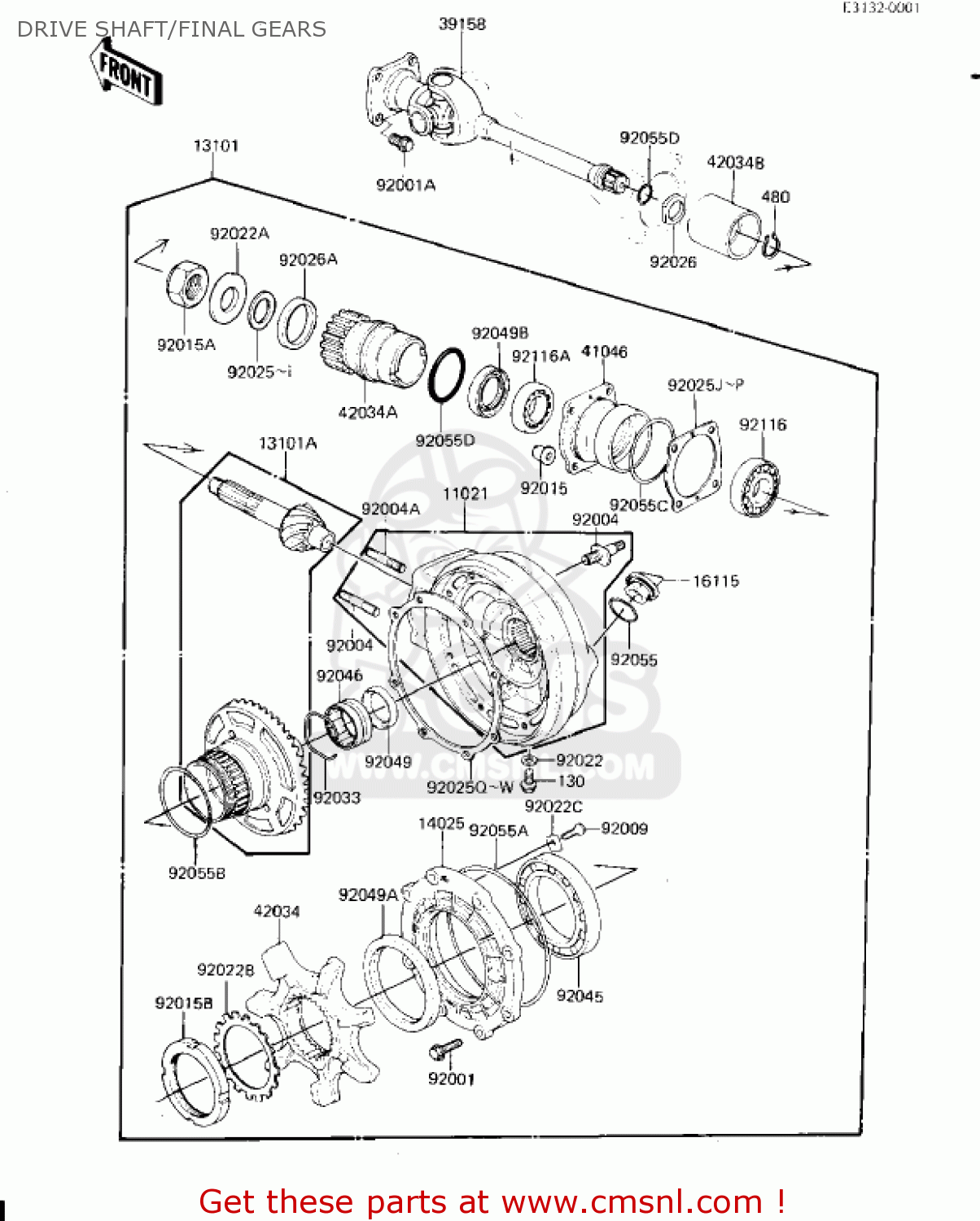

DRIVE SHAFT/FINAL GEARS

ref

part #

description

quantity

11021

110211009
ref: 11021

CASE ASSY,FINAL GEAR

€ 935.50

13101

131011017
ref: 13101

GEAR-ASSY,FINAL

€ 2,273.50

13101A

131015026
ref: 13101A

GEAR-ASSY,FINAL BEVEL

€ 1,279.00

14025

140251066
ref: 14025

COVER,FINAL GEAR CASE

€ 87.50

16115

161151003
ref: 16115

CAP-OIL FILLER

€ 6.50

39158

391581004
ref: 39158

SHAFT-ASSY-DRIVE

€ 548.00

41046

410461008
ref: 41046

HOUSING,BEARING FINAL

€ 152.50

42034

420341007
ref: 42034

COUPLING,REAR HUB

€ 194.50

42034A

420341023
ref: 42034A

COUPLING,PROPELLER SH

€ 81.00

42034B

420341092
ref: 42034B

COUPLING,PROPELLER SH

€ 78.00

92001

920011095
ref: 92001

BOLT,8X28

€ 4.50

92001A

920011139
ref: 92001A

BOLT,12X15,COUPLING

€ 4.50

92004

920041020
ref: 92004

STUD,SHOCK ABSORBER

€ 16.50

92004A

920041021
ref: 92004A

STUD,10X31.5

€ 3.50

92009

920091041
ref: 92009

SCREW,CNTSNK,6X16

€ 2.50

92015

920151415
ref: 92015

NUT,10MM

€ 3.00

92015A

920151059
ref: 92015A

NUT,16MM

€ 7.50

92015B

920151060
ref: 92015B

NUT,RING GEAR,75MM

€ 24.50

92022

920221086
ref: 92022

WASHER,8.2X16X1

€ 2.50

92022A

920221105
ref: 92022A

WASHER,16X32X3.2

€ 7.00

92022B

920221106
ref: 92022B

WASHER,RING GEAR,75MM

€ 6.50

92022C

920221112
ref: 92022C

WASHER,BEARING STOPER

€ 2.50

92025

920251027
ref: 92025

SHIM,16.5X26X1.30

€ 4.50

92025A

920251028
ref: 92025A

SHIM,16.5X26X1.32

€ 6.00

92025B

920251029
ref: 92025B

SHIM,16.5X26X1.34

€ 6.00

92025C

920251030
ref: 92025C

SHIM,16.5X26X1.36

€ 6.00

92025D

920251031
ref: 92025D

SHIM,16.5X26X1.38

€ 6.00

92025E

920251032
ref: 92025E

SHIM,16.5X26X0.10

€ 3.50

92025F

920251033
ref: 92025F

SHIM,16.5X26X0.2

€ 2.50

92025G

920251034
ref: 92025G

SHIM,16.5X26X0.3

€ 2.00

92025H

920251035
ref: 92025H

SHIM,16.5X26X0.50

€ 3.50

92025I

920251036
ref: 92025I

SHIM,16.5X26X0.9

€ 3.00

92025J

920251037
ref: 92025J

SHIM,T=0.60

€ 7.50

92025K

920251038
ref: 92025K

SHIM,T=0.90

€ 9.00

92025L

920251039
ref: 92025L

SHIM,T=1.20

€ 12.00

92025M

920251040
ref: 92025M

SHIM,T=0.10

€ 6.00

92025N

920251041
ref: 92025N

SHIM,T=0.15

€ 6.00

92025O

920251042
ref: 92025O

SHIM,73X0.2

€ 5.50

92025P

920251043
ref: 92025P

SHIM,T=0.30

€ 6.00

92025Q

920251045
ref: 92025Q

SHIM,T=0.60

€ 11.00

92025R

920251046
ref: 92025R

SHIM,168X0.9

€ 8.50

92025S

920251047
ref: 92025S

SHIM,168X1.2

€ 7.00

92025T

920251048
ref: 92025T

SHIM,T=0.10

€ 12.00

92025U

920251049
ref: 92025U

SHIM,T=0.15

€ 11.00

92025V

920251050
ref: 92025V

SHIM,168X0.2

€ 8.00

92025W

920251051
ref: 92025W

SHIM,T=0.30

€ 11.00

92026

920261085
ref: 92026

SPACER,26.2X36X2

€ 5.00

92026A

920261102
ref: 92026A

SPACER,THRUST,26MM

€ 6.50

92033

920331020
ref: 92033

RING-SNAP

€ 2.50

92045

920451020
ref: 92045

BEARING-BALL,16016

€ 158.00

92046

920461020
ref: 92046

BEARING-NEEDLE,TAF435

€ 87.00

92049

920491025
ref: 92049

OIL SEAL,S-35477HS

€ 10.00

92049A

920491026
ref: 92049A

OIL SEAL,S-901159HS

€ 28.00

92049B

920491082
ref: 92049B

SEAL-OIL,SC32558

€ 10.00

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92055A

920551030
ref: 92055A

RING-O,159MM

€ 6.00

92055B

920551031
ref: 92055B

RING-O,75MM

€ 6.00

92055C

920551032
ref: 92055C

RING-O,67MM

€ 7.50

92055D

920551037
ref: 92055D

RING-O,ID=32.7

€ 2.50

92116

921161002
ref: 92116

BEARING-ROLLER,4T3030

€ 39.00

92116A

921161003
ref: 92116A

BEARING,R,4T-30205

€ 41.00

130

130B0812
ref: 130

BOLT,FLANGED,8X12

€ 0.50

480

480J2600
ref: 480

CIRCLIP-TYPE-C,26MM

€ 1.50

all assemblies
