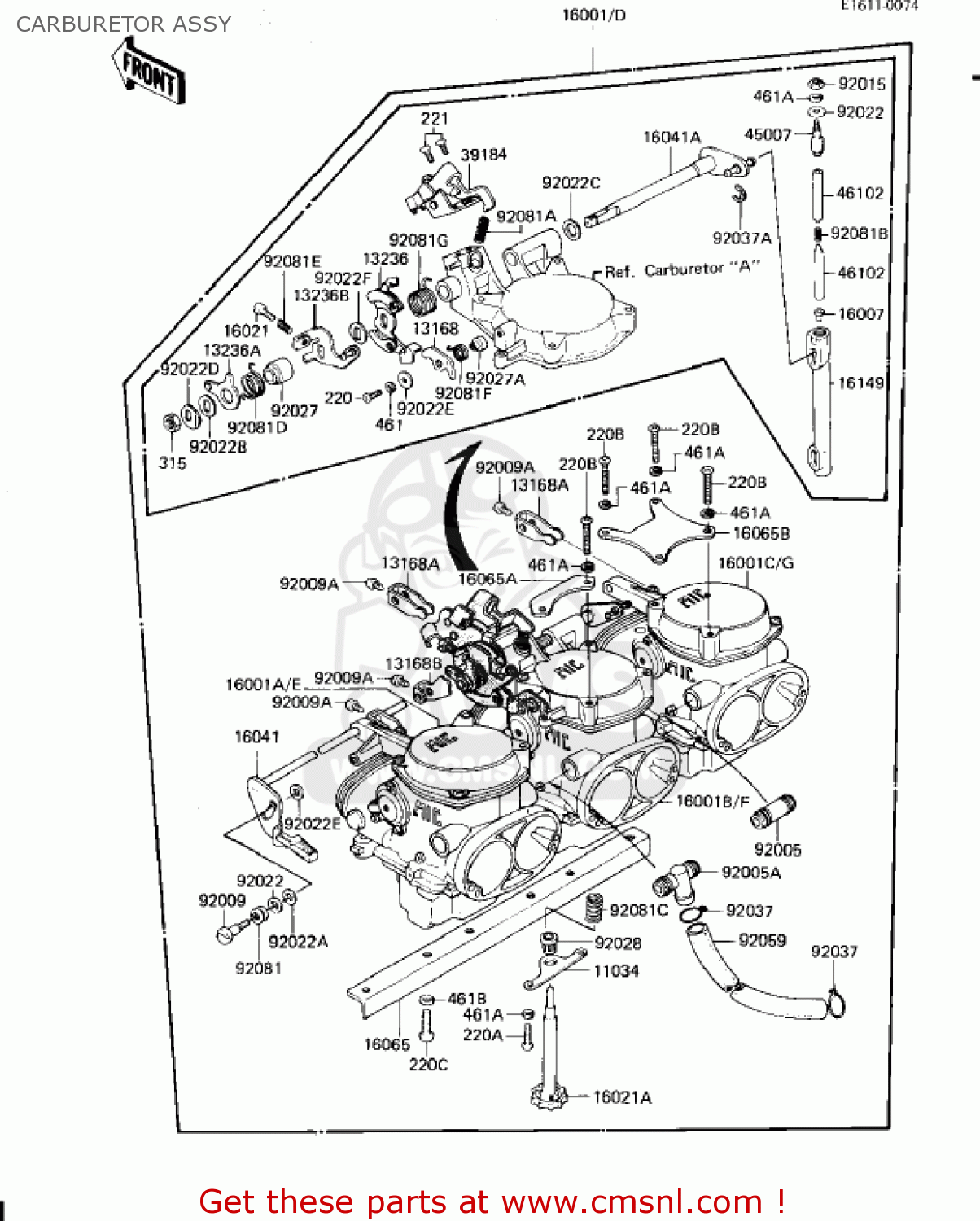

CARBURETOR ASSY

ref

part #

description

quantity

11034

110341514
ref: 11034

BRACKET,THRTL STP SCR

€ 7.50

13168

131681043
ref: 13168

LEVER,THRTL STOP SCRW

€ 6.00

13168A

131681044
ref: 13168A

LEVER,STARTER PLUNGER

€ 8.50

13168B

131681045
ref: 13168B

LEVER,CHOKE LINK

€ 10.00

13236

132361016
ref: 13236

PULLY,THROTTLE CABLE

€ 22.50

13236A

132361017
ref: 13236A

LEVER,CHOKE LINK

€ 6.50

13236B

132361018
ref: 13236B

LEVER,THROTTLE

€ 14.00

16001

160011211
ref: 16001
US

CARBURETOR ASSEMBLY

€ 1,064.50

16001A

160011247
ref: 16001A
US

CARBURETOR,LH

€ 373.00

16001B

160011248
ref: 16001B
US

CARBURETOR,CENTER

€ 392.00

16001C

160011249
ref: 16001C
US

CARBURETOR,RH

€ 392.00

16001D

160011262
ref: 16001D
CN

CARBURETOR ASSY

€ 2,204.50

16001E

160011263
ref: 16001E
CN

CARBURETOR,L.H

€ 778.50

16001F

160011264
ref: 16001F
CN

CARBURETOR,CENTER

€ 778.50

16001G

160011265
ref: 16001G
CN

CARBURETOR,R.H

€ 778.50

16007

16057002
ref: 16007

SEAT-SPRING

€ 6.00

16021

16021020
ref: 16021

SCREW-THROTTLE STOP

€ 13.00

16021A

160211013
ref: 16021A

SCREW-THROTTLE STOP

€ 40.50

16041

160411006
ref: 16041

SHAFT,STARTER PLUNGER

€ 39.50

16041A

160411007
ref: 16041A

SHAFT,THROTTLE LEVER

€ 45.00

16065

160651021
ref: 16065

PLATE,STAY

€ 28.00

16065A

160651022
ref: 16065A

STAY,CARBURETOR HEAD

€ 7.50

16065B

160651023
ref: 16065B

STAY,CARBURETOR HEAD

€ 9.50

16149

161491006
ref: 16149

ROD,THROTTLE

€ 18.00

39184

391841002
ref: 39184

BRACKET,THRTL CBL PLY

€ 37.50

45007

450071002
ref: 45007

SCREW

€ 7.00

46102

461021008
ref: 46102

PIN,THROTTLE ROD

€ 4.50

92005

920051018
ref: 92005

NIPPLE,FUEL

€ 7.50

92005A

920051019
ref: 92005A

FITTING,FUEL HOSE

€ 9.00

92009

16046005
ref: 92009

SCREW

€ 4.50

92009A

16046007
ref: 92009A

SCREW,PAN HEAD,5X7

€ 6.50

92015

16003013
ref: 92015

NUT,5M/M

€ 6.00

92022

16039020
ref: 92022

WASHER,PLAIN

€ 3.50

92022A

920221147
ref: 92022A

WASHER,PLAIN,DURACON

€ 5.00

92022B

920221148
ref: 92022B

WASHER,PLAIN

€ 2.50

92022C

920221149
ref: 92022C

WASHER,PLAIN,DURACON

€ 2.50

92022D

920221151
ref: 92022D

WASHER,LOCK

€ 2.50

92022E

920221152
ref: 92022E

WASHER,PLAIN

€ 2.50

92022F

920221153
ref: 92022F

WASHER,PLAIN

€ 2.50

92027

920271201
ref: 92027

COLLAR,CHOKE LINK

€ 5.50

92027A

920271203
ref: 92027A

COLLAR,STEPPED

€ 5.00

92028

920281071
ref: 92028

BUSHING,IDLING ADJUST

€ 4.50

92037

920371184
ref: 92037

CLAMP,HOSE

€ 1.00

92037A

920371139
ref: 92037A

CIRCLIP,ROCKER ARM

€ 4.00

92059

920591123
ref: 92059

TUBE,7.5X12.5X225

€ 17.00

92081

16040009
ref: 92081

SPRING,F

€ 6.50

92081A

16040022
ref: 92081A

SPRING,CABLE PLY BKT

€ 6.00

92081B

16040026
ref: 92081B

SPRING

€ 3.50

92081C

920811155
ref: 92081C

SPRING,THRTL STP SCRW

€ 1.50

92081D

920811157
ref: 92081D

SPRING,CHOKE LINK

€ 6.00

92081E

920811160
ref: 92081E

SPRING,ADJUSTER SCREW

€ 2.50

92081F

920811161
ref: 92081F

SPRING,THRTL STP SCRW

€ 6.00

92081G

920811162
ref: 92081G

SPRING,THRTL CBL PULY

€ 7.00

220

220B0416
ref: 220

SCREW-PAN-CROS

€ 2.00

220A

220B0518
ref: 220A

SCREW-PAN HEAD,5X18

€ 2.50

220B

220B0530
ref: 220B

SCREW-PAN-CROS

€ 2.00

220C

220B0612
ref: 220C

SCREW-PAN HEAD,6X12

€ 1.00

221

221B0510A
ref: 221

SCREW-CNTSNK HD,5X10

€ 2.50

315

315G0800
ref: 315

NUT,8MM

€ 2.00

461

461F0400
ref: 461

WASHER-SPRING,4MM

€ 0.50

461A

461F0500
ref: 461A

WASHER-SPRING,5MM

€ 0.50

461B

461F0600
ref: 461B

WASHER-SPRING,6MM

€ 0.50
