CRANKCASE
KZ1300A4 1982 USA CANADA

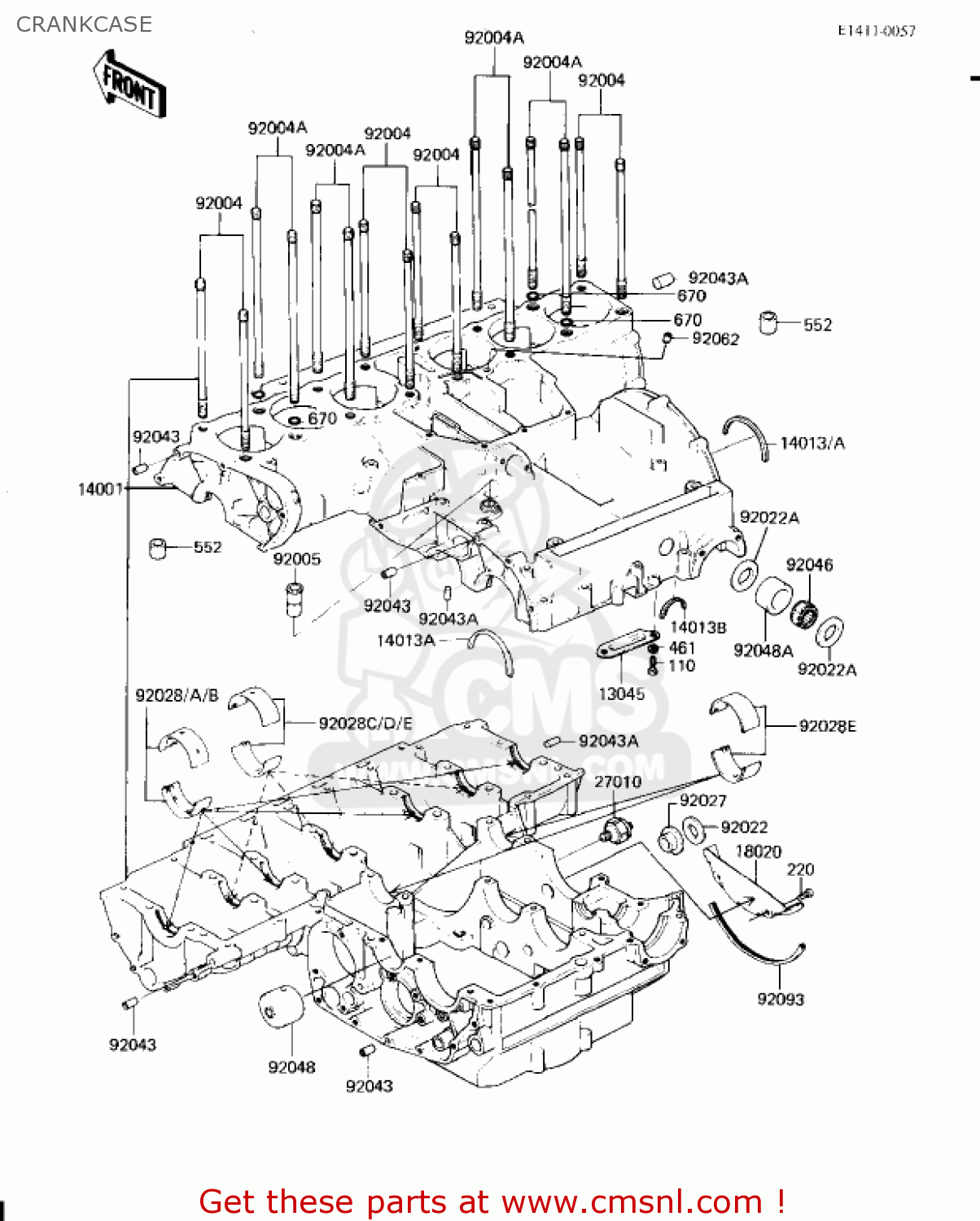

Crankcase diagram KZ1300A4 1982 USA CANADA
CRANKCASE KZ1300A4 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13045
130451002
ref: 13045
RECEIVER-OIL
€ 2.50
14001
140015110
ref: 14001
SET-CRANKCASE
€ 1,879.50
14013
14013013
ref: 14013
RING-POSITION,T=1.90
€ 7.50
14013A
140131004
ref: 14013A
RING-POSITION,CRANK
€ 3.00
14013B
140131007
ref: 14013B
RING-POSITION
€ 2.00
18020
180201022
ref: 18020
BAFFLE
€ 9.00
27010
16144006
ref: 27010
SWITCH,OIL PRESSURE
€ 28.00
92004
92004062
ref: 92004
STUD, 10X153
€ 13.50
92004A
920041019
ref: 92004A
STUD,10X195
€ 9.00
92005
14067006
ref: 92005
BREATHER JOINT
€ 14.00
92022
920221279
ref: 92022
WASHER,THRUST,10MM
€ 2.50
92022A
920221280
ref: 92022A
WASHER,THRUST,20.5MM
€ 2.50
92027
920271387
ref: 92027
COLLAR,L=6MM
€ 10.50
92028
920281103
ref: 92028
BUSHING,MAIN JOURNAL,
€ 9.50
92028A
920281104
ref: 92028A
BUSHING,MAIN JOURNAL,
€ 10.00
92028B
920281105
ref: 92028B
BUSHING,MAIN JOURNAL,
€ 9.50
92028C
920281106
ref: 92028C
BUSHING,MAIN JOURNAL,
€ 9.50
92028D
920281107
ref: 92028D
BUSHING,MAIN JOURNAL,
€ 9.50
92028E
920281108
ref: 92028E
BUSHING,MAIN JOURNAL,
€ 9.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
92042016
ref: 92043A
PIN,DOWEL,6X16
€ 3.50
92046
920461042
ref: 92046
BEARING-NEEDLE,TK2028
€ 29.00
92048
920481008
ref: 92048
RACE,DRIVE SHAFT,LH
€ 44.00
92048A
920481018
ref: 92048A
RACE
€ 23.00
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92093
920931040
ref: 92093
SEAL
€ 3.00
110
112G0616
ref: 110
BOLT UPSET,6X16
€ 1.00
220
220B0610
ref: 220
SCREW-PAN HEAD,6X10
€ 2.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
552
552B1012
ref: 552
PIN,DOWEL,6.5X10X12
€ 1.00
670
670B2012
ref: 670
O RING,12MM
€ 1.00
