CYLINDER HEAD COVER
KZ1300A4 1982 USA CANADA

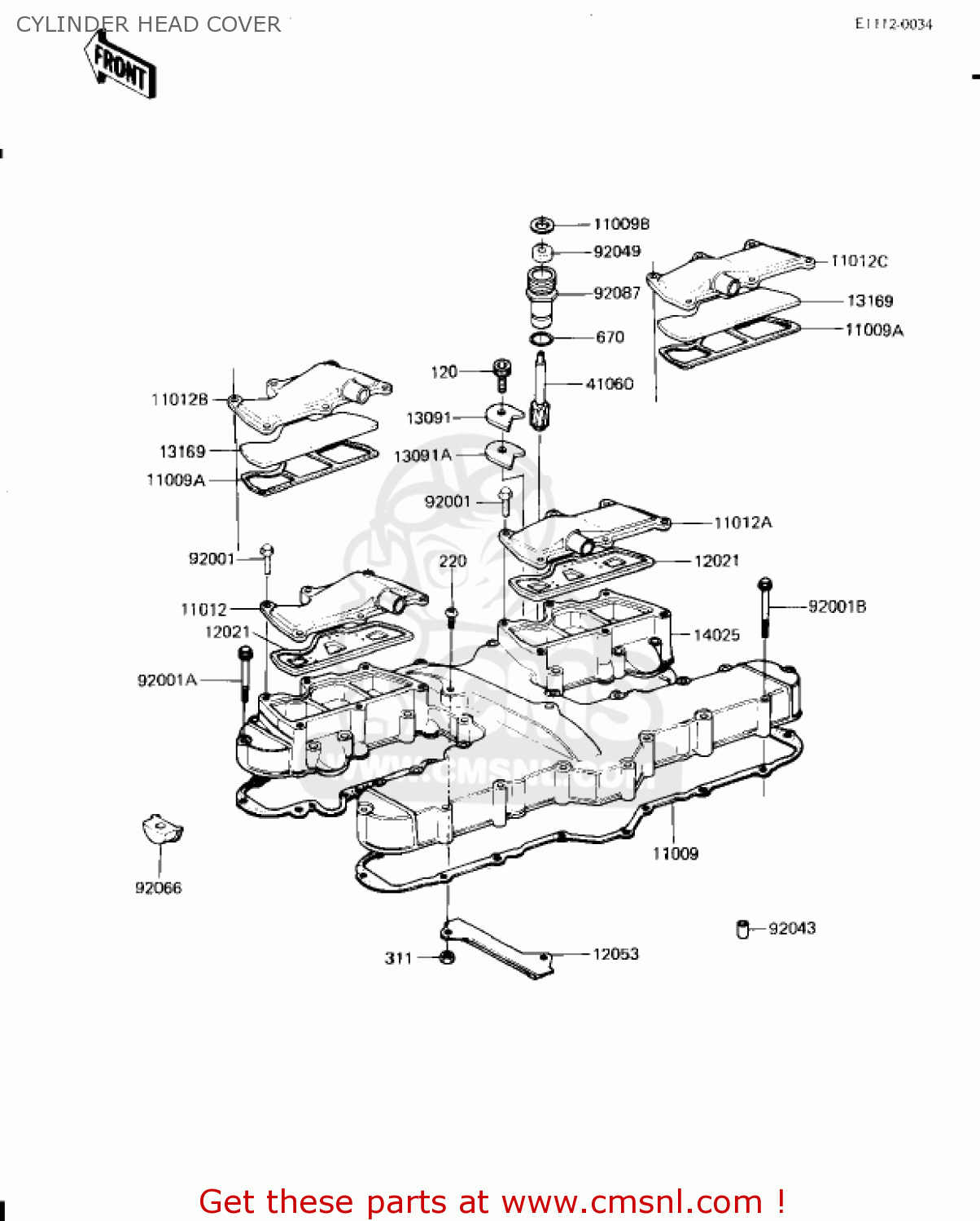

Cylinder head cover diagram KZ1300A4 1982 USA CANADA
CYLINDER HEAD COVER KZ1300A4 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091095
ref: 11009
GASKET,CYL HEAD COVER (MCA)
€ 104.50
11009A
110091170
ref: 11009A
CN
GASKET (MCA)
€ 7.00
11009B
92065103
ref: 11009B
GASKET,TACHOMETER GER (NAS)
€ 2.50
11012
110121057
ref: 11012
US
REED VALVE CAP,LH
€ 23.50
11012A
110121058
ref: 11012A
US
REED VALVE CAP,RH
€ 20.50
11012B
110121107
ref: 11012B
CN
CAP,LH
€ 28.00
12021C
110121108
ref: 12021C
CN
CAP,RH
€ 28.00
12021
120211004
ref: 12021
US
REED VALVE ASSEMBLY
€ 91.00
12053
120531026
ref: 12053
GUIDE,CHAIN,CAM
€ 20.50
13091
130911008
ref: 13091
HOLDER, TACHOMETER
€ 2.50
13091A
130911009
ref: 13091A
HOLDER, TACHOMETER
€ 2.50
13169
131691221
ref: 13169
CN
PLATE
€ 7.50
14025
140251312
ref: 14025
COVER,CYLINDER HEAD,S
€ 353.50
41060
13223011
ref: 41060
GEAR,TACHOMETER, 10T
€ 63.00
92001
920011100
ref: 92001
BOLT,HEX HEAD,6X20
€ 3.00
92001A
920011192
ref: 92001A
BOLT,HEX HEAD,6X52
€ 4.00
92001B
92003092
ref: 92001B
BOLT-HEX HEAD,6X45
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92049
92050075
ref: 92049
OIL SEAL,TACHOMETER
€ 7.50
92066
920661030
ref: 92066
PLUG,CAMSHAFT,
€ 10.50
92087
92087010
ref: 92087
GUIDE,TACHOMETER GEAR
€ 16.50
120
120P0614
ref: 120
BOLT,6X14
€ 3.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
670
670D1510
ref: 670
O RING,10MM
€ 3.00
