CHASSIS ELECTRICAL EQUIPMENT
KZ1300A4 1982 USA CANADA

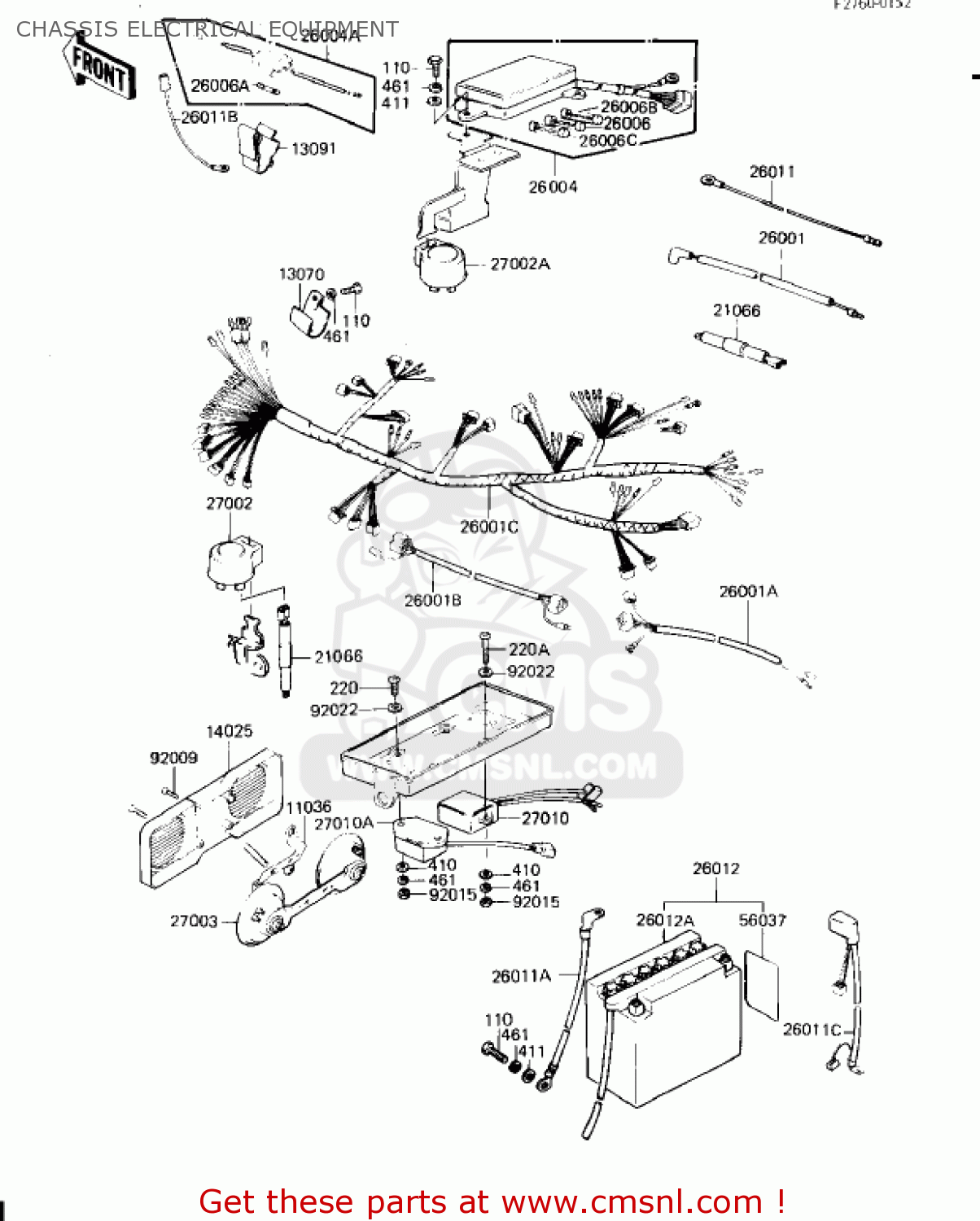

Chassis electrical equipment diagram KZ1300A4 1982 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KZ1300A4 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361028
ref: 11036
BRACKET-A,HORN
€ 10.00
13070
130701022
ref: 13070
GUIDE,MAIN HARNESS
€ 6.00
13091
130911102
ref: 13091
HOLDER,ACCESSORY FUSE
€ 14.00
14025
140251310
ref: 14025
COVER,HORN
€ 26.00
21066
21066026
ref: 21066
REGULATOR-VOLTAGE
€ 13.00
26001
260011064
ref: 26001
WIRING HARNESS,SUB
€ 6.00
26001A
260011374
ref: 26001A
REGULATOR HARNESS
€ 13.50
26001B
260011375
ref: 26001B
WARNING HARNESS
€ 9.00
26001C
260011379
ref: 26001C
HARNESS,MAIN
€ 166.00
26004
260041009
ref: 26004
FUSE ASSY
€ 55.00
26004A
260041018
ref: 26004A
FUSE-ASSY
€ 40.50
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
260061002
ref: 26006A
FUSE,10A,L=30M/M
€ 3.00
26006B
260061004
ref: 26006B
FUSE,2A,L=25M/M
€ 2.50
26006C
260061005
ref: 26006C
FUSE,30A,L=25M/M
€ 3.00
26011
26011095
ref: 26011
WIRE-LEAD,L=285
€ 8.00
26011A
260111038
ref: 26011A
WIRE-LEAD,BATTERY,(-)
€ 24.00
26011B
260111100
ref: 26011B
WIRE-LEAD,ACCESSORY G
€ 7.00
26011C
260111160
ref: 26011C
WIRE-LEAD,BATTERY
€ 18.00
26012
260121012
ref: 26012
US
BATTERY,12V 20AH
€ 79.50
26012A
260121019
ref: 26012A
CN
BATTERY,12V20AH
€ 79.50
27002
27002011
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 69.50
27002A
27002016
ref: 27002A
RELAY-ASSY,HAZARD
€ 26.50
27003
270031037
ref: 27003
HORN
€ 124.50
27010
270101016
ref: 27010
SWITCH,TURN SIGNAL OP
€ 137.50
27010A
270101024
ref: 27010A
SWITCH,RESERV LIGHTIN
€ 149.00
56037
560401036
ref: 56037
US
WARNING, BATTERY
€ 2.00
92009
221C0430
ref: 92009
SCREW-CSK-CROS
€ 2.00
92015
92017014
ref: 92015
NUT,LOCK,6MM
€ 4.00
92022
92022024
ref: 92022
WASHER,7X16X1.2
€ 2.50
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
220A
220B0635
ref: 220A
SCREW-PAN HEAD,6X35
€ 1.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
