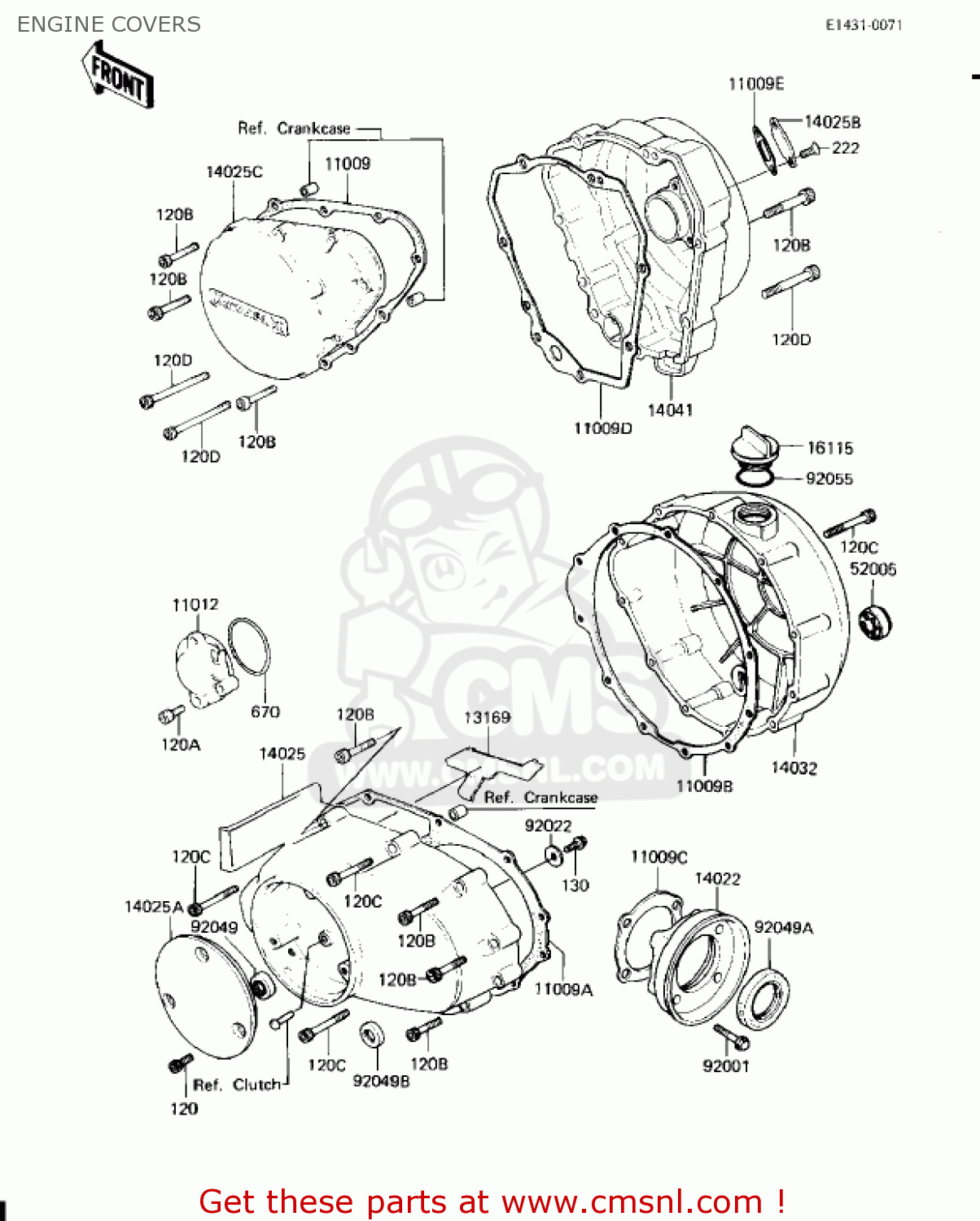

ENGINE COVERS

ref

part #

description

quantity

11009

110091090
ref: 11009

GASCKET,L.H.ENG COVER (MCA)

€ 14.00

11009A

110091091
ref: 11009A

GASKET,MISSON COVER (MCA)

€ 19.00

11009B

110091092
ref: 11009B

GASKET,CLUTCH COVER (MCA)

€ 18.50

11009C

110091159
ref: 11009C

GASKET,BEARING CAP (NAS)

€ 6.00

11009D

110091269
ref: 11009D

GASKET,GENERATOR COVE (MCA)

€ 9.50

11009E

110091270
ref: 11009E

GASKET,OIL INSPECTION (MCA)

€ 9.50

11012

110121060
ref: 11012

CAP,TIMING SPROCKET

€ 18.00

13169

131691131
ref: 13169

PLATE,BAFFLE,BREATHER

€ 15.50

14022

140221005
ref: 14022

CAP-BEARING,OUTLET SH

€ 27.00

14025

140251313
ref: 14025

COVER,MISSION

€ 161.50

14025A

140251314
ref: 14025A

COVER,RELEASE

€ 22.00

14025B

140251467
ref: 14025B

COVER,OIL INSPECTION

€ 11.50

14025C

140251703
ref: 14025C

COVER,LH,GENERATOR

€ 225.50

14032

140321053
ref: 14032

COVER,CLUTCH

€ 251.00

14041

140411024
ref: 14041

COVER-COMP,GENERATOR

€ 234.00

16115

16115013
ref: 16115

PLUG-OIL FILLER

€ 13.50

52005

520051017
ref: 52005

GAUGE,OIL LEVEL

€ 39.00

92001

92003202
ref: 92001

BOLT

€ 4.00

92022

42046008
ref: 92022

WASHER,6.5X24X1.2

€ 2.00

92049

920491037
ref: 92049

OIL SEAL,TC14244.8

€ 6.50

92049A

920491038
ref: 92049A

OIL SEAL,TC35527

€ 12.50

92049B

92051005A
ref: 92049B

OIL SEAL,TB13225.5

€ 5.50

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

120

120P0612
ref: 120

BOLT,SOCKET,6X12

€ 1.00

120A

120P0614
ref: 120A

BOLT,6X14

€ 3.00

120B

120P0635
ref: 120B

BOLT,SOCKET,6X35

€ 1.50

120C

120P0645
ref: 120C

BOLT,SOCKET,6X45

€ 1.50

120D

120P0650
ref: 120D

BOLT,SOCKET,6X50

€ 3.00

130

130G0614
ref: 130

BOLT,FLANGED,6X14

€ 0.50

222

222E0510
ref: 222

SCREW-OVL CNTSNK,5X10

€ 2.00

670

670B3045
ref: 670

O RING,45MM

€ 2.50
