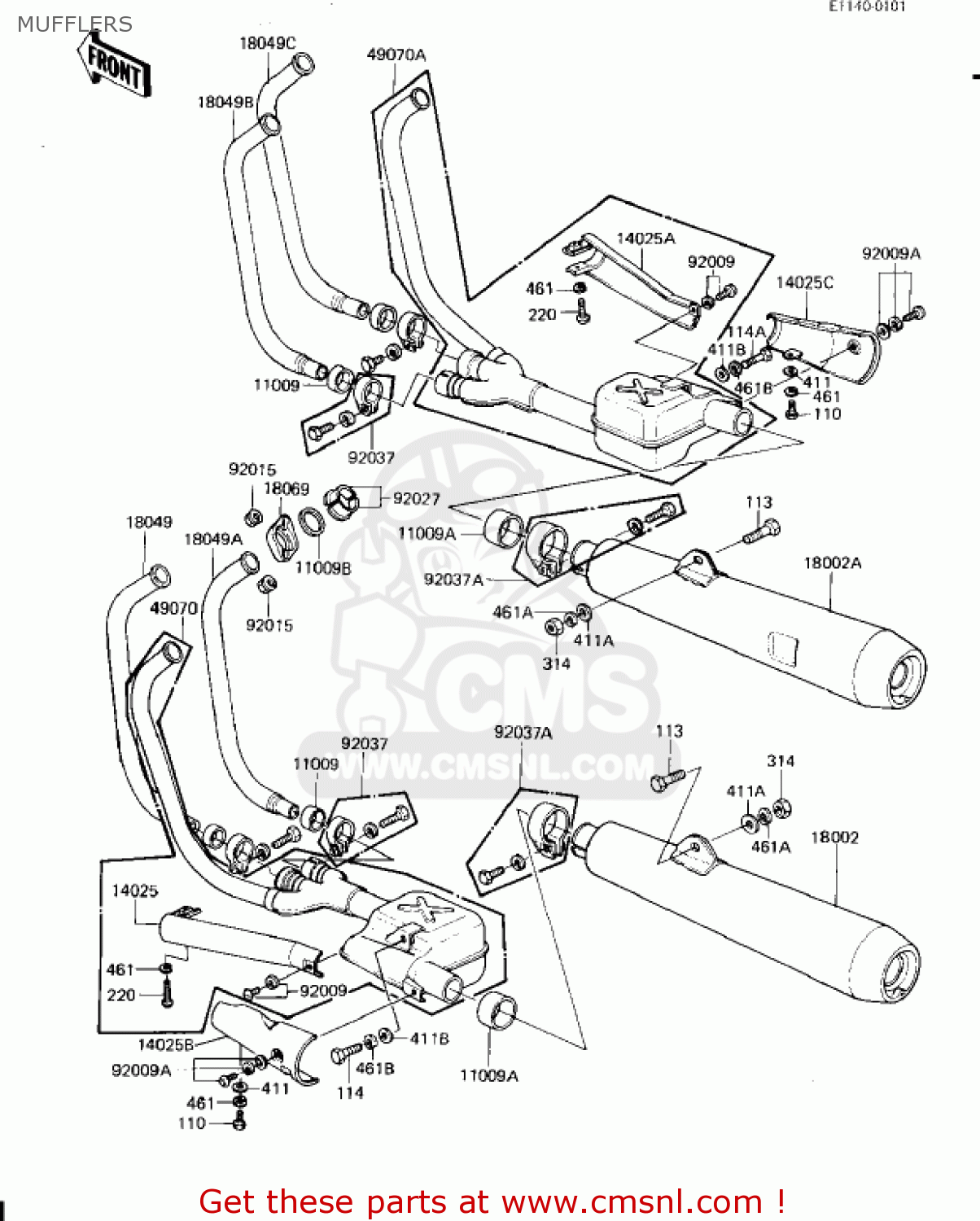

MUFFLERS

ref

part #

description

quantity

11009

110601051
ref: 11009

GASKET,MUFFLER CONNEC (NAS)

€ 15.00

11009A

110091666
ref: 11009A

GASKET,EXHAUST PIPE C (NAS)

€ 20.50

11009B

110091866
ref: 11009B

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

14025

140251147
ref: 14025

COVER,MUFFLER,L.H,FRT

€ 22.50

14025A

140251148
ref: 14025A

COVER,MUFFLER,FR,RH

€ 33.50

14025B

140251149
ref: 14025B

COVER,MUFFLER,RR,LH

€ 33.50

14025C

140251150
ref: 14025C

COVER,MUFFLER,RR,RH

€ 33.50

18002

180021375
ref: 18002

BODY-COMP-MUFFLER,LH

€ 425.50

18002A

180021376
ref: 18002A

BODY-COMP-MUFFLER,RH

€ 425.50

18049

180491164
ref: 18049

PIPE-EXHAUST,#2

€ 139.00

18049A

180491165
ref: 18049A

PIPE-EXHAUST,#3

€ 139.00

18049B

180491166
ref: 18049B

PIPE-EXHAUST,#4

€ 139.00

18049C

180491167
ref: 18049C

PIPE-EXHAUST,#5

€ 139.00

18069

180691010
ref: 18069

HOLDER-EXHAUST PIPE

€ 12.50

49070

490701101
ref: 49070

MUFFLER-COMP,LH

€ 318.00

49070A

490701102
ref: 49070A

MUFFLER-COMP,RH

€ 318.00

92009

920091088
ref: 92009

SCREW,6X12

€ 2.00

92009A

920091098
ref: 92009A

SCREW,6X10

€ 2.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92027

920271142
ref: 92027

COLLAR,L=14.5

€ 3.00

92037

920371243
ref: 92037

CLAMP,37MM

€ 18.00

92037A

920371228
ref: 92037A

CLAMP,POWER CHAMBER

€ 11.50

110

112G0612
ref: 110

BOLT-UPSET

€ 2.50

113

920011253
ref: 113

BOLT,HEX HEAD,10X40

€ 5.50

114

114N0825
ref: 114

BOLT-SMALL,8X25

€ 2.50

114A

114N0855
ref: 114A

BOLT-SMALL,8X55

€ 3.50

220

220B0640
ref: 220

SCREW-PAN HEAD,6X40

€ 2.00

314

314B1000
ref: 314

NUT,10MM

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

411A

411B1000
ref: 411A

WASHER-PLAIN,10MM

€ 0.50

411B

411D0800
ref: 411B

WASHER,PLAIN,8MM

€ 2.00

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.50

461B

461S0800
ref: 461B

WASHER,SPRING,8M/M

€ 0.50

all assemblies
