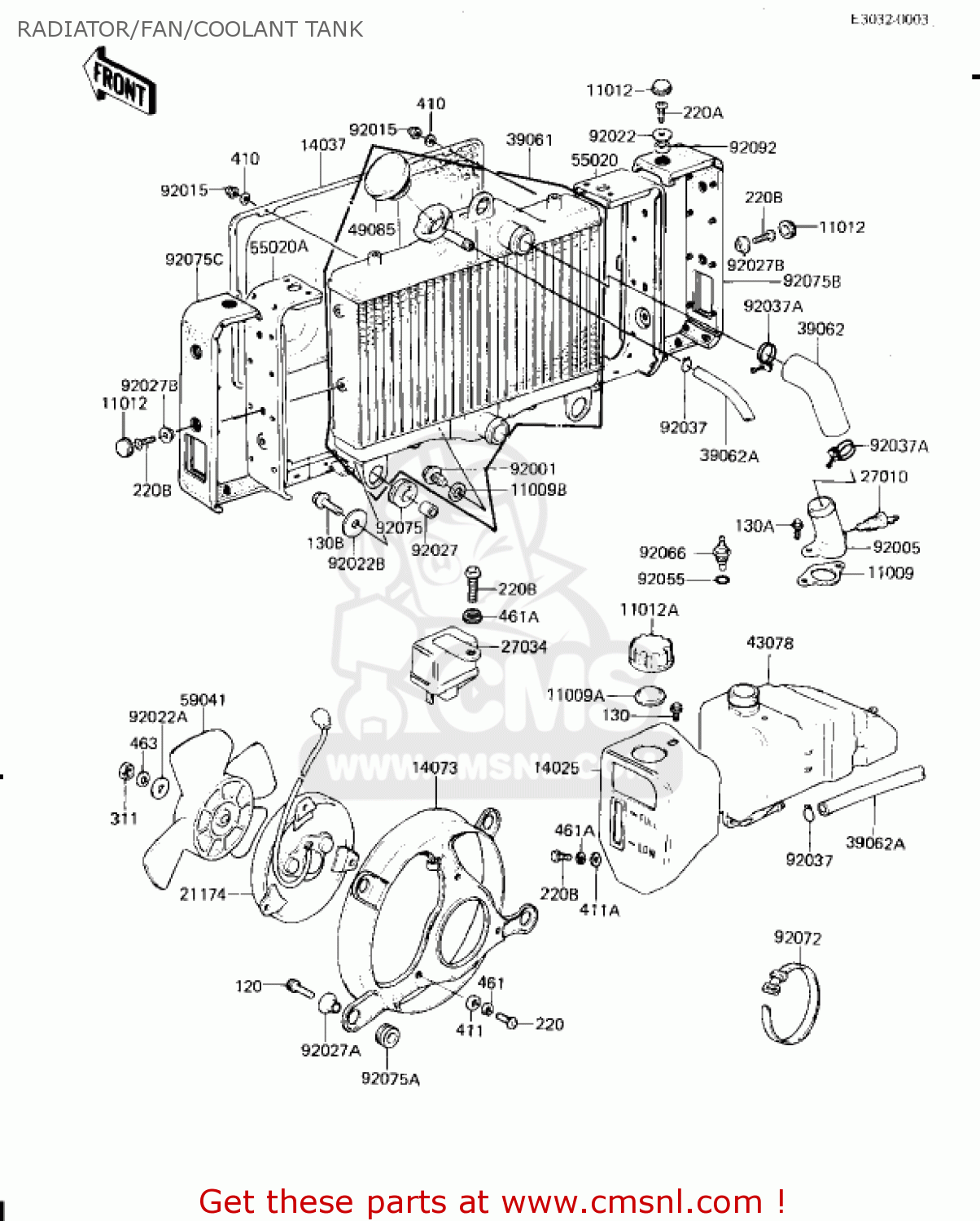

RADIATOR/FAN/COOLANT TANK

ref

part #

description

quantity

11009

110091100
ref: 11009

GASKET,HOSE FITTING (MCA)

€ 2.50

11009A

110091145
ref: 11009A

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11009B

110091152
ref: 11009B

GASKET,DRAIN BOLT (NAS)

€ 4.50

11012

110121077
ref: 11012

CAP,RADIATOR GUARD

€ 2.50

11012A

110121084
ref: 11012A

CAP

€ 1.50

14025

140251152
ref: 14025

COVER,RESERVER TANK

€ 16.00

14037

140371001
ref: 14037

SCREEN,RADIATOR

€ 49.00

14073

140731014
ref: 14073

SHROUD,FAN

€ 112.00

21174

211741001
ref: 21174

MOTOR-ELECTRIC,FAN

€ 506.00

27010

270101036
ref: 27010

SWITCH,FAN

€ 75.00

27034

270341002
ref: 27034

RELAY,FAN

€ 54.00

39061

390611053
ref: 39061

RADIATOR-ASSY

€ 745.50

39062

390621002
ref: 39062

HOSE,COOLING,RADIATOR

€ 19.00

39062A

390621003
ref: 39062A

HOSE,COOLNG,7X12X1500

€ 16.50

43078

430781007
ref: 43078

RESERVOIR,TANK

€ 67.50

49085

490851051
ref: 49085

CAP-ASSY-PRESSURE,RAD

€ 31.00

55020

550201036
ref: 55020

GUARD,RADIATOR,RH

€ 75.50

55020A

550201037
ref: 55020A

GUARD,RADIATOR,LH

€ 75.50

59041

590411001
ref: 59041

FAN,COOLING

€ 80.00

92001

920021682
ref: 92001

BOLT,RADIATOR DRAIN

€ 13.50

92005

920051012
ref: 92005

FITTING,UPPER HOSE

€ 22.50

92015

322C0600
ref: 92015

NUT-CAP,6MM,BLACK

€ 1.50

92022

42046008
ref: 92022

WASHER,6.5X24X1.2

€ 2.00

92022A

920221089
ref: 92022A

WASHER,FAN

€ 2.50

92022B

92022298
ref: 92022B

WASHER,8.5X35X2.3

€ 9.50

92027

920271141
ref: 92027

COLLAR,12.7X15.9X12.5

€ 2.50

92027A

920271188
ref: 92027A

COLLAR,FAN

€ 3.50

92027B

920271189
ref: 92027B

COLLAR,L=9

€ 3.50

92037

920371104
ref: 92037

CLAMP,HOSE

€ 1.00

92037A

920371177
ref: 92037A

CLAMP,HOSE

€ 6.00

92055

92055073
ref: 92055

RING-O,13.5MM

€ 6.50

92066

920661028
ref: 92066

SENDER,WATER TEMPERAT

€ 38.00

92072

92072056
ref: 92072

BAND,RUBBER

€ 3.00

92075

920751127
ref: 92075

DAMPER,RADIATOR

€ 3.50

92075A

920751167
ref: 92075A

DAMPER

€ 3.50

92075B

920751210
ref: 92075B

RADIATOR DAMPER,RH

€ 27.50

92075C

920751211
ref: 92075C

RADIATOR DAMPER,LH

€ 33.00

92092

920921005
ref: 92092

BUSHING-RUBBER,14X22X

€ 2.50

120

120P0620
ref: 120

BOLT-HEX HEAD,6X20

€ 0.50

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130B625
ref: 130A

UNAVAILABLE IN PRICE BOOK

€ 0.00

130B

130B0825
ref: 130B

BOLT,FLANGED,8X25

€ 1.00

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

220A

220B0610
ref: 220A

SCREW-PAN HEAD,6X10

€ 2.00

220B

220B0616
ref: 220B

SCREW-PAN HEAD,6X16

€ 2.50

311

311B0500
ref: 311

NUT-HEX

€ 0.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

411

411B0500
ref: 411

WASHER-PLAIN,5MM

€ 0.50

411A

411B0600
ref: 411A

WASHER-PLAIN,6MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

463

463H0500
ref: 463

WASHER-TOOTHED,5MM

€ 1.50
