TAILLIGHT ('74-'75)
KV100-A7 1976 USA CALIFORNIA

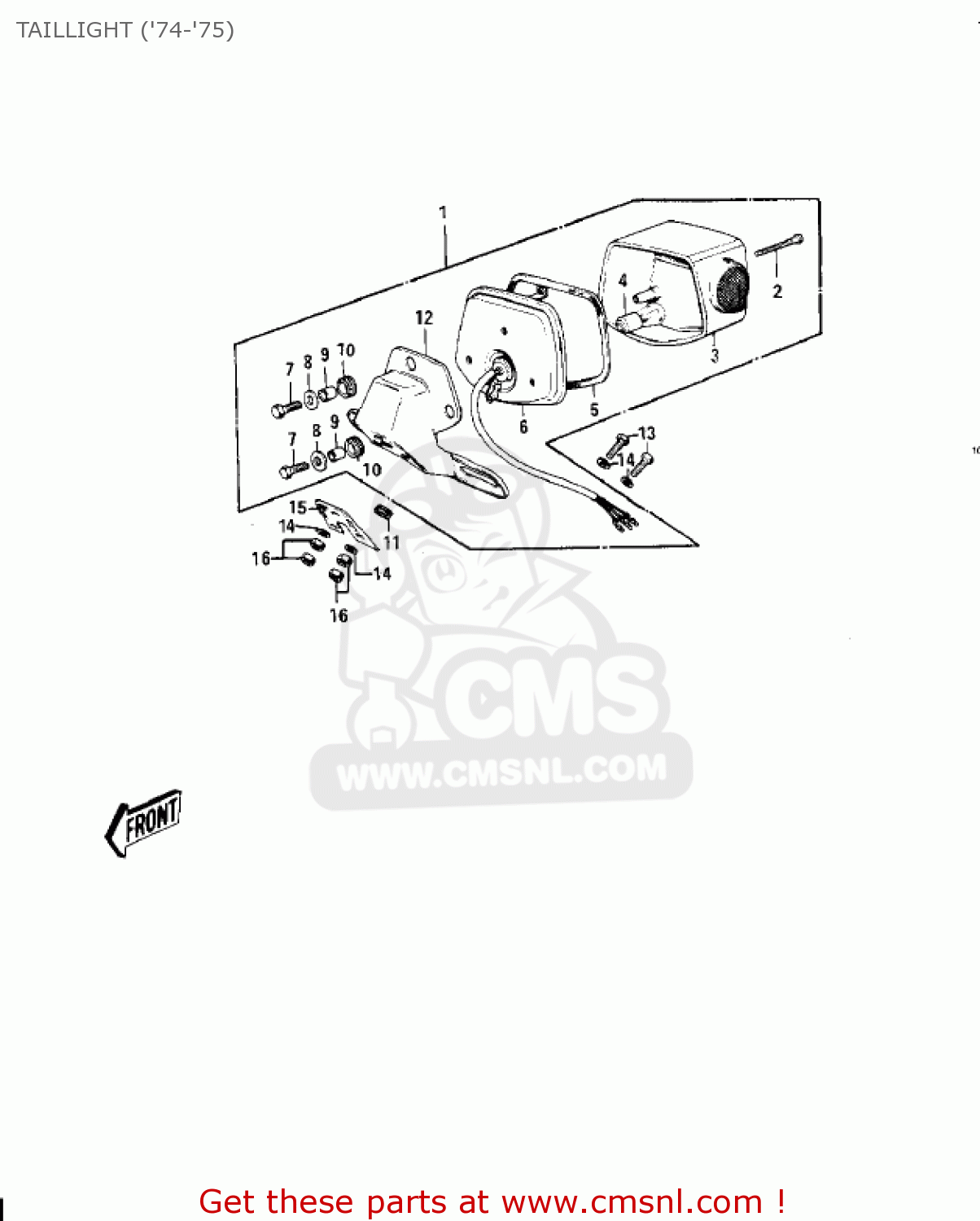

Taillight ('74-'75) diagram KV100-A7 1976 USA CALIFORNIA
TAILLIGHT ('74-'75) KV100-A7 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
23024044
ref: 1
TAIL LAMP ASSEMBLY
€ 297.00
2
220R0455
ref: 2
SCREW-PAN-CROS
€ 3.50
3
23026028
ref: 3
LENS,TAIL LAMP,W/REFL
€ 48.50
4
92069074
ref: 4
BULB,6V-32X3CP
€ 4.50
5
23028019
ref: 5
GASKET,TAIL LAMP LENS (NAS)
€ 5.50
6
230271018
ref: 6
TAIL LAMP BODY,COMPLETE
€ 55.00
7
112G0620
ref: 7
BOLT 6X20
€ 1.00
8
92022193
ref: 8
WASHER,6.5X20X1.6,WHI
€ 3.50
9
92027129
ref: 9
COLLAR,6.8X10X8.5
€ 3.00
10
92075076
ref: 10
DAMPER
€ 3.00
11
92071019
ref: 11
GROMMET,10MM
€ 2.50
12
23036035
ref: 12
TAIL LAMP BRACKET
€ 203.50
13
112G0630
ref: 13
BOLT-UPSET
€ 1.00
14
92022125
ref: 14
WASHER,6.5X20X1.6
€ 1.00
15
35039005
ref: 15
DAMPER,TAIL LAMP
€ 6.50
16
312B0600
ref: 16
NUT,6MM
€ 0.50
