CHASSIS ELECTRICAL EQUIPMENT ('7
KV100-A7 1976 USA CALIFORNIA

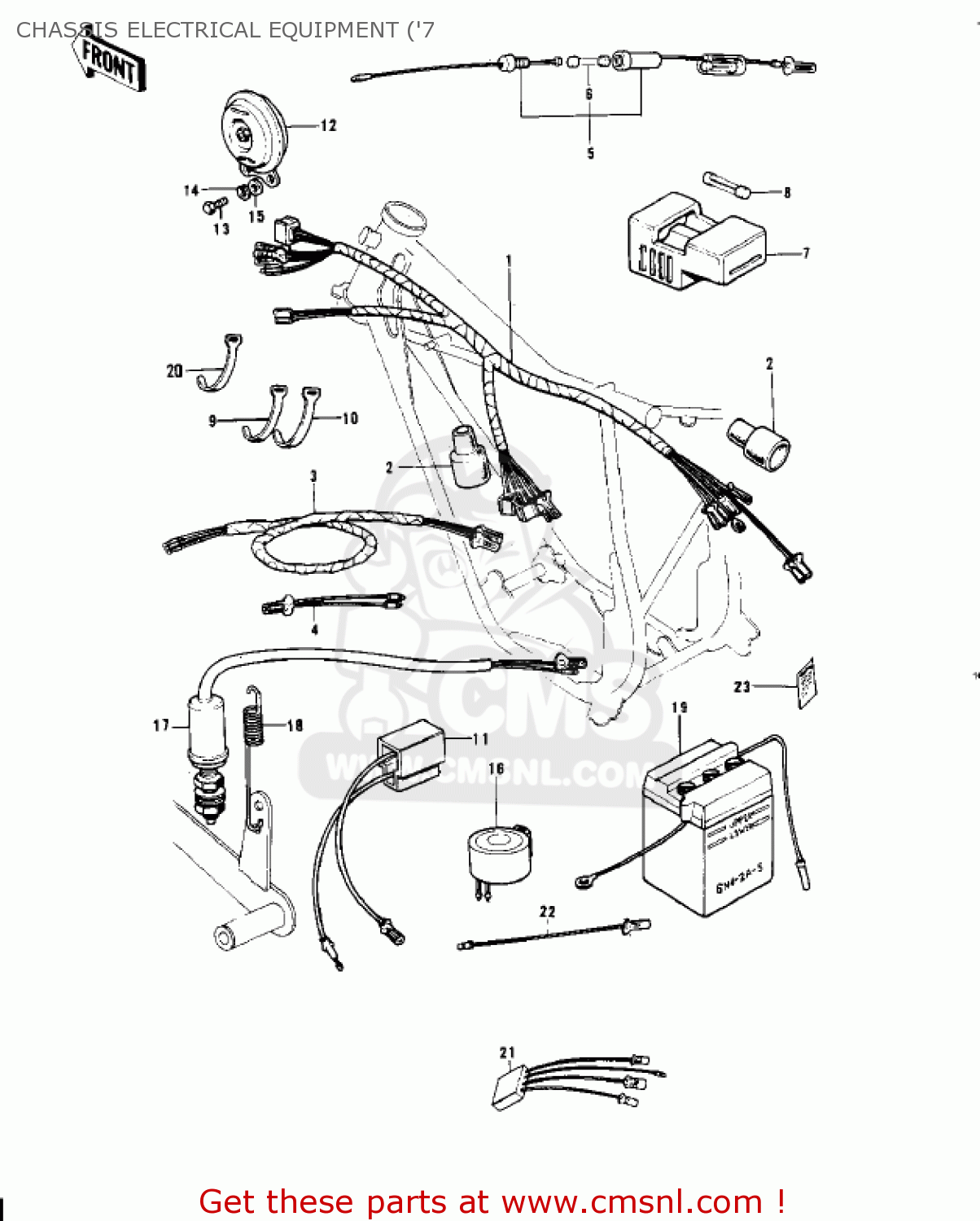

Chassis electrical equipment ('7 diagram KV100-A7 1976 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT ('7 KV100-A7 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
26001105
ref: 1
WIRING HARNESS,MAIN
€ 223.50
2
26009003
ref: 2
COVER-WIRING HARNESS
€ 2.00
3
26002037
ref: 3
HARNESS,RR
€ 13.00
4
26011042
ref: 4
WIRE-LEAD
€ 3.00
5
26004017
ref: 5
FUSE-ASSY
€ 10.00
6
26006003
ref: 6
FUSE 10A
€ 3.00
7
26016003
ref: 7
HOLDER,SPARE FUSE
€ 8.50
8
26006003
ref: 8
FUSE 10A
€ 3.00
9
92072030
ref: 9
BAND,SHORT
€ 3.00
10
92072032
ref: 10
BAND,LONG
€ 3.00
11
26011074
ref: 11
WIRE,RECTIFIER LEAD
€ 6.50
12
27003060
ref: 12
G4TR-D/E
HORN
€ 95.50
12
27003060
ref: 12
KV100-A7
HORN
€ 95.50
13
220B0614
ref: 13
SCREW-PAN HEAD,6X14
€ 2.00
14
461F0600
ref: 14
WASHER-SPRING,6MM
€ 0.50
15
411B0600
ref: 15
WASHER-PLAIN,6MM
€ 0.50
16
27002013
ref: 16
RELAY-ASSY,TURN SIGNA
€ 27.00
17
27010020
ref: 17
G4TR-D
SWITCH,BRAKE LAMP
€ 29.50
17
27010015
ref: 17
G4TR-E, KV100-A7
SWITCH,BRAKE LAMP
€ 23.00
18
27011004
ref: 18
SPRING-BRAKE LAMP SW
€ 2.50
19
K26012020
ref: 19
6N4-2A-5
BATTERY,YUA,6N4-2A-5
€ 55.50
20
92072031
ref: 20
BAND,MIDDLE
€ 3.00
21
26002056
ref: 21
KV100-A7
WIRING HARNESS,REAR
€ 6.00
22
26011094
ref: 22
KV100-A7
WIRE,LEAD
€ 1.50
23
560401036
ref: 23
WARNING, BATTERY
€ 2.00
