AIR CLEANER/MUFFLER ('74-'75)
KV100-A7 1976 USA CALIFORNIA

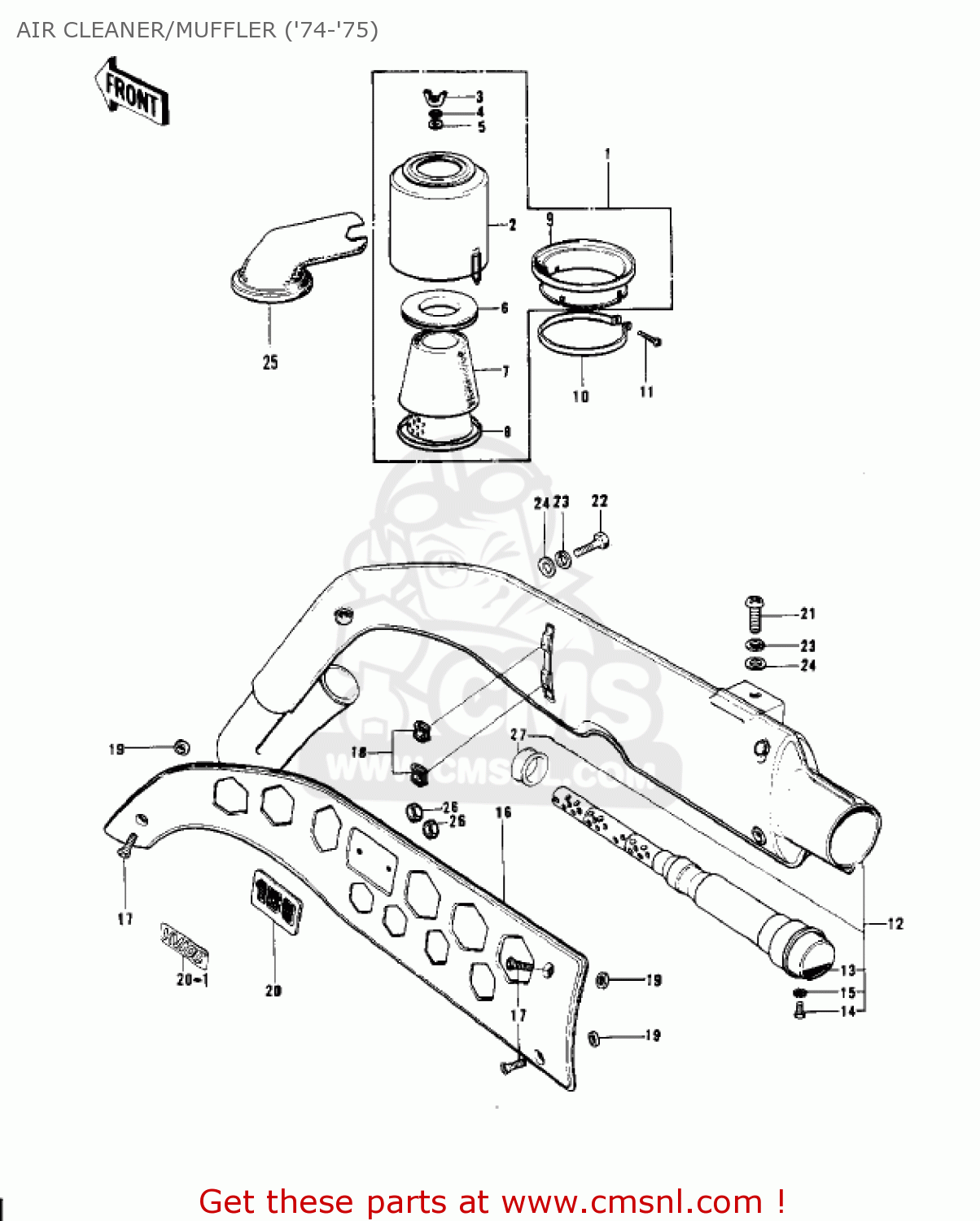

Air cleaner/muffler ('74-'75) diagram KV100-A7 1976 USA CALIFORNIA
AIR CLEANER/MUFFLER ('74-'75) KV100-A7 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
1101005979
ref: 1
AIR CLEANER ASSY,CR
€ 55.50
2
1101101079
ref: 2
AIR CLEANER BODY,CHROME
€ 108.50
3
92015030
ref: 3
NUT-WING,6MM
€ 1.50
4
461F0600
ref: 4
WASHER-SPRING,6MM
€ 0.50
5
411B0600
ref: 5
WASHER-PLAIN,6MM
€ 0.50
6
11012031
ref: 6
AIR CLEANER CAP
€ 38.00
7
11013037
ref: 7
AIR CLEANER ELEMENT
€ 22.00
8
11014008
ref: 8
AIR CLEANER HOLDER
€ 66.00
9
11012013
ref: 9
CAP,AIR FILTER
€ 16.00
10
92037018
ref: 10
CLAMP-AIR CLEANER
€ 3.50
11
220B0625
ref: 11
SCREW-PAN HEAD,6X25
€ 1.50
12
1800110421
ref: 12
MUFFLER ASSEMBLY,FLAT BLACK
€ 545.50
13
18033078
ref: 13
BAFFLE TUBE
€ 169.50
14
112G0610
ref: 14
BOLT,6X10
€ 0.50
15
464H0600
ref: 15
WASHER-LOCK,6MM
€ 0.50
16
18057046
ref: 16
G4TR-D/E
MUFFLER COVER
€ 117.00
16
18057046
ref: 16
KV100-A7
MUFFLER COVER
€ 117.00
17
221E0610
ref: 17
SCREW-CNTSNK HD,6X10
€ 2.50
18
18065007
ref: 18
INSULATOR,HEAT
€ 3.00
19
18065001
ref: 19
INSULATOR
€ 1.50
20
56018161
ref: 20
G4TR-D/E
MUFFLER COVER EMBLEM
€ 36.50
20-1
560181109
ref: 20-1
KV100-A7
OIL TANK MARK
€ 8.50
21
220B0816
ref: 21
SCREW-PAN HEAD,8X16
€ 2.50
22
115G0816
ref: 22
G4TR-D/E
BOLT-HEX,HEAD 8X16
€ 0.50
22
115G0818
ref: 22
KV100-A7
BOLT SMALL-UPSET
€ 2.50
23
461F0800
ref: 23
G4TR-D/E
WASHER-SPRING,8MM
€ 0.50
23
461F0800
ref: 23
KV100-A7
WASHER-SPRING,8MM
€ 0.50
24
411B0800
ref: 24
G4TR-D/E
WASHER-PLAIN,8MM
€ 0.50
24
410B0800
ref: 24
KV100-A7
WASHER-PLAIN-SMALL,8M
€ 0.50
25
14073003
ref: 25
AIR DUCT
€ 30.00
26
92018004
ref: 26
NUT,SPEED,5MM
€ 2.50
27
92092011
ref: 27
BUSHING,RUBBER
€ 18.50
