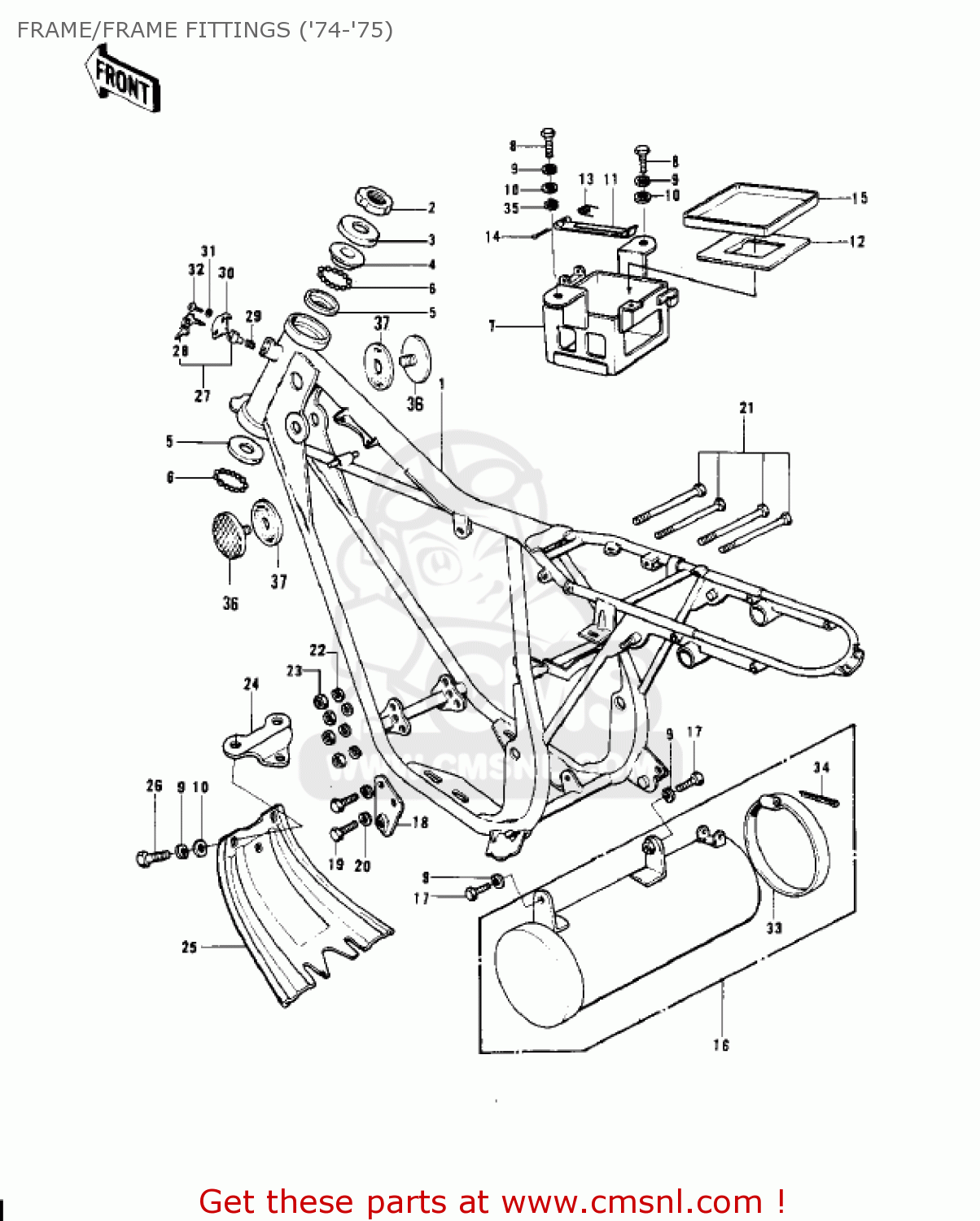

FRAME/FRAME FITTINGS ('74-'75)

ref

part #

description

quantity

1

32002073
ref: 1
G4TR-D

FRAME

€ 449.00

1

32002111
ref: 1
G4TR-E

FRAME

€ 801.50

1

32002138
ref: 1
KV100-A7

FRAME

€ 929.50

2

92090006
ref: 2

NUT-STEERING STEM LCK

€ 10.50

3

46098004
ref: 3

CAP-STEERING STEM

€ 4.00

4

92047006
ref: 4

CONE-STRNG STEM

€ 11.00

5

92048004
ref: 5

RACE-BEARING

€ 10.00

6

600A0600
ref: 6

BALL-STEEL,3/16

€ 0.50

7

32097029
ref: 7

BATTERY CASE

€ 95.50

8

112G0616
ref: 8

BOLT UPSET,6X16

€ 1.00

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

411B0600
ref: 10

WASHER-PLAIN,6MM

€ 0.50

11

92072037
ref: 11

BAND-BATTERY

€ 2.50

12

32103024
ref: 12

DAMPER,BATTERY

€ 4.50

13

92083017
ref: 13

SPRING-RETURN

€ 1.50

14

550D2535
ref: 14

PIN-COTTER,2.5X35

€ 1.50

15

32103018
ref: 15

MAT-BATTERY

€ 2.00

16

32098021
ref: 16

TOOLCASE

€ 95.50

17

112G0612
ref: 17

BOLT-UPSET

€ 2.50

18

32029065
ref: 18

ENGINE MOUNT BRACKET

€ 17.00

19

115G0820
ref: 19

BOLT,8X20

€ 2.00

20

461F0800
ref: 20

WASHER-SPRING,8MM

€ 0.50

21

920011246
ref: 21

BOLT,HEX HEAD,10X117

€ 7.00

22

461F1000
ref: 22

WASHER-SPRING,10MM

€ 0.50

23

314B1000
ref: 23

NUT,10MM

€ 0.50

24

55012003
ref: 24

ENGINE GUARD BRACKET

€ 18.50

25

55011019
ref: 25

ENGINE GUARD

€ 43.50

26

112B0614
ref: 26

BOLT-UPSET 6X14

€ 2.50

27

27016042
ref: 27

LOCK-ASSY,STEERING

€ 36.00

28

2700806301
ref: 28

KEY SET,#401

€ 19.00

28

2700806310
ref: 28

KEY SET,#410

€ 14.50

29

27032001
ref: 29

SPRING-STEERING LOCK

€ 3.50

30

110121134
ref: 30

CAP,STEERING LOCK

€ 4.50

31

92097003
ref: 31

WASHER

€ 2.50

32

92008007
ref: 32

SCREW-TAPPING

€ 2.50

33

32099005
ref: 33

CAP-TOOL CASE

€ 6.00

34

550D2030
ref: 34

PIN COTTER 2.0X30

€ 1.00

35

464H0600
ref: 35

WASHER-LOCK,6MM

€ 0.50

36

28012009
ref: 36
KV100-A7

REFLECTOR-REFLEX,RR

€ 17.50

37

92094011
ref: 37
KV100-A7

DAMPER,REFLECTOR

€ 3.00
