SWING ARM/SHOCK ABSORBERS ('70-'
KV100-A7 1976 USA CALIFORNIA

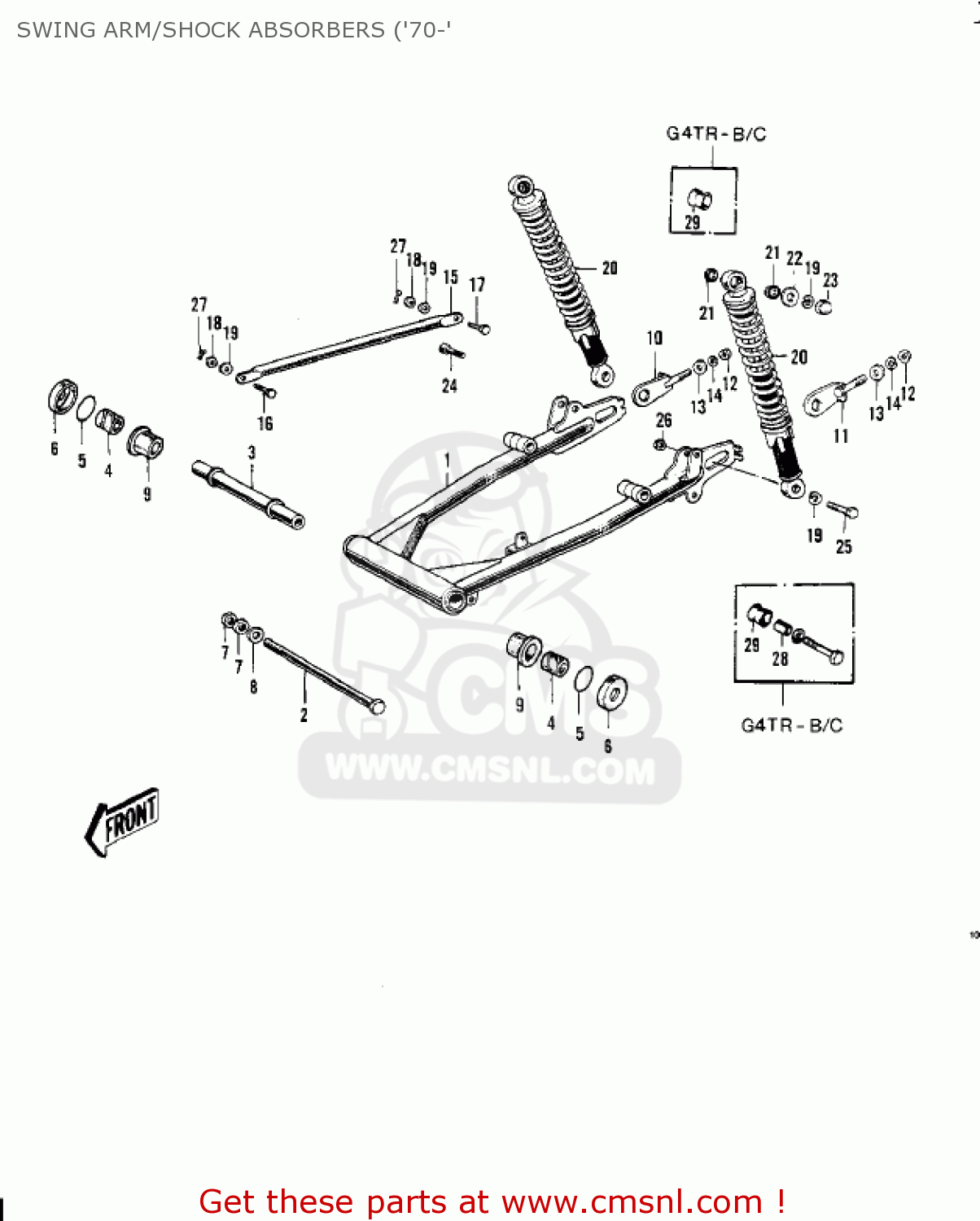

Swing arm/shock absorbers ('70-' diagram KV100-A7 1976 USA CALIFORNIA
SWING ARM/SHOCK ABSORBERS ('70-' KV100-A7 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
33001034
ref: 1
SWING ARM
€ 249.50
2
33032023
ref: 2
SWING ARM PIVOT SHAFT
€ 14.50
3
33036002
ref: 3
COLLAR,SWING ARM
€ 8.00
4
33034016
ref: 4
SLEEVE,12.1X22X39
€ 14.50
5
671B2530
ref: 5
O RING,30MM
€ 3.00
6
33035005
ref: 6
CAP,SWING ARM
€ 5.50
7
315B1200
ref: 7
NUT,12MM
€ 0.50
8
461F1200
ref: 8
WASHER-SPRING,12MM
€ 0.50
9
33033009
ref: 9
BUSHING,SWING ARM
€ 57.00
10
33040039
ref: 10
CHAIN ADJUSTER,RH
€ 17.50
11
33040040
ref: 11
CHAIN ADJUSTER,LH
€ 17.50
12
312B0800
ref: 12
NUT,8MM
€ 0.50
13
410B0800
ref: 13
WASHER-PLAIN-SMALL,8M
€ 0.50
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
43007018
ref: 15
TORQUE LINK,REAR BRK
€ 8.50
16
92003017
ref: 16
BOLT-TRQ LINK 10X25
€ 3.50
17
92003003
ref: 17
BOLT-HEX HEAD,10X32
€ 4.00
18
314B1000
ref: 18
NUT,10MM
€ 0.50
19
461F1000
ref: 19
WASHER-SPRING,10MM
€ 0.50
20
45014069
ref: 20
G4TR/A
SHOCK ABSORBER-REAR
€ 71.50
20
45014071
ref: 20
G4TR-B
SHOCK ABSORBER,REAR
€ 213.50
20
45014073
ref: 20
G4TR-C
SHOCK ABSORBER,REAR
€ 138.00
21
45017003
ref: 21
G4TR/A
BUSH-SHOCK ABSORBER
€ 1.50
22
92022044
ref: 22
WASHER,10.5X26X2.3
€ 2.50
23
92020003
ref: 23
NUT-SHOCK ABSORBER
€ 4.00
24
113N1035
ref: 24
BOLT-HEX HEAD,10X35
€ 6.00
25
113N1038
ref: 25
BOLT HEX HEAD 10X38
€ 6.00
26
315B1000
ref: 26
NUT,10MM
€ 0.50
27
550D2015
ref: 27
PIN-COTTER,2.0X15
€ 1.00
28
45016003
ref: 28
G4TR-B/C
COLLAR,SHOCKABSORBER
€ 12.50
29
920751020
ref: 29
G4TR-B/C
DAMPER,SHOCKABSORBER
€ 3.00
