FOOTRESTS/STAND/BRAKE PEDAL G4TR
KV100-A7 1976 USA CALIFORNIA

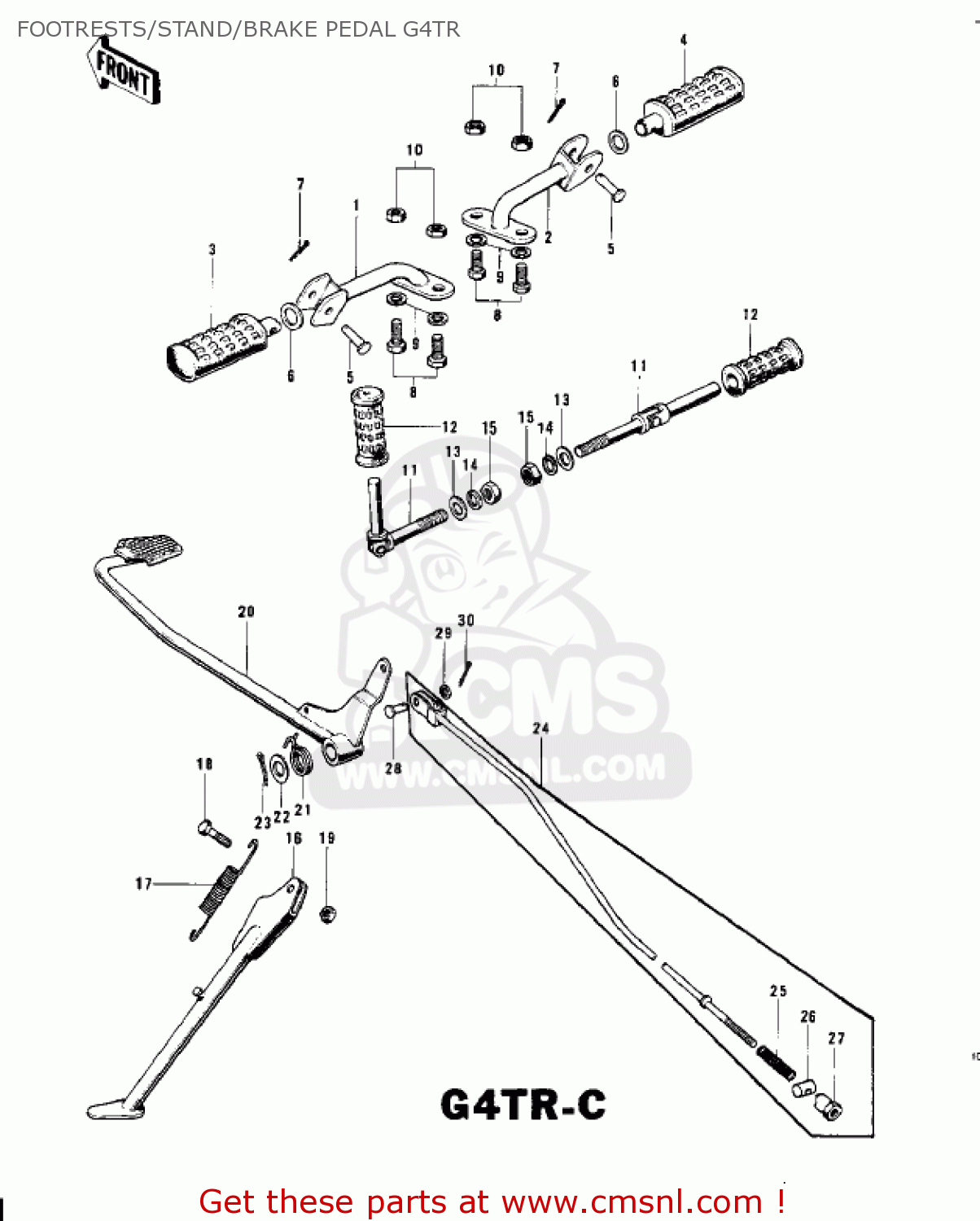

Footrests/stand/brake pedal g4tr diagram KV100-A7 1976 USA CALIFORNIA
FOOTRESTS/STAND/BRAKE PEDAL G4TR KV100-A7 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
34003047
ref: 1
FOOTREST BAR,LH
€ 53.50
2
34003048
ref: 2
FOOTREST BAR,RH
€ 59.50
3
340271114
ref: 3
STEP-ASSY,FR,LH
€ 24.00
4
340271115
ref: 4
STEP-ASSY,FR,RH
€ 24.00
5
92043080
ref: 5
PIN-FOOTREST BAR FIT
€ 3.50
6
92022204
ref: 6
WASHER-PLAIN
€ 0.50
7
550D2515
ref: 7
PIN COTTER,295X15
€ 0.50
8
112B1020
ref: 8
BOLT-UPSET,10X20
€ 3.00
9
410B1000
ref: 9
WASHER-PLAIN-SMALL,10
€ 0.50
10
315B1000
ref: 10
NUT,10MM
€ 0.50
11
34028009
ref: 11
BAR-REAR FOOTREST
€ 24.00
12
92076024
ref: 12
DAMPER,STEP
€ 14.50
13
92022199
ref: 13
WASHER,20X30X2.3
€ 5.00
14
461F1000
ref: 14
WASHER-SPRING,10MM
€ 0.50
15
314B1000
ref: 15
NUT,10MM
€ 0.50
16
34024035
ref: 16
SIDE STAND
€ 75.00
17
34025001
ref: 17
SPRING,SIDE STAND
€ 9.50
18
113G1025
ref: 18
BOLT-SMALL-FINE,10X25
€ 2.50
19
315B1000
ref: 19
NUT,10MM
€ 0.50
20
43001045
ref: 20
BRAKE PEDAL
€ 56.50
21
43005007
ref: 21
SPRING-BRAKE PEDAL
€ 4.50
22
92022085
ref: 22
WASHER,15.3X24X1.2
€ 2.50
23
550D3030
ref: 23
PIN-COTTER,3.0X30
€ 1.50
24
43010016
ref: 24
BRAKE ROD ASSEMBLY
€ 50.00
25
43012001
ref: 25
SPRING,BRAKE ROD
€ 3.00
26
92043039
ref: 26
PIN,BRAKE ROD
€ 4.50
27
92015042
ref: 27
NUT-BRAKE ROD ADJUST
€ 4.00
28
92043092
ref: 28
PIN,BRAKE CABLE FIT
€ 3.00
29
410B0600
ref: 29
WASHER-PLAIN-SMALL,6M
€ 0.50
30
550D2015
ref: 30
PIN-COTTER,2.0X15
€ 1.00
