FOOTRESTS/STAND/BRAKE PEDAL G4TR
KV100-A7 1976 USA CALIFORNIA

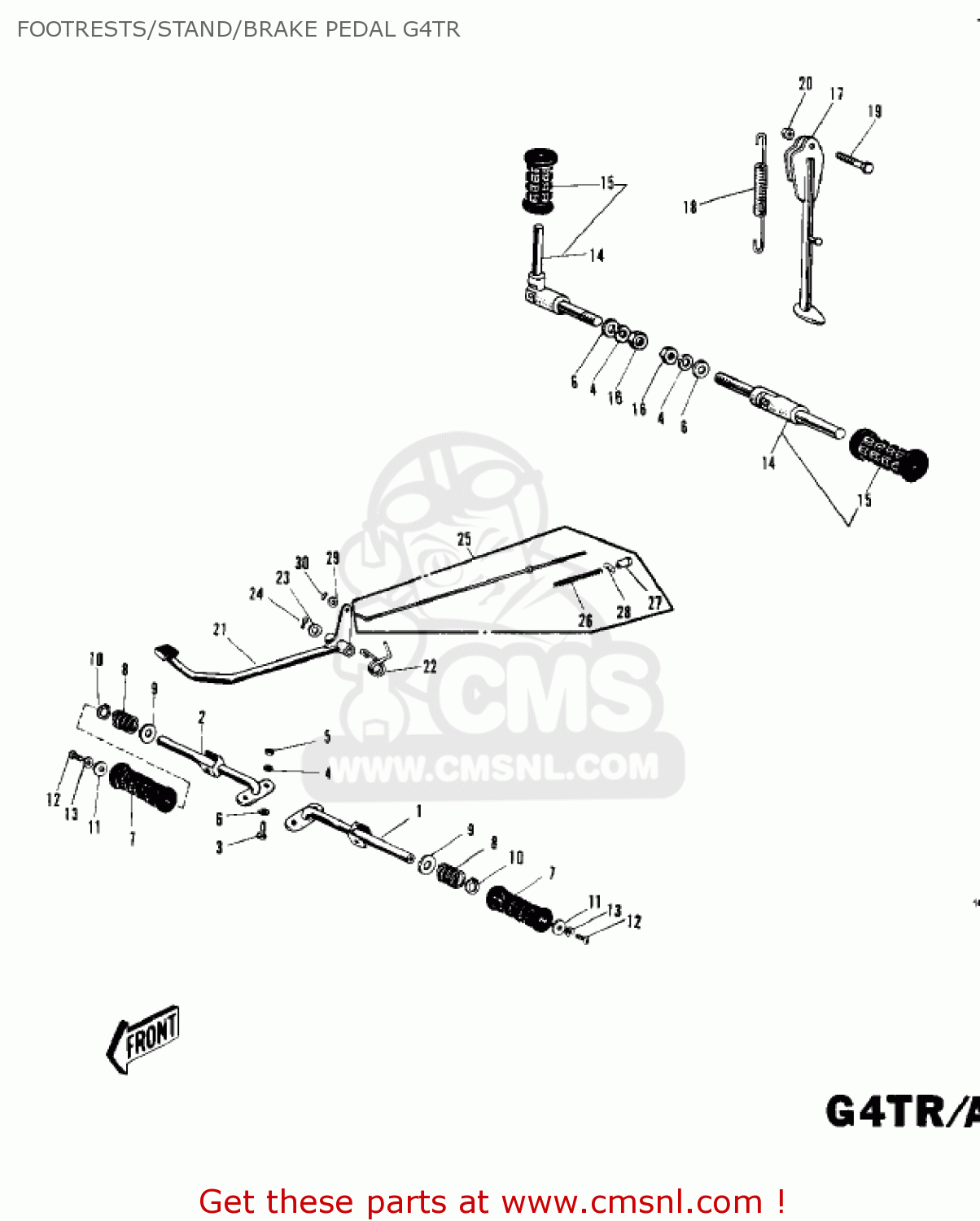

Footrests/stand/brake pedal g4tr diagram KV100-A7 1976 USA CALIFORNIA
FOOTRESTS/STAND/BRAKE PEDAL G4TR KV100-A7 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
34003018
ref: 1
FOOTREST BAR,LH
€ 35.00
2
34003019
ref: 2
FOOTREST BAR,RH
€ 27.50
3
112B1020
ref: 3
BOLT-UPSET,10X20
€ 3.00
4
461F1000
ref: 4
WASHER-SPRING,10MM
€ 0.50
5
315B1000
ref: 5
NUT,10MM
€ 0.50
6
410B1000
ref: 6
WASHER-PLAIN-SMALL,10
€ 0.50
7
92076006
ref: 7
DAMPER,STEP
€ 10.00
8
34006002
ref: 8
SPRING-FOOTREST PEG
€ 3.00
9
92022049
ref: 9
WASHER-FOLDING PEG
€ 2.00
10
480J1600
ref: 10
CIRCLIP-TYPE-C,16MM
€ 2.50
11
92022024
ref: 11
WASHER,7X16X1.2
€ 2.50
12
220B0620
ref: 12
SCREW-PAN HEAD,6X20
€ 2.50
13
461F0600
ref: 13
WASHER-SPRING,6MM
€ 0.50
14
34030001
ref: 14
BAR SET,RR,FOOTREST
€ 7.00
15
92076008
ref: 15
RUBBER-REAR FOOTREST
€ 5.50
16
314B1000
ref: 16
NUT,10MM
€ 0.50
17
34024035
ref: 17
SIDE STAND
€ 75.00
18
34025001
ref: 18
SPRING,SIDE STAND
€ 9.50
19
113G1025
ref: 19
BOLT-SMALL-FINE,10X25
€ 2.50
20
315B1000
ref: 20
NUT,10MM
€ 0.50
21
43001045
ref: 21
BRAKE PEDAL
€ 56.50
22
43005007
ref: 22
SPRING-BRAKE PEDAL
€ 4.50
23
92022085
ref: 23
WASHER,15.3X24X1.2
€ 2.50
24
550D3030
ref: 24
PIN-COTTER,3.0X30
€ 1.50
25
430105003
ref: 25
BRAKE ROD ASSY
€ 15.00
26
43012001
ref: 26
SPRING,BRAKE ROD
€ 3.00
27
92015042
ref: 27
NUT-BRAKE ROD ADJUST
€ 4.00
27
92015042
ref: 27
NUT-BRAKE ROD ADJUST
€ 4.00
28
92043039
ref: 28
PIN,BRAKE ROD
€ 4.50
29
410B0600
ref: 29
WASHER-PLAIN-SMALL,6M
€ 0.50
30
550D2015
ref: 30
PIN-COTTER,2.0X15
€ 1.00
