HEADLIGHT G4TR-D/E ('74-'75)
KV100-A7 1976 USA CALIFORNIA

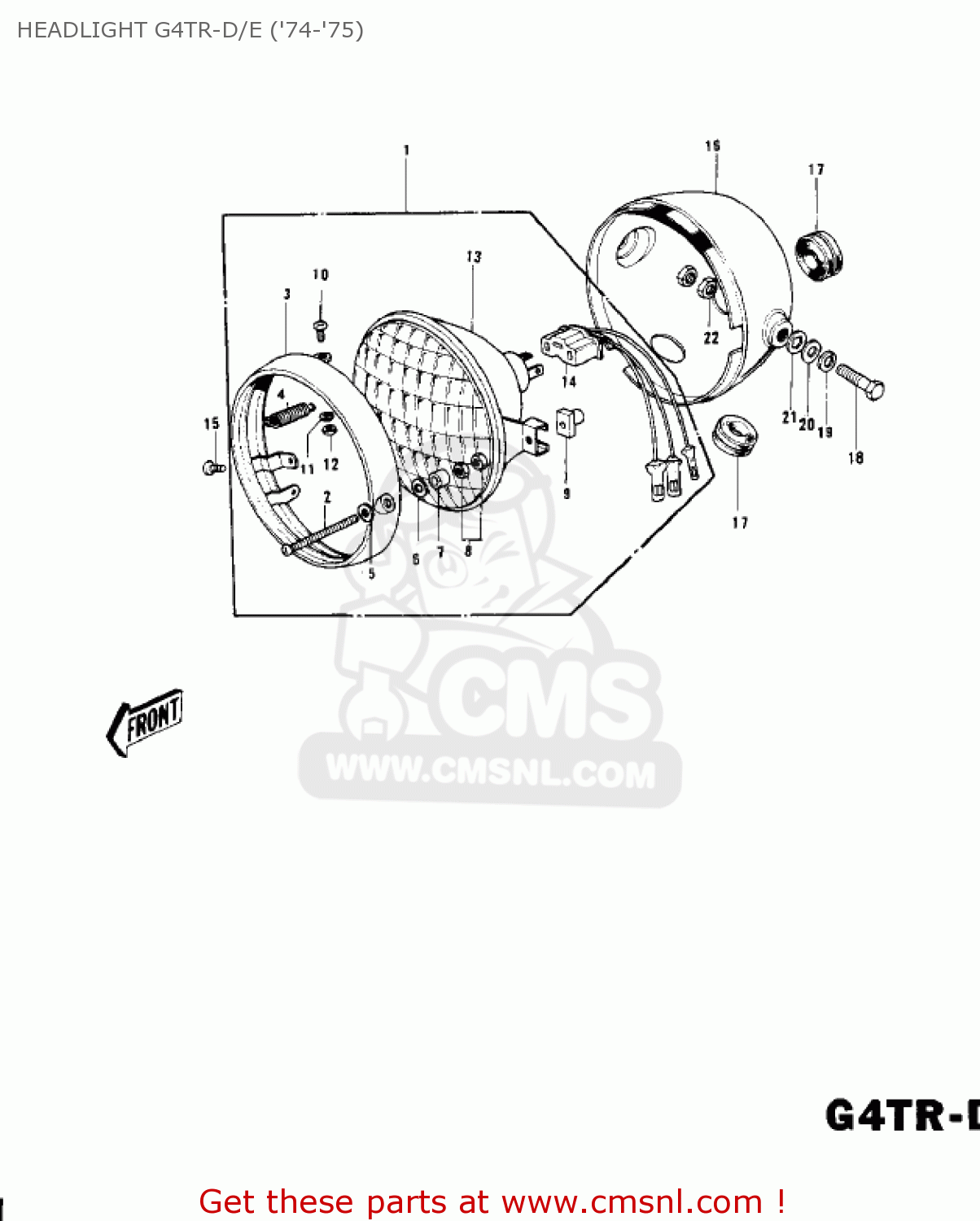

Headlight g4tr-d/e ('74-'75) diagram KV100-A7 1976 USA CALIFORNIA
HEADLIGHT G4TR-D/E ('74-'75) KV100-A7 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
23003009
ref: 1
LAMP UNIT-HEAD
€ 103.50
2
23019013
ref: 2
SCREW-ADJUST
€ 1.00
3
23006020
ref: 3
RIM-HEAD LAMP
€ 43.00
4
23014008
ref: 4
SPRING-LENS FITTING
€ 1.00
5
23021008
ref: 5
WASHER,FOCUS ADJUSTIN
€ 2.00
6
23021007
ref: 6
WASHER-ADJUST
€ 1.00
7
23058001
ref: 7
WASHER-FITTING
€ 1.00
8
23020013
ref: 8
NUT-ADJUST
€ 1.50
9
23020012
ref: 9
NUT,ADJUSTING
€ 2.50
10
23019014
ref: 10
SCREW-FITTING
€ 0.50
11
461F0400
ref: 11
WASHER-SPRING,4MM
€ 0.50
12
311B0400
ref: 12
NUT-HEX,4MM
€ 0.50
13
23007023
ref: 13
SEALED BEAM UNIT
€ 205.00
14
23008044
ref: 14
SOCKET-ASSY,HEAD LAMP
€ 15.00
15
222E0508A
ref: 15
SCREW-OVL CNTSNK,5X8
€ 2.00
16
2300505121
ref: 16
HEADLAMP BODY,FLAT BLACK
€ 64.50
17
23023011
ref: 17
GROMMET
€ 4.50
18
92007045
ref: 18
BOLT, HEX HEAD, 10X25
€ 6.00
19
461F1000
ref: 19
WASHER-SPRING,10MM
€ 0.50
20
411B1000
ref: 20
WASHER-PLAIN,10MM
€ 0.50
21
463H1000
ref: 21
WASHER-LOCK,10MM
€ 0.50
22
92016027
ref: 22
NUT,10MM
€ 2.00
up
