CHASSIS ELECTRICAL EQUIPMENT ('7
KV100-A7 1976 USA CALIFORNIA

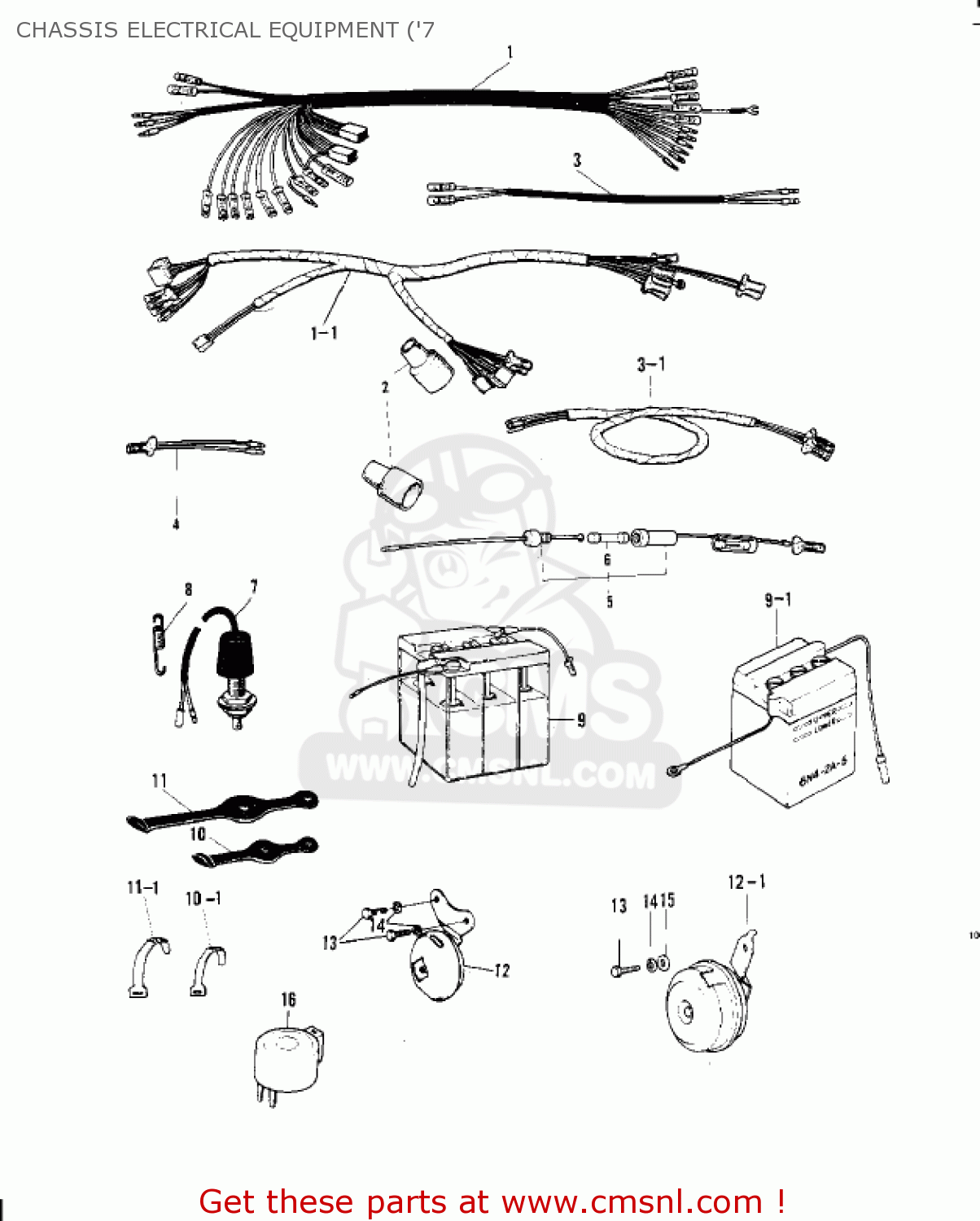

Chassis electrical equipment ('7 diagram KV100-A7 1976 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT ('7 KV100-A7 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
26001049
ref: 1
G4TR/A
WIRING HARNESS,MAIN
€ 234.00
1-1
26001068
ref: 1-1
G4TR-B
WIRING HARNESS,MAIN
€ 170.50
1-1
26001074
ref: 1-1
G4TR-C
WIRING HARNESS,MAIN
€ 170.50
2
26009003
ref: 2
COVER-WIRING HARNESS
€ 2.00
3
26002027
ref: 3
G4TR/A
WIRING HARNWSS-REAR
€ 10.00
3-1
26002029
ref: 3-1
G4TR-B
WIRING HARNESS-REAR
€ 8.00
3-1
26002037
ref: 3-1
G4TR-C
HARNESS,RR
€ 13.00
4
26011042
ref: 4
WIRE-LEAD
€ 3.00
5
26004008
ref: 5
FUSE-ASSY
€ 13.00
6
26006003
ref: 6
FUSE 10A
€ 3.00
7
27010006
ref: 7
G4TR/A/B
SWITCH,BRAKE LAMP
€ 28.50
7
27010020
ref: 7
G4TR-C
SWITCH,BRAKE LAMP
€ 29.50
8
27011004
ref: 8
SPRING-BRAKE LAMP SW
€ 2.50
9
K26012019
ref: 9
G4TR/A/B
BATTERY,YUA,6N2-2A-3
€ 39.00
9-1
K26012020
ref: 9-1
G4TR-C
BATTERY,YUA,6N4-2A-5
€ 55.50
10
92072013
ref: 10
G4TR/A
BAND-RUBBER
€ 2.00
10
92072013
ref: 10
G4TR-B
BAND-RUBBER
€ 2.00
10-1
92072030
ref: 10-1
G4TR-C
BAND,SHORT
€ 3.00
11
92072018
ref: 11
G4TR/A
BAND-RUBBER
€ 1.50
11
92072018
ref: 11
G4TR-B
BAND-RUBBER
€ 1.50
11-1
92072032
ref: 11-1
G4TR-C
BAND,LONG
€ 3.00
12
27003063
ref: 12
G4TR/A/B
HORN
€ 121.50
12-1
27003056
ref: 12-1
G4TR-C
HORN
€ 36.00
13
112G0610
ref: 13
G4TR/A/B
BOLT,6X10
€ 0.50
13
115G0816
ref: 13
G4TR-C
BOLT-HEX,HEAD 8X16
€ 0.50
14
461F0600
ref: 14
G4TR/A/B
WASHER-SPRING,6MM
€ 0.50
14
461F0800
ref: 14
G4TR-C
WASHER-SPRING,8MM
€ 0.50
15
411B0800
ref: 15
G4TR-C
WASHER-PLAIN,8MM
€ 0.50
16
27002013
ref: 16
G4TR-C
RELAY-ASSY,TURN SIGNA
€ 27.00
