CARBURETOR G4TR-D ('74-'75)
KV100-A7 1976 USA CALIFORNIA

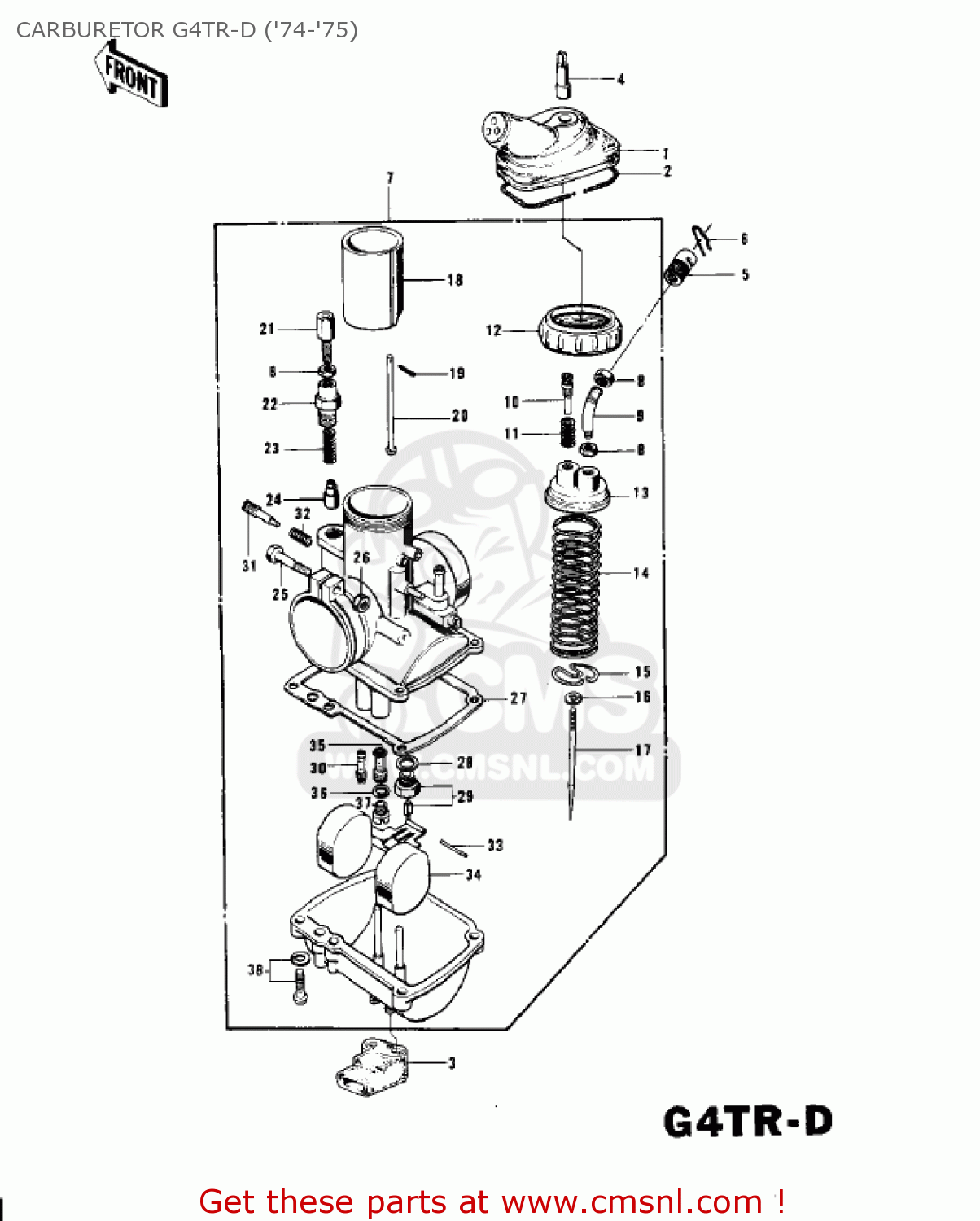

Carburetor g4tr-d ('74-'75) diagram KV100-A7 1976 USA CALIFORNIA
CARBURETOR G4TR-D ('74-'75) KV100-A7 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
14038033
ref: 1
BOOT,CARBURETOR
€ 12.00
2
92081047
ref: 2
SPRING,COIL
€ 7.50
3
16136007
ref: 3
GROMMET,OVERFLOW PIPE
€ 5.50
4
16147001
ref: 4
PLUG,12X40
€ 3.00
5
16002007
ref: 5
ADJUSTER-CABLE,THROTT
€ 7.50
6
92036018
ref: 6
CIRCLIP
€ 2.50
7
16001196
ref: 7
CARBURETOR ASSEMBLY
€ 298.50
8
16003004
ref: 8
NUT-CABLE ADJUST LOCK
€ 4.50
9
16077001
ref: 9
GUIDE,CABLE
€ 6.50
10
16021002
ref: 10
SCREW-THROTTLE STOP
€ 12.00
11
16022005
ref: 11
SPRING-THR STOP SCREW
€ 5.50
12
16004010
ref: 12
CAP-CHAMBER,MIXING
€ 13.50
13
16005005
ref: 13
TOP-CHAMBER,MIXING
€ 12.50
14
16006013
ref: 14
SPRING-THROTTLE VALVE
€ 10.00
15
16007020
ref: 15
SEAT-SPRING,THROTTLE
€ 7.00
16
16008010
ref: 16
CLAMP,E-TYPE
€ 5.00
17
16009059
ref: 17
NEEDLE-JET,4EJ7
€ 26.50
18
16025057
ref: 18
VALVE-THROTTLE,CA2.0
€ 80.50
19
550D1210
ref: 19
PIN-COTTER,1.2X10
€ 1.50
20
16024012
ref: 20
ROD,THROTTLE VALVE ST
€ 5.50
21
16002002
ref: 21
ADJUSTER-CABLE,STARTE
€ 8.00
22
16012004
ref: 22
CAP-STARTER PLUNGER
€ 7.50
23
16013003
ref: 23
SPRING-STARTER PLUNG
€ 4.00
24
16016002
ref: 24
PLUNGER,STARTER
€ 20.00
25
16010004
ref: 25
SCREW-CLAMP
€ 3.50
26
311B0600
ref: 26
NUT,6MM
€ 0.50
27
16019021
ref: 27
GASKET,FLOAT CHAMBER (NAS)
€ 13.00
28
16029002
ref: 28
WASHER-VALVE SEAT
€ 2.50
29
16030001
ref: 29
VALVE-FLOAT,#2.0
€ 40.50
30
92064020
ref: 30
JET-PILOT,#17.5
€ 13.50
31
16014002
ref: 31
SCREW-PILOT AIR
€ 11.00
32
16022007
ref: 32
SPRING-THR STOP SCREW
€ 5.50
33
16032003
ref: 33
FLOAT PIN
€ 4.00
34
16031015
ref: 34
FLOAT
€ 40.50
35
16017081
ref: 35
JET,NEEDLE,#O-4
€ 69.50
36
16034001
ref: 36
WASHER-MAIN JET
€ 2.50
37
92063109
ref: 37
STD
JET-MAIN,#75R
€ 10.50
37
920631012
ref: 37
OPTION
JET-MAIN,#70R
€ 8.00
37
92063108
ref: 37
OPTION
JET-MAIN,#72.5R
€ 9.00
37
920631032
ref: 37
OPTION
JET-MAIN,#A77.5R
€ 10.00
37
920631030
ref: 37
OPTION
JET-MAIN,#A80R
€ 11.00
38
16033012
ref: 38
SCREW-FLOAT CHAMBER
€ 1.00
