SWINGARM
KLX650C1 1993 USA CALIFORNIA

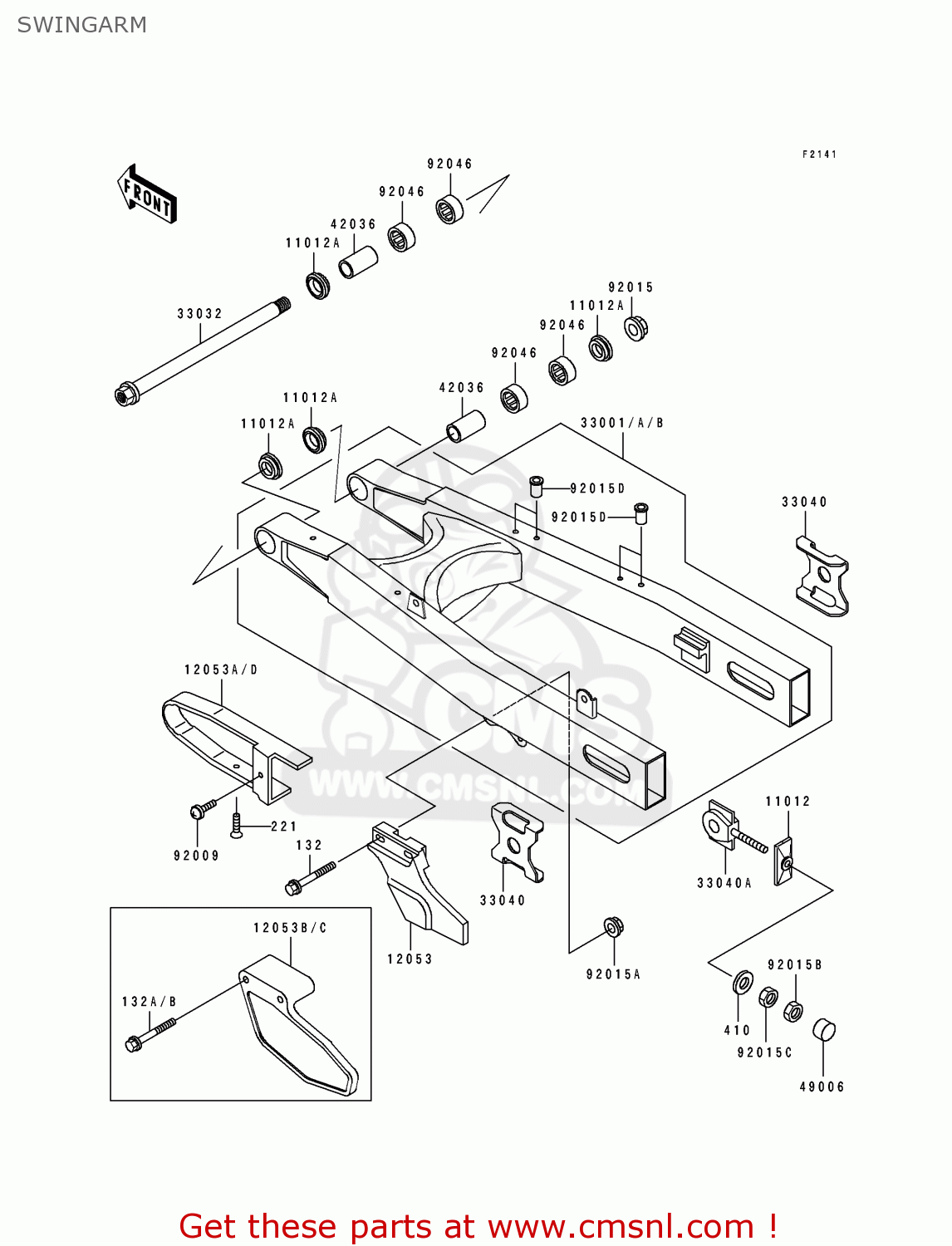

Swingarm diagram KLX650C1 1993 USA CALIFORNIA
SWINGARM KLX650C1 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
132
132G0640
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132B
132G0655
ref: 132B
BOLT-FLANGED-SMALL
€ 2.00
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
11012
110121780
ref: 11012
CAP,CHAIN ADJUSTER
€ 17.50
11012A
110121790
ref: 11012A
CAP,SWING ARM PIPOT
€ 16.50
12053
120531104
ref: 12053
GUIDE-CHAIN,RR
€ 46.00
12053A
120531293
ref: 12053A
GUIDE-CHAIN,DRIVE,FR
€ 37.50
12053C
120531335
ref: 12053C
GUIDE-CHAIN,RR
€ 16.50
33001
330011424CE
ref: 33001
ARM-COMP-SWING,SILVER
€ 618.00
33001B
330011436CE
ref: 33001B
ARM-COMP-SWING,SILVER
€ 606.50
33032
330321171
ref: 33032
SHAFT-SWING ARM
€ 45.00
33040
330401131
ref: 33040
ADJUSTER-CHAIN,OUTER
€ 10.00
33040A
330401132
ref: 33040A
ADJUSTER-CHAIN,INNER
€ 16.50
42036
420361307
ref: 42036
SLEEVE,SWING ARM,L=58
€ 17.50
49006
490061218
ref: 49006
BOOT
€ 3.50
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92015
920151316
ref: 92015
NUT,FLANGED,16MM
€ 16.50
92015A
920151339
ref: 92015A
NUT,LOCK,FLANGED,6MM
€ 1.00
92015B
920151364
ref: 92015B
NUT,8MM
€ 2.50
92015C
920151658
ref: 92015C
NUT,FLANGED,8MM
€ 3.00
92015D
920151792
ref: 92015D
NUT,POP,6MM,L=16.5
€ 3.00
92046
920461214
ref: 92046
BEARING-NEEDLE,HK2212
€ 24.00
