HANDLEBAR
KLX650C1 1993 USA CALIFORNIA

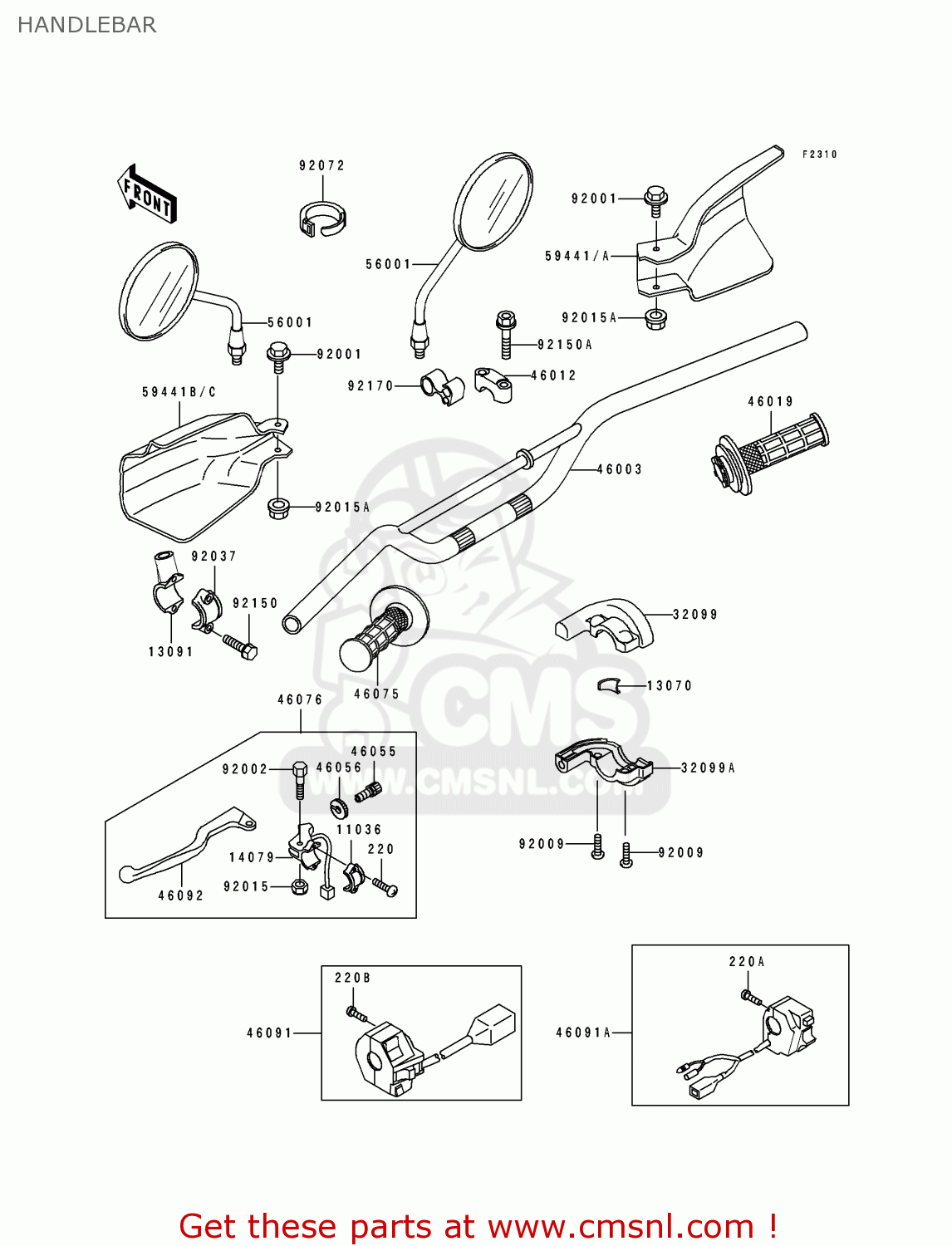

Handlebar diagram KLX650C1 1993 USA CALIFORNIA
HANDLEBAR KLX650C1 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
220
220C0514
ref: 220
SCREW-PAN-CROS
€ 1.00
220A
220C0525
ref: 220A
SCREW-PAN-CROS
€ 2.00
220B
220C0530
ref: 220B
SCREW-PAN-CROS
€ 0.50
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13070
130701274
ref: 13070
GUIDE,THROTTLE CABLE
€ 3.00
13091
130911718
ref: 13091
HOLDER,MIRROR
€ 30.50
14079
140791069
ref: 14079
HOLDER-ASSY,CLUTCH
€ 36.50
32099
320991146
ref: 32099
CASE,THROTTLE,UPP
€ 20.50
32099A
320991147
ref: 32099A
CASE,THROTTLE,LWR
€ 20.50
46003
460031370CE
ref: 46003
HANDLE,SILVER NO.25
€ 66.00
46012
460121191
ref: 46012
HOLDER-HANDLE,UPP
€ 21.00
46019
460191078
ref: 46019
GRIP-ASSY,THROTTLE
€ 28.00
46055
46055009
ref: 46055
SCREW,CABLE ASJUST
€ 13.00
46056
46056006
ref: 46056
NUT,CABLE ADJUST NUT
€ 6.00
46075
460751107
ref: 46075
GRIP,LH
€ 14.00
46076
460761167
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 57.50
46091
460911606
ref: 46091
HOUSING-ASSY-CONTROL,
€ 114.00
46091A
460911608
ref: 46091A
CONTROLLER HOUSING ASSEMBLY
€ 73.00
46092
460921159
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.00
56001
560011437
ref: 56001
MIRROR-ASSY
€ 45.50
59441A
5944111036C
ref: 59441A
COVER-HANDLE,RH,EBONY
€ 15.00
59441C
5944111066C
ref: 59441C
COVER-HANDLE,LH,EBONY
€ 22.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92002
920021880
ref: 92002
BOLT,LEVER SET
€ 14.50
92009
920091699
ref: 92009
SCREW,5X16
€ 2.00
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151603
ref: 92015A
NUT
€ 3.00
92037
920371621
ref: 92037
CLAMP,LEVER HOLDER
€ 18.50
92072
920721293
ref: 92072
BAND
€ 6.50
92150
921501389
ref: 92150
BOLT,5X20
€ 3.00
92150A
921501455
ref: 92150A
BOLT,FLANGED,8X30
€ 4.50
92170
921701255
ref: 92170
CLAMP,BRAKE HOSE
€ 4.50
