CARBURETOR
KLX650C1 1993 USA CALIFORNIA

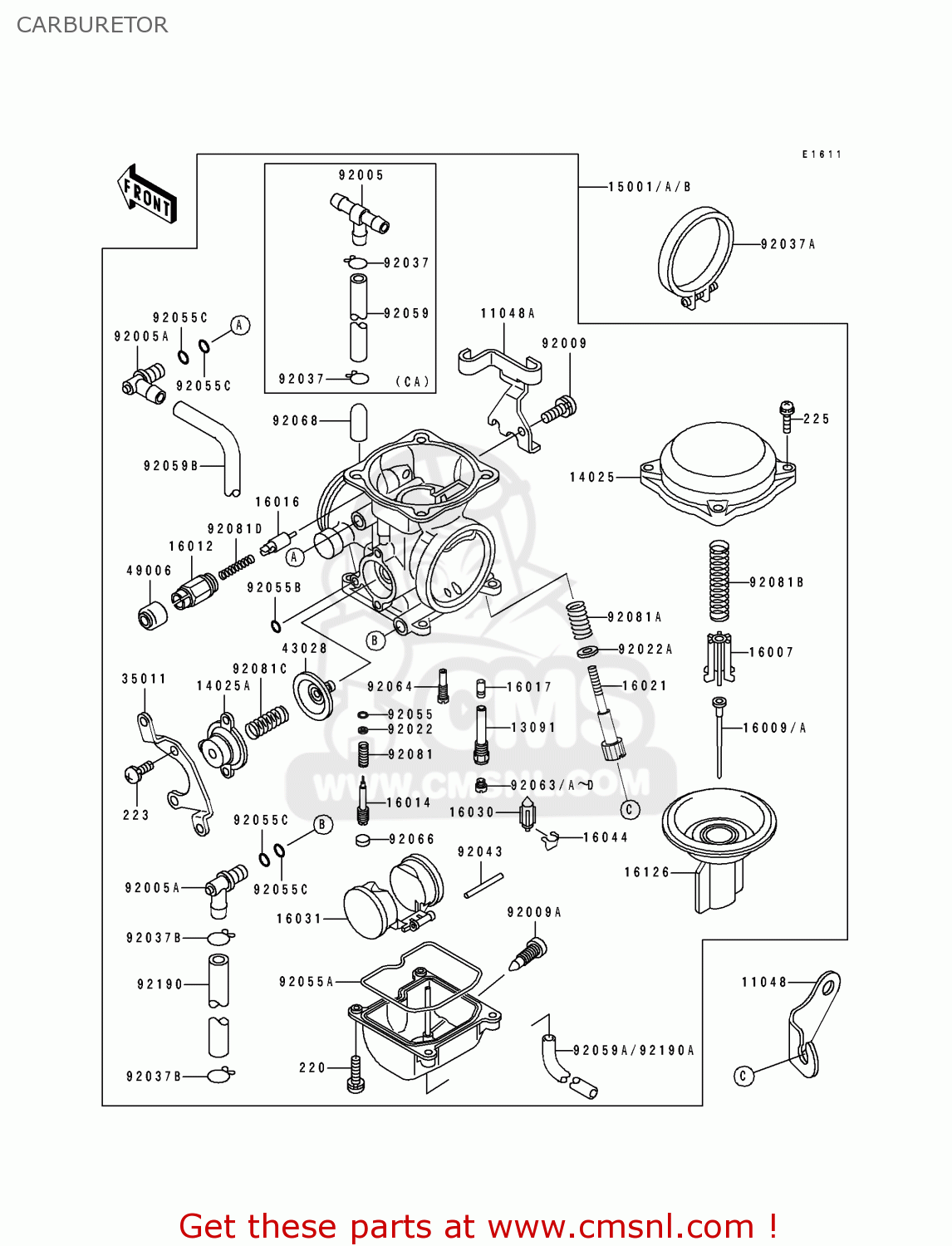

Carburetor diagram KLX650C1 1993 USA CALIFORNIA
CARBURETOR KLX650C1 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11048
110481210
ref: 11048
BRACKET,CARBURETOR
€ 4.50
11048A
110481275
ref: 11048A
BRACKET,THROTTLE CABL
€ 45.50
13091
130911425
ref: 13091
HOLDER,NEEDLE JET
€ 19.50
14025
140251890
ref: 14025
COVER,MIXING CHAMBER
€ 58.50
14025A
140251903
ref: 14025A
COVER,AIR CUT VALVE
€ 43.00
15001A
150011870
ref: 15001A
US
CARBURETOR ASSEMBLY
€ 343.50
15001B
150011871
ref: 15001B
CA
CARBURETOR ASSEMBLY
€ 354.00
16007
160071113
ref: 16007
SEAT-SPRING,DIAPHRAGM
€ 13.50
16009
160091791
ref: 16009
JET,NEEDLE,#N1RD
€ 20.00
16012
160121055
ref: 16012
CAP-STARTER PLUNGER
€ 17.50
16014
160141061
ref: 16014
SCREW-PILOT AIR
€ 18.00
16016
160161057
ref: 16016
PLUNGER
€ 41.00
16017
160171367
ref: 16017
JET-NEEDLE
€ 30.00
16021
160211145
ref: 16021
SCREW-THROTTLE STOP
€ 77.50
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261279
ref: 16126
VALVE,VACUUM
€ 152.50
35011
350111232
ref: 35011
STAY,AIR CUT VALVE
€ 25.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
49006
490061165
ref: 49006
BOOT,STARTER PLUNGER
€ 6.50
92005
920051112
ref: 92005
CA
FITTING,FUEL,T-TYPE
€ 10.00
92005A
920051120
ref: 92005A
FITTING,L-TYPE
€ 18.50
92009
920091365
ref: 92009
SCREW
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371477
ref: 92037
CA
CLAMP,TUBE
€ 3.00
92037A
920371486
ref: 92037A
CLAMP,55MM
€ 5.50
92037B
920371531
ref: 92037B
CLAMP,TUBE
€ 3.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
223
223C0410
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
92055A
920551222
ref: 92055A
RING-O,FLOAT CHAMBER
€ 12.50
92055B
920551245
ref: 92055B
RING-O
€ 3.50
92055C
920551246
ref: 92055C
RING-O
€ 3.00
92059
920591713
ref: 92059
CA
TUBE,5X9X120
€ 16.50
92059A
920591838
ref: 92059A
US
TUBE,3.5X6.5X390
€ 14.50
92059B
920591861
ref: 92059B
TUBE,6.5X9.5X320
€ 11.50
92063
920631013
ref: 92063
MAIN JET,#140
€ 9.00
92063A
920631014
ref: 92063A
MAIN JET,#135
€ 9.50
92063B
920631015
ref: 92063B
MAIN JET,#138
€ 9.50
92063C
920631016
ref: 92063C
MAIN JET,#142
€ 9.00
92063D
920631076
ref: 92063D
JET-MAIN,#132
€ 9.50
92064
920641108
ref: 92064
JET-PILOT,#40
€ 11.00
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
€ 3.00
92068
92068006
ref: 92068
US
RUBBER PLUG
€ 2.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811617
ref: 92081A
SPRING,THROTTLE STOP
€ 3.50
92081B
920811718
ref: 92081B
SPRING,DIAPHRAGM VALV
€ 18.50
92081C
920811719
ref: 92081C
SPRING,AIR CUT VALVE
€ 8.50
92081D
920811720
ref: 92081D
SPRING,PLUNGER
€ 7.00
92190
921901473
ref: 92190
TUBE 6.5X11.5X160
€ 5.50
92190A
921901475
ref: 92190A
CA
TUBE,3.5X6.5X360
€ 12.50
