OWNER'S TOOLS

KLX650C1 1993 USA CALIFORNIA

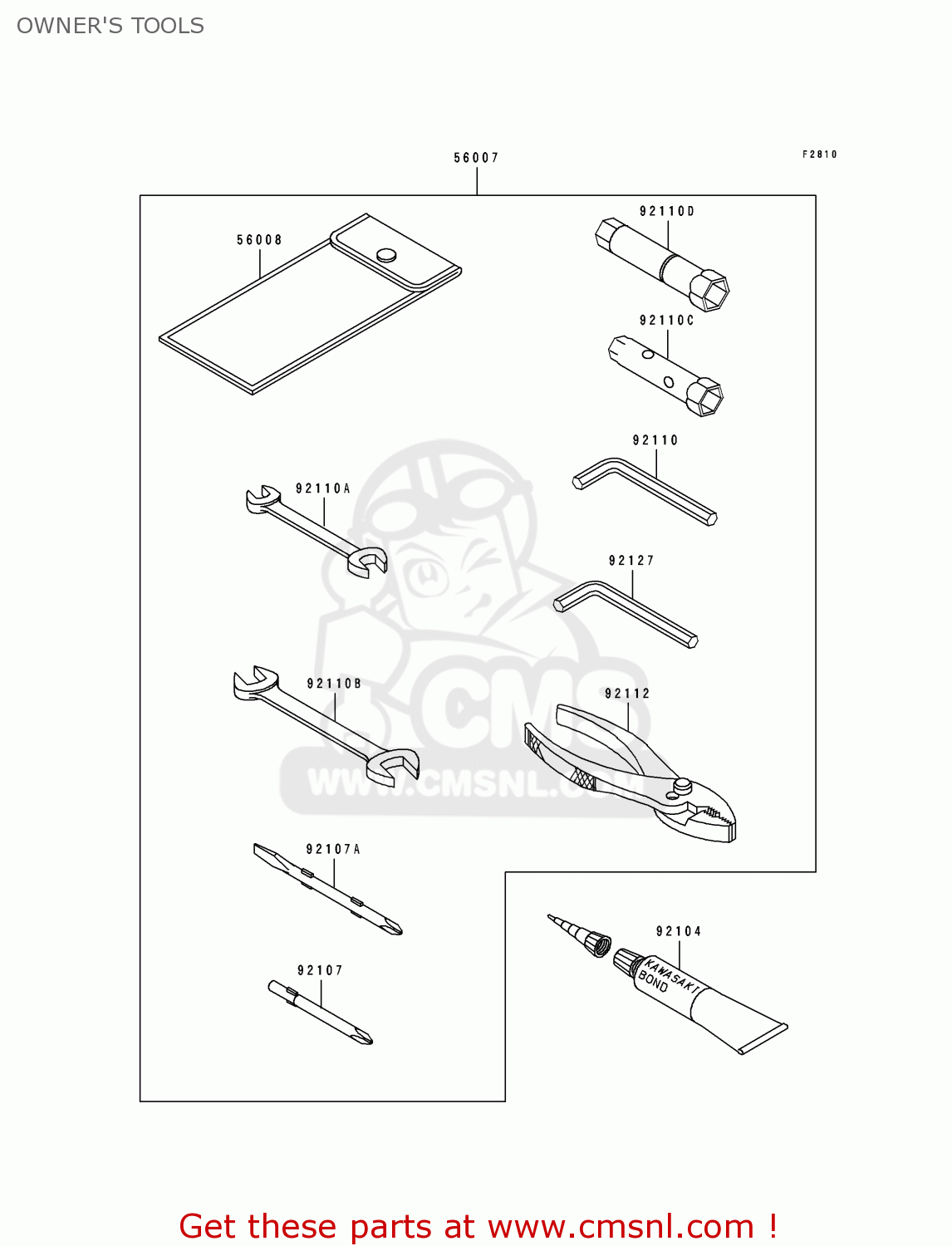

Owner's tools diagram KLX650C1 1993 USA CALIFORNIA

OWNER'S TOOLS KLX650C1 1993 USA CALIFORNIA
OWNER'S TOOLS KLX650C1 1993 USA CALIFORNIA
OWNER'S TOOLS KLX650C1 1993 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
56007
560071375
ref: 56007
TOOL-KIT
€ 90.00
56008
560081007
ref: 56008
BAG, TOOL
560081007
€ 16.50
92104
92104002
ref: 92104
LIQUID GASKET
€ 69.50
92107
92107005
ref: 92107
SCREW DRIVER-#3 PHLIP
€ 7.00
92107A
921071051
ref: 92107A
TOOL-DRIVER
€ 6.50
92110
921101015
ref: 92110
WRENCH,ALLEN
€ 7.50
92110A
921101152
ref: 92110A
TOOL-WRENCH,OPEN END,
921101152
€ 13.50
92110B
921101153
ref: 92110B
TOOL-WRENCH,OPEN END,
921101153
€ 12.50
92110C
921101160
ref: 92110C
TOOL-WRENCH,BOX,8&10M
921101160
€ 11.00
92110D
921101170
ref: 92110D
TOOL-WRENCH,BOX,18MM
921101170
€ 13.50
92112
92112003
ref: 92112
PLIERS,150MM
92112003
€ 18.00
92127
92127003
ref: 92127
TOOL-WRENCH,ALLEN,6MM
92127003
€ 7.50
