CYLINDER HEAD
KLX650C1 1993 USA CALIFORNIA

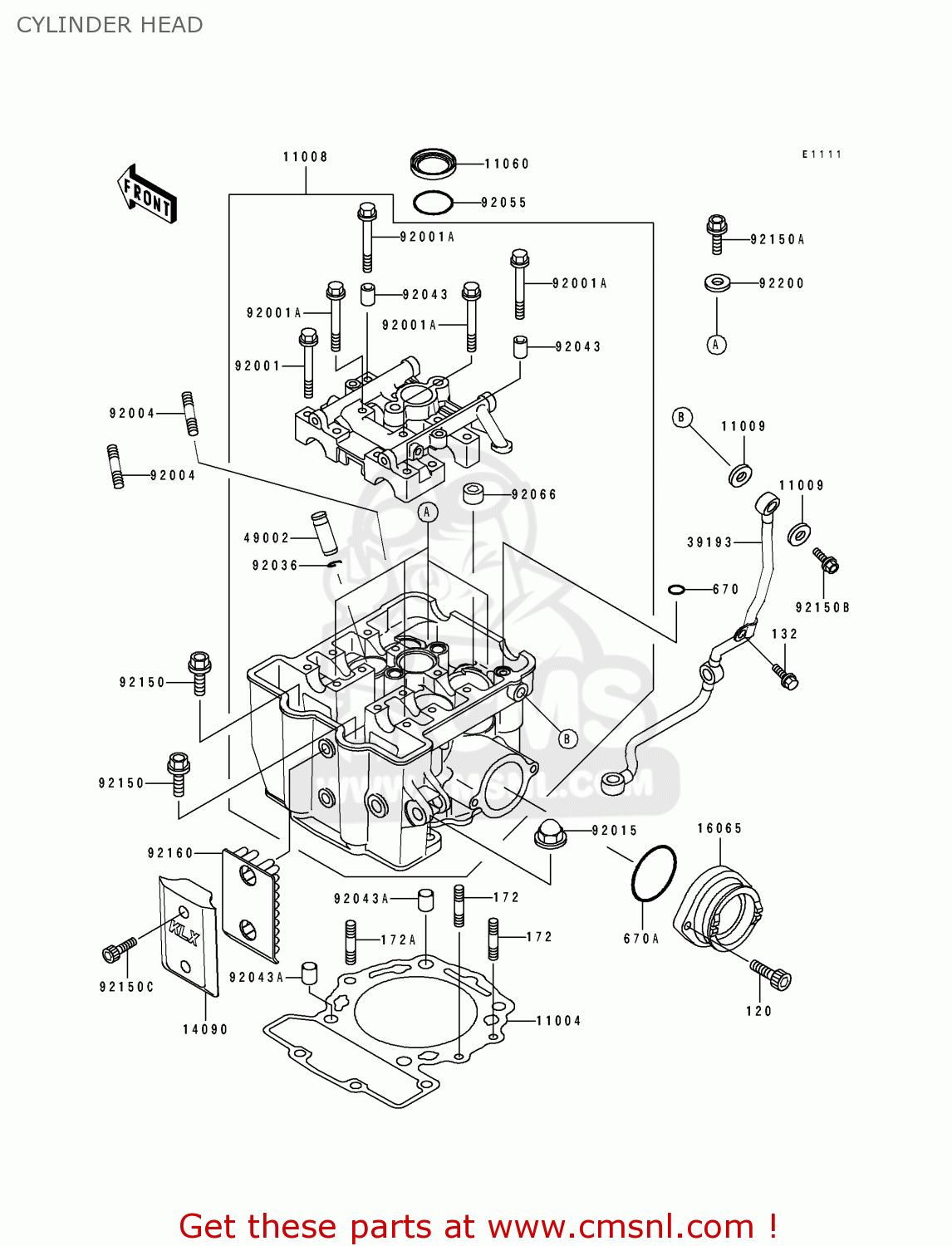

Cylinder head diagram KLX650C1 1993 USA CALIFORNIA
CYLINDER HEAD KLX650C1 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120Z0620
ref: 120
BOLT-SOCKET,6X20
€ 3.00
132
132Y0610
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
172
172G0622
ref: 172
STUD,6X22
€ 1.00
172A
172G0825
ref: 172A
STUD,8X25
€ 3.50
670
670D1508
ref: 670
O RING,8MM
€ 2.50
670A
670D3048
ref: 670A
O RING,48MM
€ 4.50
11004
110041253
ref: 11004
GASKET-HEAD (NAS)
€ 42.00
11008
110081275
ref: 11008
HEAD-COMP-CYLINDER
€ 767.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11060
110601297
ref: 11060
GASKET,CAP (NAS)
€ 7.50
14090
140901342
ref: 14090
COVER
€ 22.50
16065
160651104
ref: 16065
HOLDER-CARBURETOR
€ 67.50
39193
391931012
ref: 39193
PIPE-OIL
€ 93.00
49002
490021125
ref: 49002
GUIDE-VALVE
€ 19.00
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92001A
920011872
ref: 92001A
BOLT,6X46
€ 2.50
92004
920041217
ref: 92004
STUD
€ 4.00
92015
920151402
ref: 92015
NUT,8MM
€ 3.00
92036
92036023
ref: 92036
CIRCLIP,VALVE GUIDE
€ 0.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92043A
920434009
ref: 92043A
PIN,10.1X12X14
€ 4.00
92055
920551047
ref: 92055
RING-O,30MM
€ 5.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
€ 6.50
92150
921501156
ref: 92150
BOLT,SOCKET,8X30
€ 4.50
92150A
921501618
ref: 92150A
BOLT,10X225
€ 13.50
92150B
921501641
ref: 92150B
BOLT,BANJO,10X23
€ 9.50
92150C
921501714
ref: 92150C
BOLT
€ 3.00
92160
921601441
ref: 92160
DAMPER
€ 20.00
92200
922001042
ref: 92200
WASHER,10.5X19X2.3
€ 2.50
