ENGINE COVER(S)
KLX650C1 1993 USA CALIFORNIA

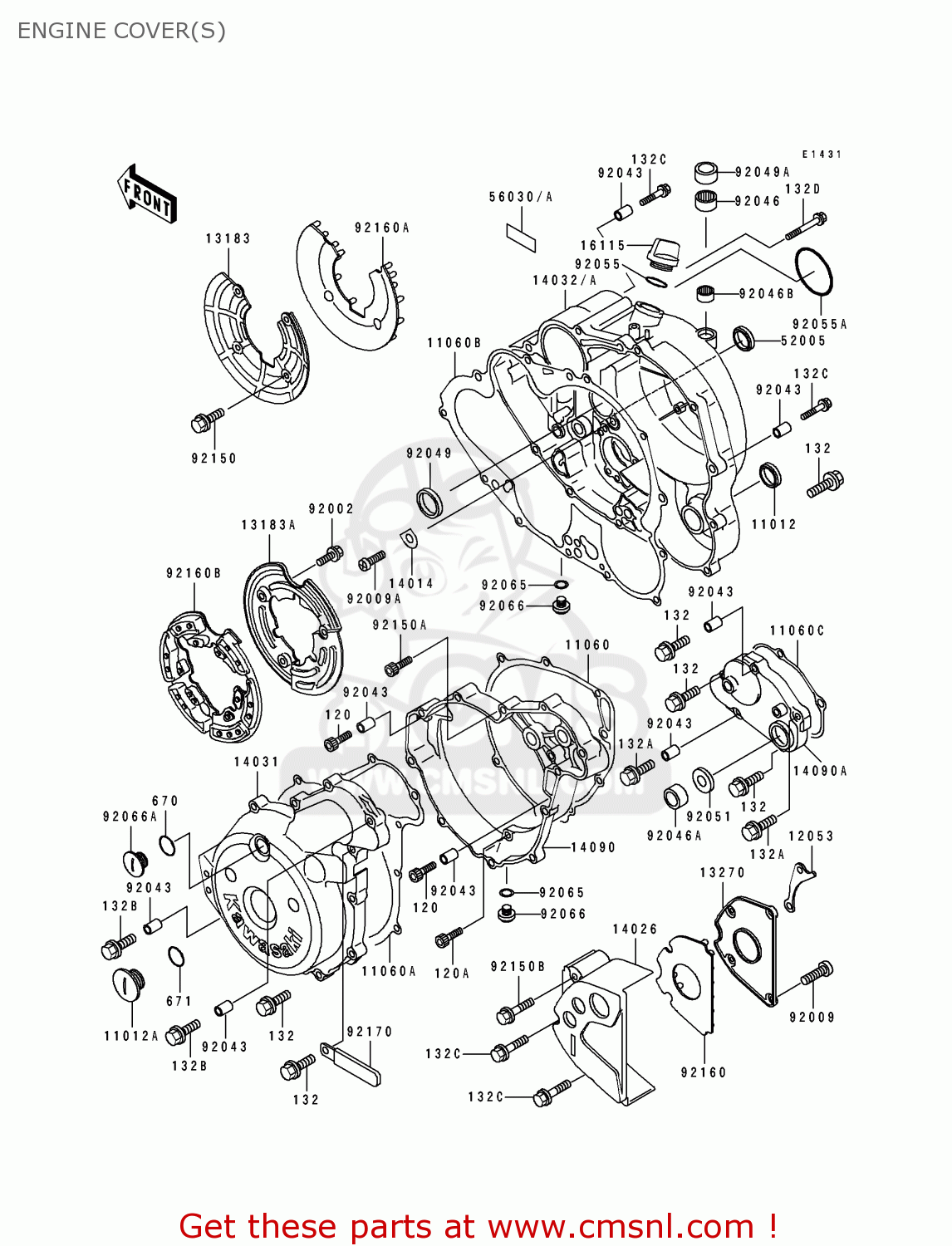

Engine cover(s) diagram KLX650C1 1993 USA CALIFORNIA
ENGINE COVER(S) KLX650C1 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11012
110121567
ref: 11012
CAP
€ 6.50
11012A
110121616
ref: 11012A
CAP
€ 4.50
11060
110601293
ref: 11060
GASKET,GENERATOR (NAS)
€ 16.00
11060A
110601313
ref: 11060A
GASKET,GENERATOR COVE (NAS)
€ 19.00
11060B
110601363
ref: 11060B
GASKET,CLUTCH COVER (NAS)
€ 25.50
11060C
110601364
ref: 11060C
GASKET,TRANSMISSION C (NAS)
€ 3.50
12053
120531334
ref: 12053
GUIDE-CHAIN
€ 3.00
13183
131831937
ref: 13183
PLATE,CLUTCH COVER (NAS)
€ 10.50
13183A
131831988
ref: 13183A
PLATE,GENERATOR COVER
€ 9.50
13270
132701285
ref: 13270
PLATE,CHAIN COVER
€ 5.50
14014
140141116
ref: 14014
PLATE-POSITION,ROD
€ 3.00
14026
140261195
ref: 14026
COVER-CHAIN
€ 39.50
14031
140311274
ref: 14031
COVER-GENERATOR
€ 211.50
14032
140321358
ref: 14032
COVER-CLUTCH
€ 385.50
14090
140901253
ref: 14090
COVER,GENERATOR,INSID
€ 153.50
14090A
140901256
ref: 14090A
COVER,TRANSMISSION
€ 48.00
16115
161151053
ref: 16115
CAP-OIL FILLER
€ 12.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
€ 17.50
56030
560301158
ref: 56030
LABEL,OIL
€ 2.50
92002
920021944
ref: 92002
BOLT,6X8
€ 3.00
92009
920091155
ref: 92009
SCREW,TAPPING,4X8
€ 2.00
92009A
920091563
ref: 92009A
SCREW,6X10
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92046A
920461148
ref: 92046A
BEARING-NEEDLE,HK1312
€ 19.50
92046B
920461217
ref: 92046B
BEARING-NEEDLE,6BTM10
€ 18.00
92049
920491158
ref: 92049
SEAL-OIL,SCY 15X30X7
€ 16.50
92049A
920491271
ref: 92049A
SEAL, OIL
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055012
ref: 92055
'O' RING 18MM
€ 1.00
92055A
920551221
ref: 92055A
RING-O,62.6X66X3.1
€ 6.00
92065
92065073
ref: 92065
GASKET,12.5X18X1,DRAI (NAS)
€ 2.50
92066
920661222
ref: 92066
PLUG,12X10
€ 8.00
92066A
920661380
ref: 92066A
PLUG,DRAIN
€ 3.50
92150
921501406
ref: 92150
BOLT
€ 2.00
92150A
921501654
ref: 92150A
BOLT
€ 3.00
92150B
921501830
ref: 92150B
BOLT,6X40
€ 3.50
92160
921601389
ref: 92160
DAMPER,CHAIN COVER
€ 10.00
120
120P0635
ref: 120
BOLT,SOCKET,6X35
€ 1.50
120A
120Z0625
ref: 120A
BOLT-SOCKET,6X25
€ 3.00
132
132Y0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
132A
132Y0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132Y0635
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132Y0640
ref: 132C
BOLT-FLANGED-SMALL
€ 3.50
132D
132Y0680
ref: 132D
BOLT-FLANGED-SMALL
€ 3.50
670
670B2018
ref: 670
O RING,18MM
€ 1.00
671
671B2540
ref: 671
O RING,40MM
€ 4.00
92160A
921601390
ref: 92160A
DAMPER,CLUTCH COVER
€ 26.50
92160B
921601411
ref: 92160B
DAMPER,GENERATOR COVE
€ 24.00
92170
921701514
ref: 92170
CLAMP
€ 2.50
