IGNITION SWITCH
KLX650C1 1993 USA CALIFORNIA

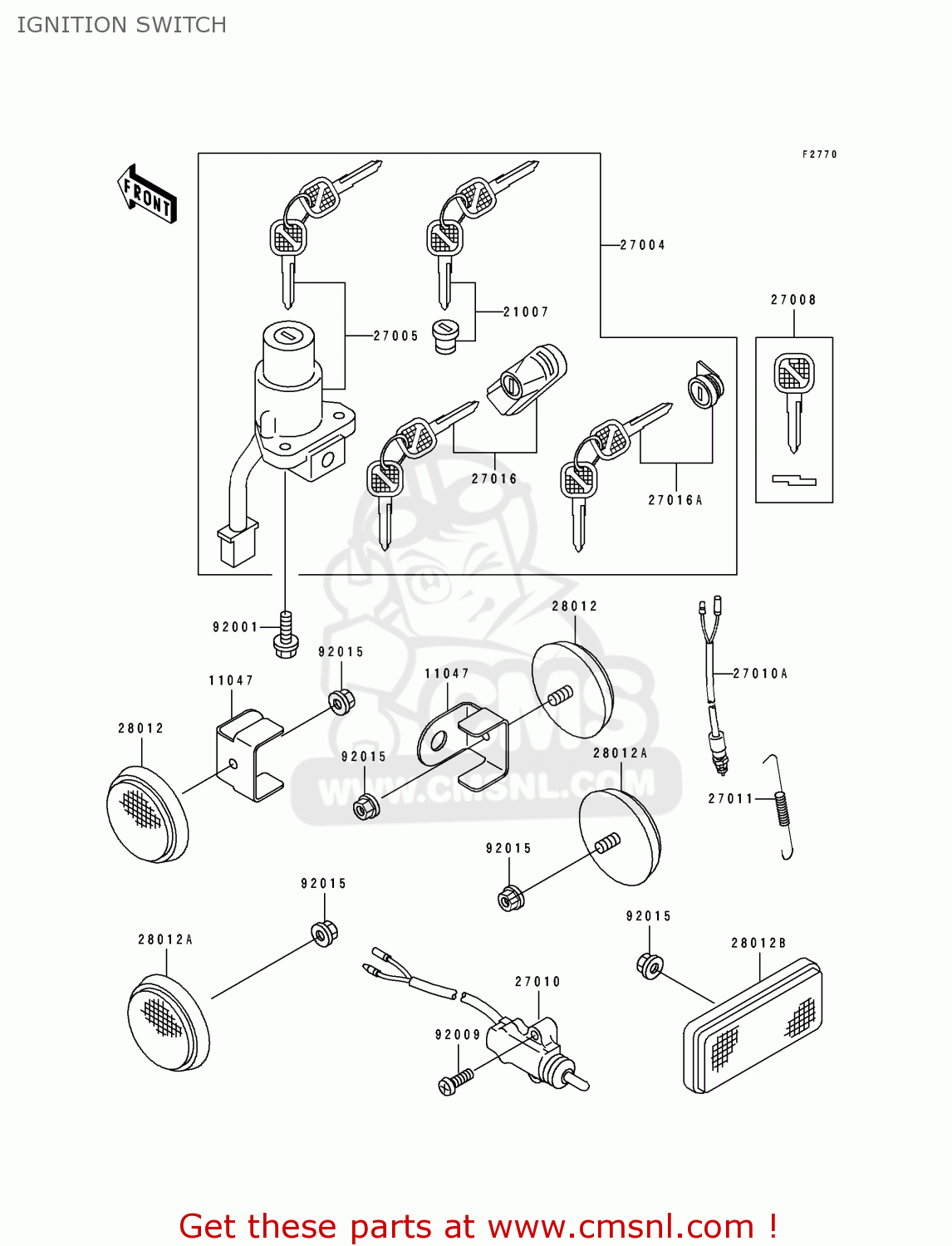

Ignition switch diagram KLX650C1 1993 USA CALIFORNIA
IGNITION SWITCH KLX650C1 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11047
110471441
ref: 11047
BRACKET,REFLECTOR
€ 5.50
21007
210075023
ref: 21007
ROTOR,LOCK,TANK CAP
€ 50.50
27004
270045443
ref: 27004
SWITCH-ASSY
€ 169.50
27005
270051170
ref: 27005
SWITCH-ASSY-IGNITION
€ 107.00
27008
270081105
ref: 27008
KEY-LOCK,BLANK
€ 12.50
27010
270101264
ref: 27010
SWITCH,SIDE STAND
€ 23.00
27010A
270101323
ref: 27010A
SWITCH,BRAKE LAMP
€ 36.50
27011
27011021
ref: 27011
SPRING,BRAKE LAMP SW
€ 15.50
27016
270165110
ref: 27016
LOCK ASSY HELMET
€ 73.50
27016A
270165193
ref: 27016A
LOCK-ASSY,TOOL BOX
€ 50.00
28012
28012016
ref: 28012
REFLECTOR REFLEX
€ 16.00
28012A
280121067
ref: 28012A
REFLECTOR-REFLEX
€ 15.50
28012B
280121077
ref: 28012B
REFLECTOR-REFLEX
€ 16.00
92001
920011465
ref: 92001
BOLT
€ 3.00
92009
920091459
ref: 92009
SCREW
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
