STARTER MOTOR
KLX650C1 1993 USA CALIFORNIA

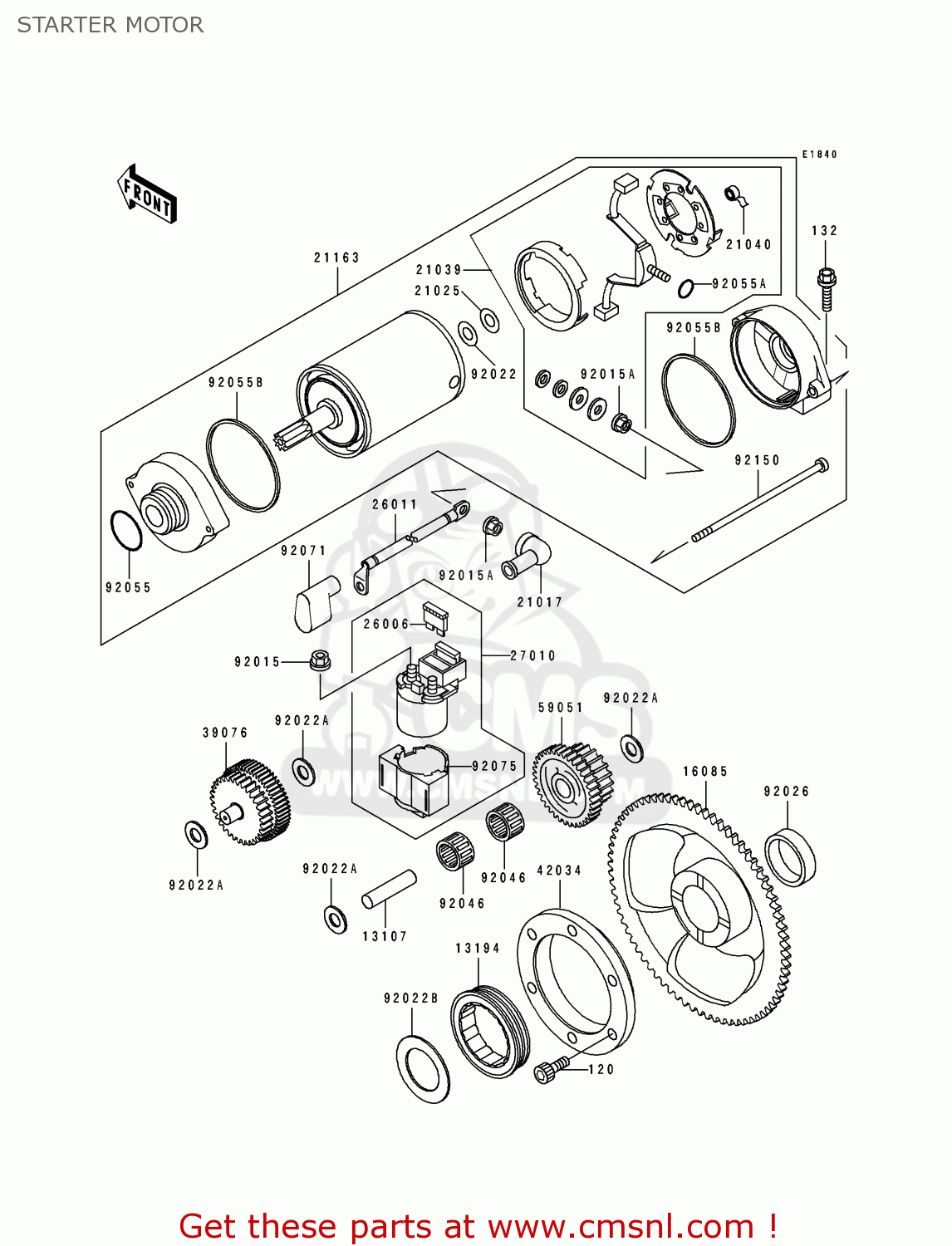

Starter motor diagram KLX650C1 1993 USA CALIFORNIA
STARTER MOTOR KLX650C1 1993 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120P0818
ref: 120
BOLT-SOCKET
€ 2.00
132
132Y0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
13107
131071135
ref: 13107
SHAFT,IDLER
€ 13.00
13194
131941089
ref: 13194
CLUTCH-ONEWAY
€ 90.50
16085
160851259
ref: 16085
GEAR,ONEWAY CLUTCH,85
€ 235.00
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391060
ref: 21039
BRUSH,CARBON
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
€ 5.50
21163
211631217
ref: 21163
STARTER-ELECTRIC
€ 531.00
26006
260061051
ref: 26006
FUSE,20A
€ 3.00
26011
260111583
ref: 26011
WIRE-LEAD,STARTER MOT
€ 34.00
27010
270101243
ref: 27010
SWITCH
€ 104.00
39076
390761065
ref: 39076
LIMITER,STARTER IDLE
€ 135.00
42034
420341094
ref: 42034
COUPLING
€ 116.00
59051
590511298
ref: 59051
GEAR-SPUR,39T&20T
€ 85.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151476
ref: 92015A
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92022A
920221649
ref: 92022A
WASHER,10.2X20X0.5
€ 2.50
92022B
920221650
ref: 92022B
WASHER,32.2X50X1.0
€ 4.50
92026
920261426
ref: 92026
SPACER,32.1X38.8X10.1
€ 10.00
92046
920461134
ref: 92046
BEARING-NEEDLE,K10X14
€ 17.00
92055
920551276
ref: 92055
RING-O
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
€ 6.50
92071
920711130
ref: 92071
GROMMET,TERMINAL
€ 7.00
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
€ 14.00
92150
921501693
ref: 92150
BOLT
€ 6.50
