HEADLIGHT(S)

KLX650C1 1993 USA CALIFORNIA

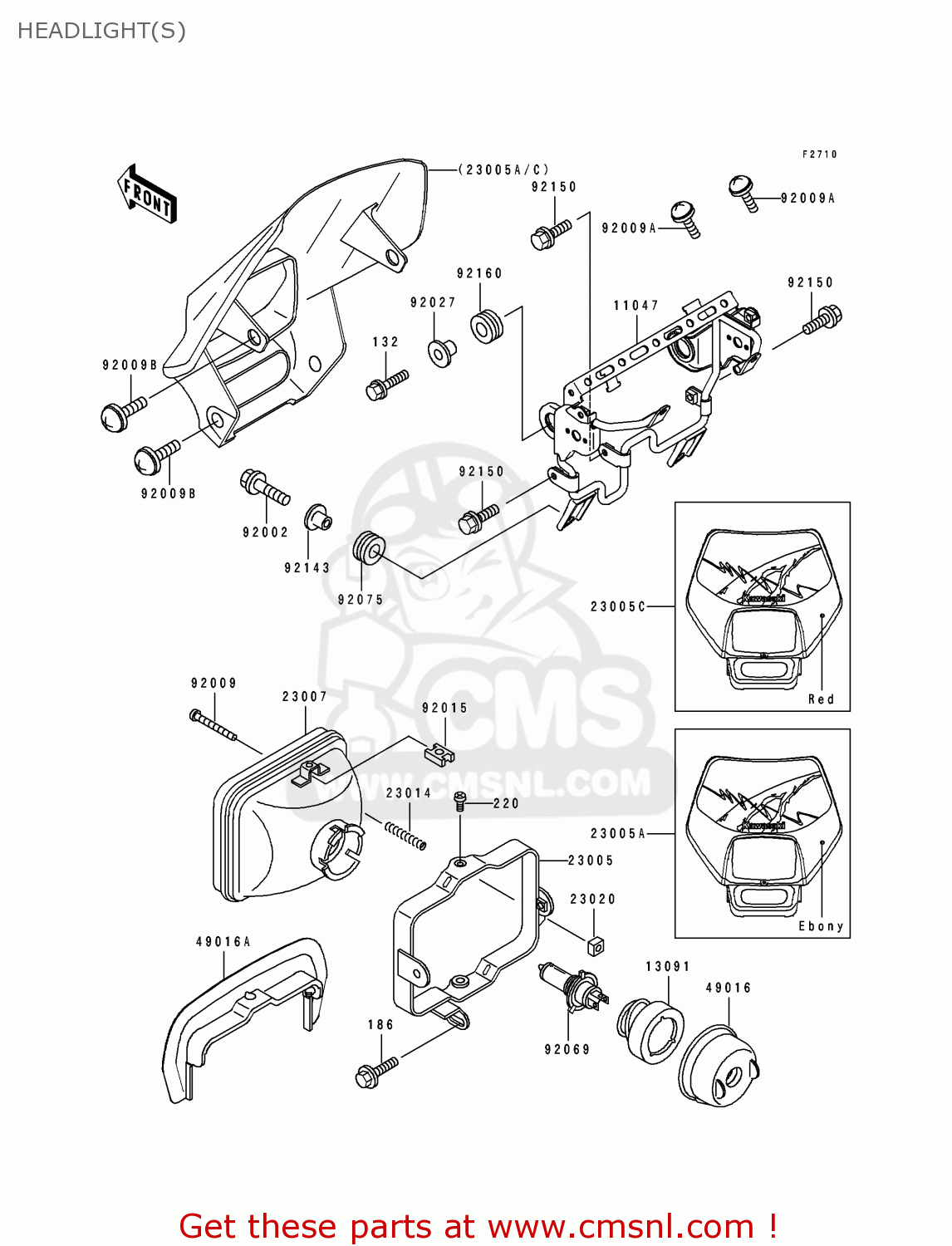

Headlight(s) diagram KLX650C1 1993 USA CALIFORNIA

HEADLIGHT(S) KLX650C1 1993 USA CALIFORNIA
HEADLIGHT(S) KLX650C1 1993 USA CALIFORNIA
HEADLIGHT(S) KLX650C1 1993 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
132
132G0825
ref: 132
BOLT-FLANGED-SMALL
132G0825
€ 2.50
186
186B0614
ref: 186
BOLT-UPSET-WP
€ 0.50
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
11047
110471881
ref: 11047
BRACKET,HEAD LAMP
110471881
€ 89.50
13091
130911558
ref: 13091
HOLDER,SOCKET
130911558
€ 9.00
23005
230051052
ref: 23005
BODY-COMP-HEAD LAMP
230051052
€ 27.50
23005A
2300550206C
ref: 23005A
BODY-COMP-HEAD LAMP,E
2300550206C
€ 103.00
23007
230071280
ref: 23007
LENS-COMP,HEAD LAMP
€ 126.00
23014
23014005
ref: 23014
SPRING-FOCUS ADJUST
23014005
€ 2.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
49016
490161037
ref: 49016
COVER-SEAL,SOCKET
490161037
€ 7.50
49016A
490161160
ref: 49016A
COVER-SEAL, HEAD LAMP
490161160
€ 22.50
92002
920021262
ref: 92002
BOLT,6X22
920021262
€ 2.00
92009
920091065
ref: 92009
SCREW,4MM
920091065
€ 3.00
92009A
920091286
ref: 92009A
SCREW,6X10
920091286
€ 2.50
92009B
920091288
ref: 92009B
SCREW,6X14
920091288
€ 2.00
92015
920151354
ref: 92015
NUT,5MM
920151354
€ 3.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92075
92075209
ref: 92075
DAMPER RUBBER
92075209
€ 3.00
92143
921431353
ref: 92143
COLLAR
921431353
€ 5.50
92150
921501435
ref: 92150
BOLT
921501435
€ 2.50
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
