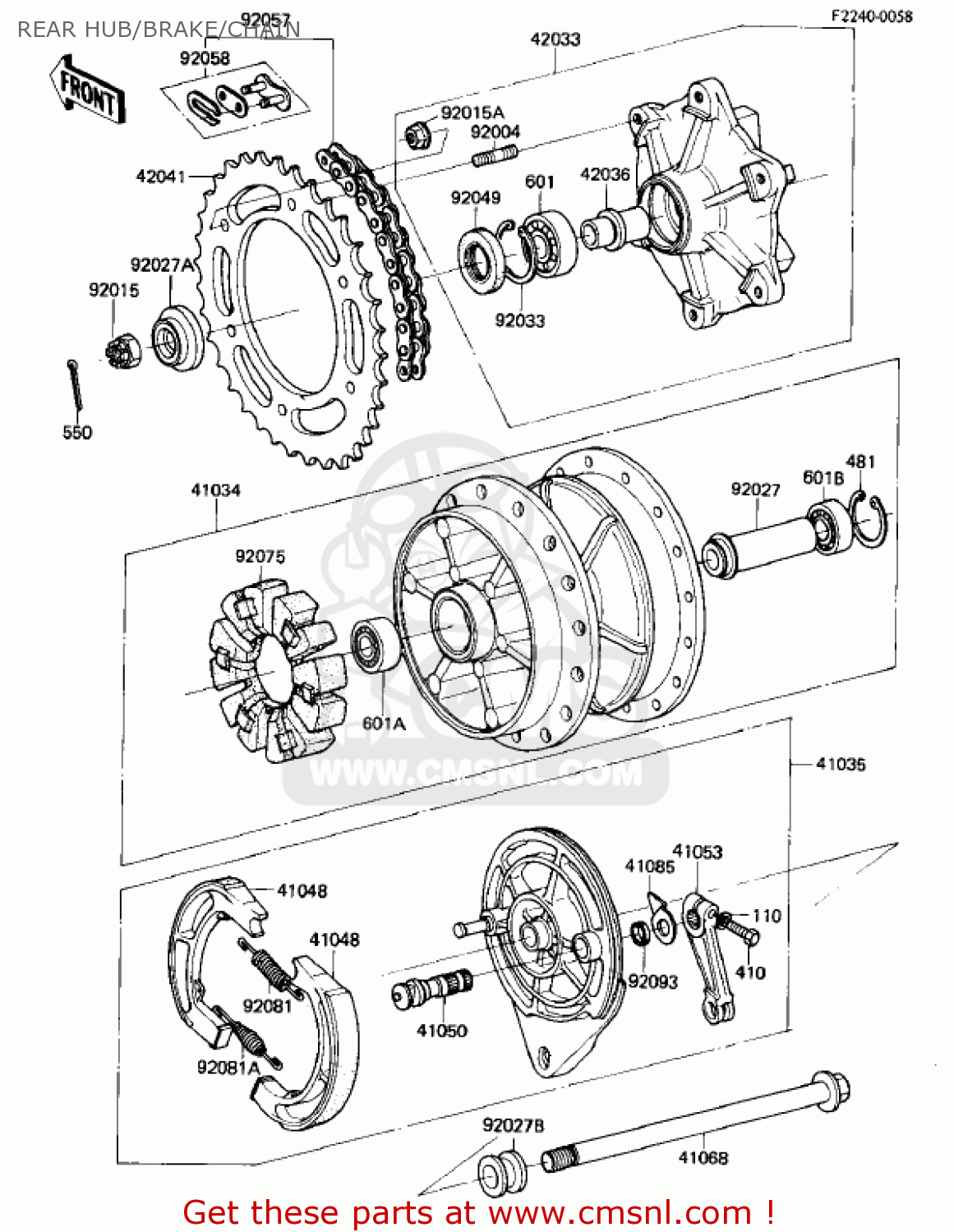

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

41034

410341015
ref: 41034

DRUM ASSY,REAR BRAKE

€ 320.50

41035

410351018
ref: 41035

PANEL ASSY,RR BRAKE

€ 173.00

41048

410481012
ref: 41048

SHOE,BRAKE (MCA)

€ 26.00

41050

410501011
ref: 41050

CAM-BRAKE

€ 25.00

41053

410531014
ref: 41053

LEVER-BRAKE CAM

€ 39.50

41068

410681104
ref: 41068

AXLE,RR

€ 30.50

41085

41085017
ref: 41085

INDICATOR,BRAKE SHOE

€ 7.50

42033

420331010
ref: 42033

COUPLING ASSY,RR HUB

€ 134.50

42036

420361020
ref: 42036

SLEEVE,RR HUB COUPLIN

€ 15.50

42041

420411053
ref: 42041

REAR SPROCKET,40T

€ 36.50

92004

920041015
ref: 92004

STUD,8X17

€ 2.50

92015

42045020
ref: 92015

NUT,14MM

€ 6.50

92015A

920151022
ref: 92015A

NUT, 8MM

€ 0.50

92027

920271099
ref: 92027

COLLAR,L=86

€ 13.00

92027A

920271100
ref: 92027A

COLLAR,AXLE,RR,L=21

€ 16.00

92027B

920271176
ref: 92027B

COLLAR,L=31

€ 10.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

92050060
ref: 92049

OIL SEAL,RR HUB BRNK

€ 12.00

92057

920571002
ref: 92057

CHAIN ASSY,DRV,JE-96L

€ 47.00

92058

920581001
ref: 92058

JOINT-CHAIN

€ 4.50

92075

920751068
ref: 92075

DAMPER,SHOCK,RR HUB

€ 34.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92081A

920811550
ref: 92081A

SPRING,BRAKE SHOE

€ 6.00

92093

41051001
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50

110

112G0622
ref: 110

BOLT-UPSET

€ 2.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

550

550D3030
ref: 550

PIN-COTTER,3.0X30

€ 1.50

601

601B6004
ref: 601

BEARING-BALL,#6004C3

€ 10.50

601A

601B6202
ref: 601A

BEARING-BALL,#6202C3

€ 14.50

601B

601B6202U
ref: 601B

BEARING-BALL,#6202UC3

€ 19.50
