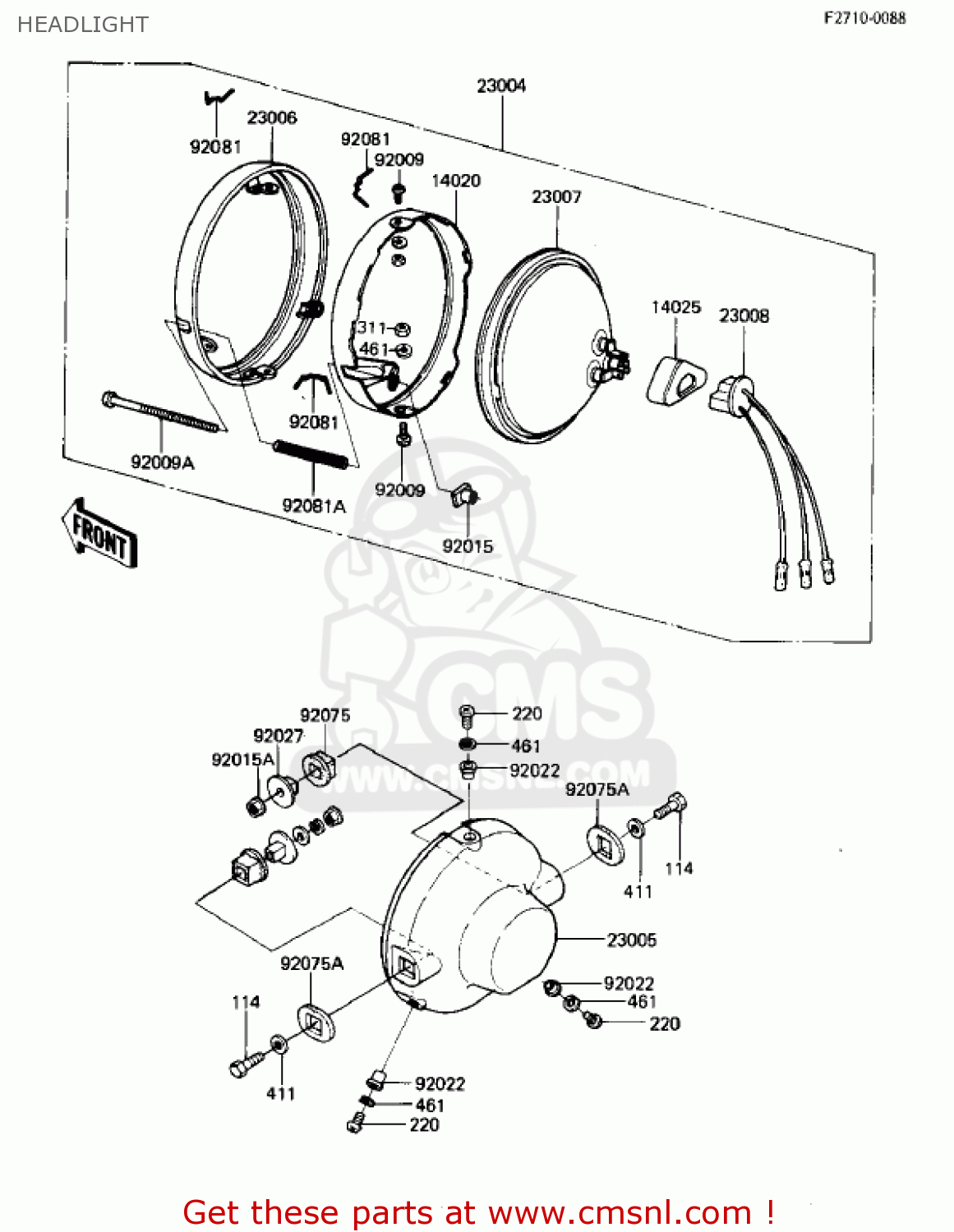

HEADLIGHT

ref

part #

description

quantity

14020

23072002
ref: 14020

RETAINER,SEALED BEAM

€ 29.50

14025

23081001
ref: 14025

COVER,HD LAMP SOCKET

€ 6.50

23004

230041018
ref: 23004

HEADLAMP,UNIT

€ 135.50

23005

2300510076Z
ref: 23005

BODY-COMP-HEAD LAMP,B

€ 71.50

23006

230061004
ref: 23006

RIM-LAMP

€ 56.00

23007

23007073
ref: 23007

SEALED BEAM UNIT

€ 229.50

23008

23008044
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.00

92009

23019026
ref: 92009

SCREW,LENS FITTING

€ 3.00

92009A

23019027
ref: 92009A

SCREW,FOCUS ADJUSTING

€ 3.00

92015

23020012
ref: 92015

NUT,ADJUSTING

€ 2.50

92015A

920151014
ref: 92015A

NUT,8MM

€ 0.50

92022

23021010
ref: 92022

WASHER

€ 2.50

92027

920271105
ref: 92027

COLLAR,L=15.6

€ 4.50

92075

920751077
ref: 92075

DAMPER,HEAD LAMP

€ 3.00

92075A

920751078
ref: 92075A

DAMPER,HEAD LAMP

€ 3.00

92081

23009015
ref: 92081

SPRING,HEAD LAMP LENS

€ 3.50

92081A

23014012
ref: 92081A

SPRING,FOCUS ADJUST

€ 3.50

114

114N0830
ref: 114

BOLT-SMALL,8X30

€ 2.50

220

220B0512
ref: 220

SCREW-PAN-CROS

€ 0.50

311

311B0400
ref: 311

NUT-HEX,4MM

€ 0.50

411

411D0800
ref: 411

WASHER,PLAIN,8MM

€ 2.00

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

all assemblies
