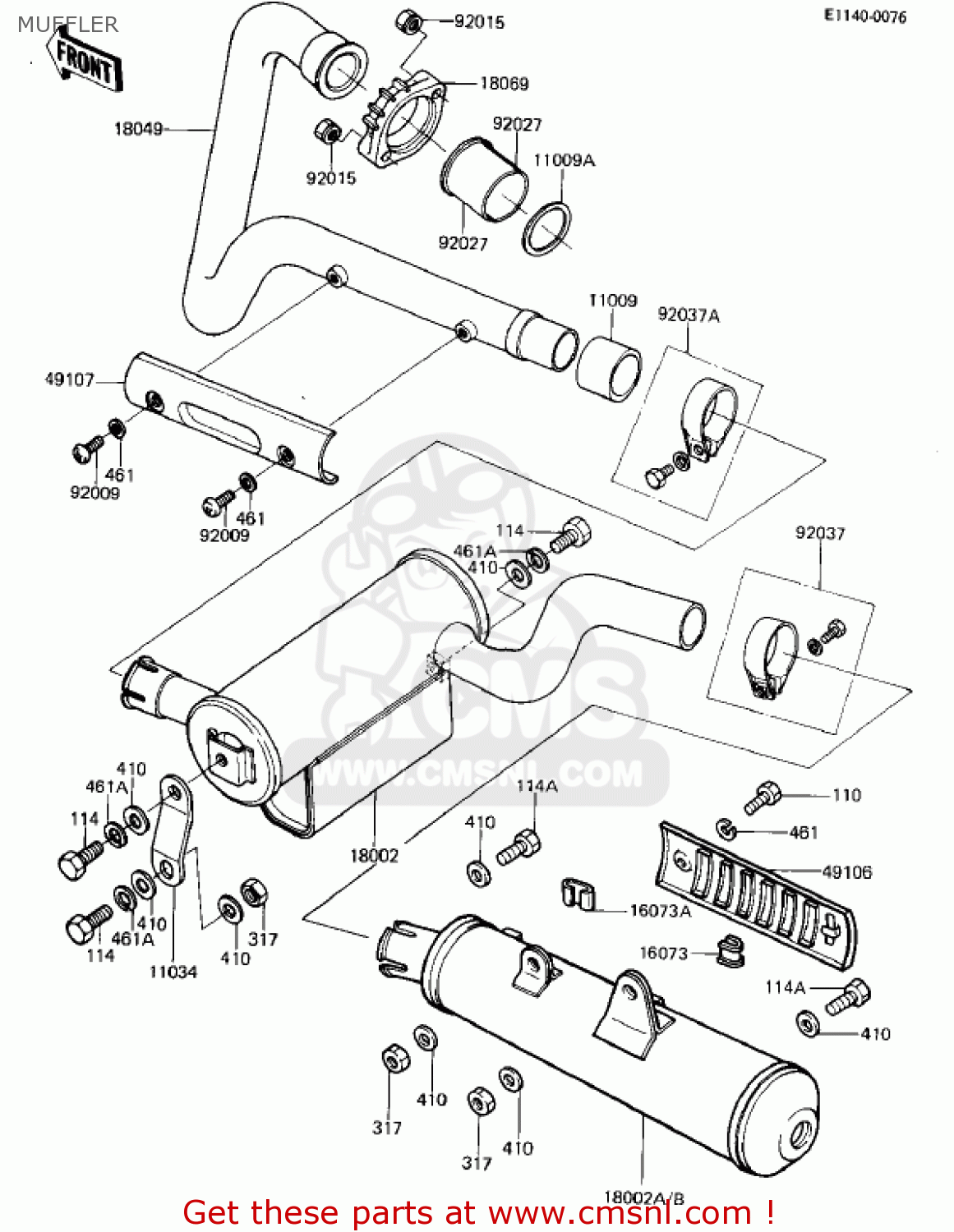

MUFFLER

ref

part #

description

quantity

11009

110601051
ref: 11009

GASKET,MUFFLER CONNEC (NAS)

€ 15.00

11009A

110091866
ref: 11009A

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

11034

110341734
ref: 11034

BRACKET

€ 3.50

16073

18065007
ref: 16073

INSULATOR,HEAT

€ 3.00

16073A

18065010
ref: 16073A

INSULATOR,HEAT

€ 2.50

18002

180021276
ref: 18002

BODY-COMP-MUFFLER

€ 235.00

18002A

180021240
ref: 18002A
CN

BODY-COMP-MUFFLER

€ 235.00

18002B

180021241
ref: 18002B
US

MUFFLER BODY,COMPLETE

€ 190.00

18049

180491172
ref: 18049

PIPE-EXHAUST,KHI E006

€ 224.50

18069

180691014
ref: 18069

HOLDER,EXHAUST PIPE

€ 13.00

49106

491061005
ref: 49106

COVER-MUFFLER

€ 28.00

49107

491071001
ref: 49107

COVER-EXHAUST PIPE

€ 31.50

92009

920091054
ref: 92009

SCREW

€ 2.00

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92027

92027264
ref: 92027

COLLAR, EXHAUST PIPE

€ 3.00

92037

920371223
ref: 92037

CLAMP

€ 8.50

92037A

920371243
ref: 92037A

CLAMP,37MM

€ 18.00

110

112G0610
ref: 110

BOLT,6X10

€ 0.50

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

114A

115G0820
ref: 114A

BOLT,8X20

€ 2.00

317

317G0800
ref: 317

NUT-HEX-SMALL,8MM

€ 0.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50

all assemblies
