IGNITION/GENERATOR/REGULATOR

KL250A5 KLR250 1982 USA CANADA

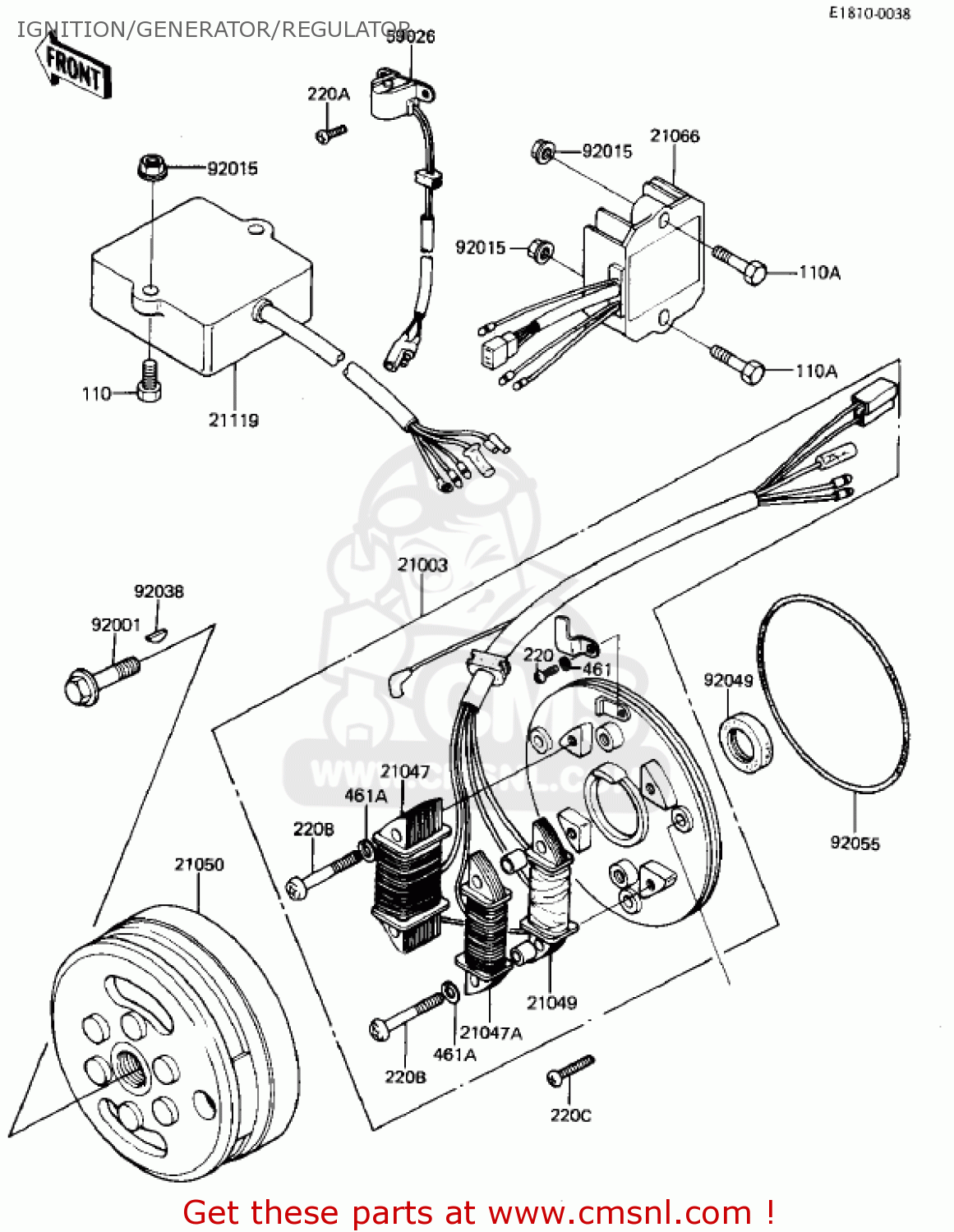

Ignition/generator/regulator diagram KL250A5 KLR250 1982 USA CANADA

IGNITION/GENERATOR/REGULATOR KL250A5 KLR250 1982 USA CANADA
IGNITION/GENERATOR/REGULATOR KL250A5 KLR250 1982 USA CANADA
IGNITION/GENERATOR/REGULATOR KL250A5 KLR250 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
21003
210031034
ref: 21003
STATOR ASSY,MAGNETO
€ 329.50
21047
210471011
ref: 21047
COIL-LIGHTING
210471011
€ 86.00
21047A
210471012
ref: 21047A
COIL-LIGHTING
210471012
€ 86.00
21049
210491008
ref: 21049
COIL-EXCITING
€ 75.50
21050
210501017
ref: 21050
FLYWHEEL,MAGNETO
€ 396.50
21066
210661010
ref: 21066
REGULATOR-VOLTAGE
210661010
€ 164.50
21119
211191006
ref: 21119
IGNITER
211191006
€ 307.00
59026
590261005
ref: 59026
COIL-PULSING
€ 114.50
92001
920011201
ref: 92001
BOLT,ROTOR,10X40
920011201
€ 7.00
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92038
92038001
ref: 92038
WOODRUFF KEY
92038001
€ 3.00
92049
920491004
ref: 92049
OIL SEAL,S-27408-LHS
920491004
€ 7.00
92055
920551006
ref: 92055
RING-O,MAGNETO BASE
920551006
€ 5.50
110
112B0614
ref: 110
BOLT-UPSET 6X14
112B0614
€ 2.50
110A
112G0625
ref: 110A
BOLT-UPSET,6X25
112G0625
€ 4.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
220A
220B0508
ref: 220A
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
220B
220B0535
ref: 220B
SCREW-PAN-CROS
220B0535
€ 2.00
220C
220B0625
ref: 220C
SCREW-PAN HEAD,6X25
220B0625
€ 1.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
461F0400
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
461F0500
€ 0.50
