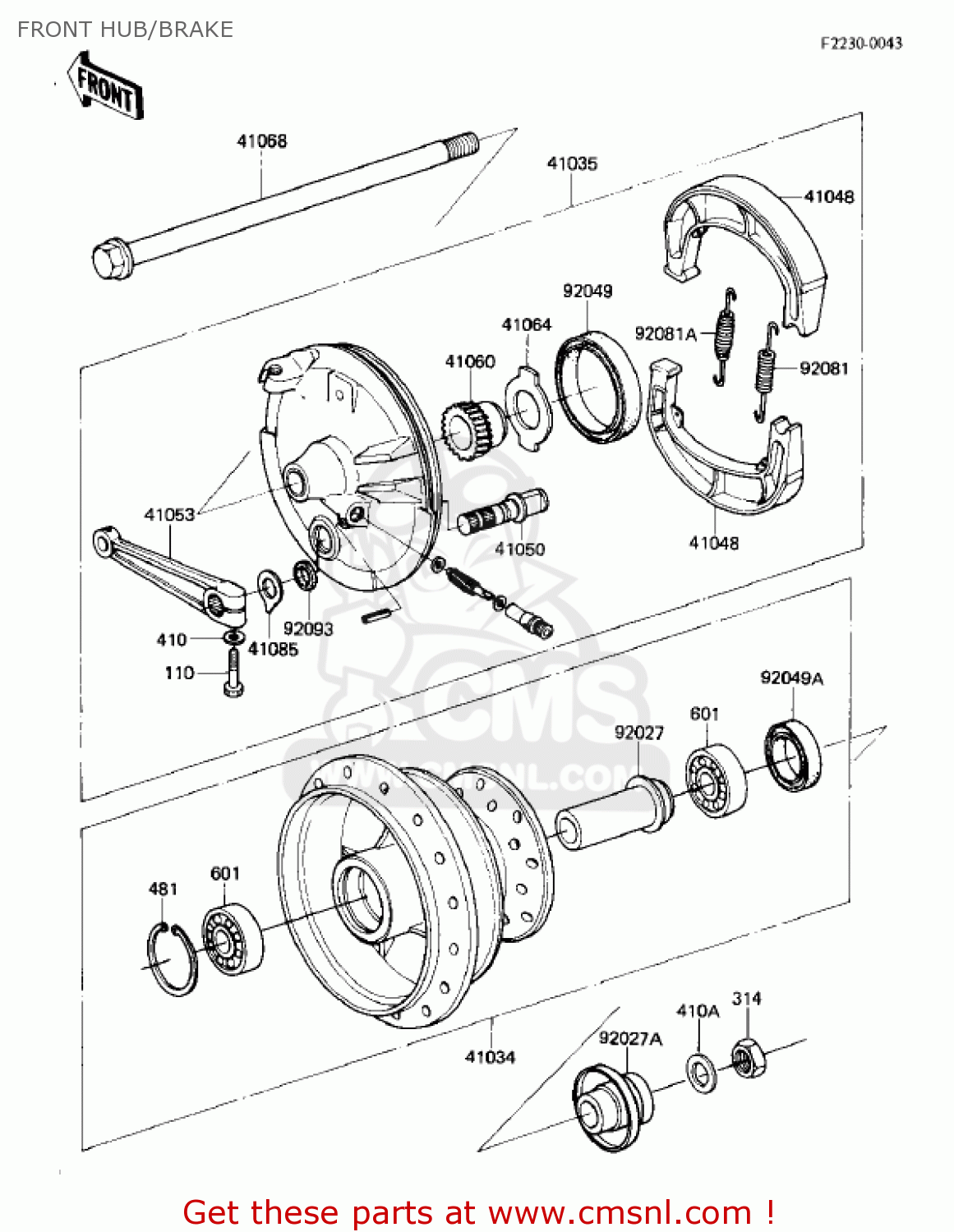

FRONT HUB/BRAKE

ref

part #

description

quantity

41034

410341014
ref: 41034

DRUM ASSY,FRONT BRAKE

€ 201.50

41035

410351045
ref: 41035

PANEL ASSY,FRONT BRAK

€ 191.00

41048

41048015
ref: 41048

SHOE,BRAKE (MCA)

€ 14.50

41050

410501010
ref: 41050

CAM,BRAKE,FRONT

€ 17.00

41053

410531012
ref: 41053

LEVER-BRAKE CAM

€ 33.50

41060

410601017
ref: 41060

GEAR,SPEEDOMETER,24T

€ 14.00

41064

41064006
ref: 41064

RECEIVER-SPEEDOMETER

€ 4.50

41068

410681037
ref: 41068

AXLE,RR,12X221

€ 36.00

41085

410851003
ref: 41085

INDICATOR,BRAKE SHOE

€ 7.50

92027

920271097
ref: 92027

COLLAR,L=34

€ 10.00

92027A

920271098
ref: 92027A

COLLAR,FRONT AXLE

€ 13.00

92049

92050010
ref: 92049

OIL SEAL-F BRK PANEL

€ 13.00

92049A

92050059
ref: 92049A

OIL SEAL,FR BK DRUM

€ 13.00

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92081A

920811550
ref: 92081A

SPRING,BRAKE SHOE

€ 6.00

92093

41051001
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50

110

112G0625
ref: 110

BOLT-UPSET,6X25

€ 4.00

314

314B1200
ref: 314

NUT-HEX-FINE

€ 1.00

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

410A

410B1200
ref: 410A

WASHER-PLAIN-SMALL,12

€ 0.50

481

481J3700
ref: 481

CIRCLIP-TYPE-C,37MM

€ 1.50

601

601B6301
ref: 601

BEARING-BALL,#6301C3

€ 13.00

all assemblies
