FRONT FORK
KL250A5 KLR250 1982 USA CANADA

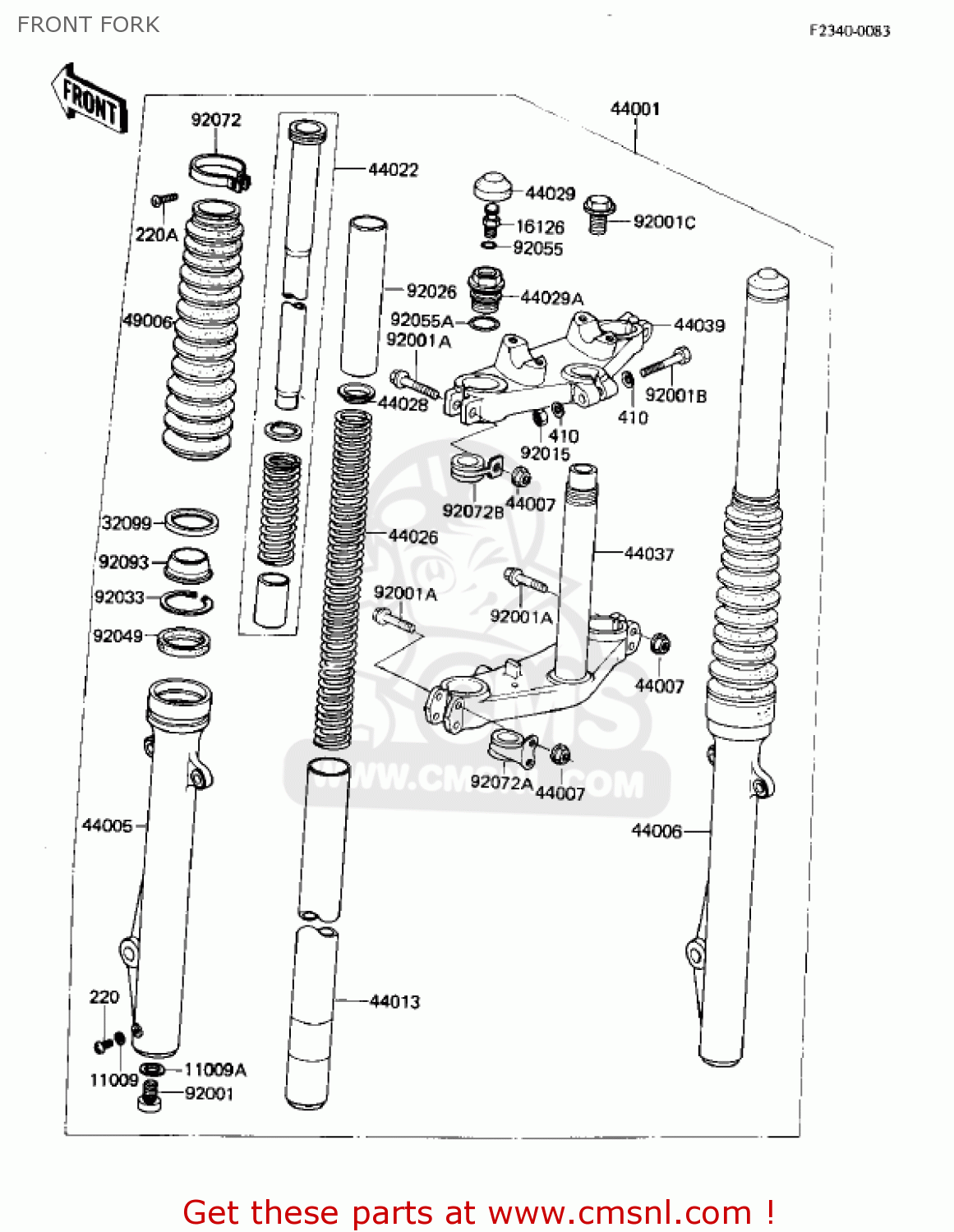

Front fork diagram KL250A5 KLR250 1982 USA CANADA
FRONT FORK KL250A5 KLR250 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
16126
161261003
ref: 16126
VALVE,AIR
€ 22.50
32099
320991012
ref: 32099
CASE,DUST SHIELD
€ 6.50
44001
440011434
ref: 44001
FORK-FRONT
€ 1,343.00
44005
440051026
ref: 44005
TUBE.L.H,FORK OUTER
€ 236.50
44006
440061026
ref: 44006
PIPE-RIGHT FORK OUTER
€ 277.00
44007
440071002
ref: 44007
NUT,8M/M
€ 2.00
44013
440131093
ref: 44013
TUBE FORK INNER
€ 140.00
44022
440221022
ref: 44022
CYLINDER ASSY,FORK
€ 64.50
44026
440261033
ref: 44026
SPRING,FORK INNER
€ 18.50
44028
44028033
ref: 44028
GUIDE-FORK SPRING
€ 6.00
44029
440291009
ref: 44029
SEAT-FORK SPRING
€ 4.00
44029A
440291011
ref: 44029A
SEAT-FORK SPRING
€ 46.00
44037
440371023
ref: 44037
STEM,STEERING
€ 241.00
44039
440391019
ref: 44039
HEAD,STEERING STEM
€ 173.50
49006
490061009
ref: 49006
BOOTS,FORK
€ 49.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
920011205
ref: 92001A
BOLT,FLANGED,8X45
€ 5.50
92001B
920021168
ref: 92001B
BOLT, 8X50
€ 3.00
92001C
920011316
ref: 92001C
BOLT,FLANGED,14X20
€ 10.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92026
920261053
ref: 92026
SPACER,FORK INNER SPR
€ 6.50
92033
920331100
ref: 92033
RING-SNAP,FORK OIL SE
€ 9.50
92049
920491009
ref: 92049
OIL SEAL,FORK OUTER
€ 16.00
92055
920551018
ref: 92055
RING-O,AIR VALVE
€ 2.50
92055A
920551051
ref: 92055A
ORING,FORK TOP CAP
€ 3.50
92072
920721008
ref: 92072
BAND,BOOTS
€ 7.50
92072A
920721027
ref: 92072A
BAND,CABLE
€ 12.50
92072B
920721045
ref: 92072B
BAND,CABLE
€ 12.00
92093
920931036
ref: 92093
SEAL,FORK OUTER
€ 9.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0420
ref: 220A
SCREW-PAN-CROS
€ 2.00
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
